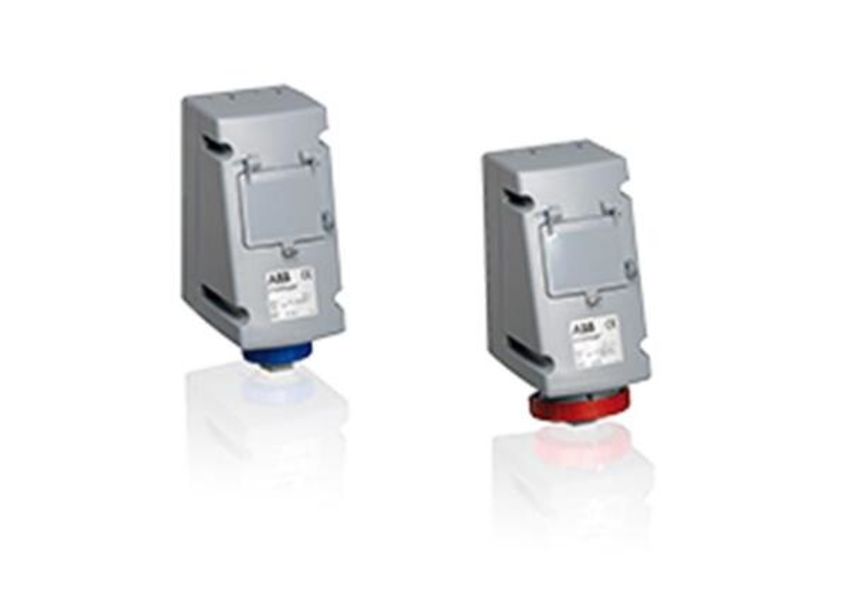

- Description: Switched interlocked socket-outlet with RCD, 9h, 30mA, 32A, IP67, 3P+N+E
- Product ID: 2CMA168100R1000
- Extended Product Type: 2CMA168100R1000
- Product Net Weight: 1.8 kg
- Product Net Width: 130 mm
- Product Net Height: 375 mm
- Product Net Depth: 375 mm
- Product Main Type: MPR
- Product Name: Industrial Switched Interlocked Socket Outlet
- Degree of Protection: IP67
- Standards: IEC 60 309-1, -2, -4
- Number of Poles: 5
- Rated Current (I<sub>n</sub>): 32 A
- Function: Switched interlocked socket outlet with RCD, 30 mA
- Color: Blue
- Suitable For: Switched Interlocked Socket Outlets with RCD
- Product Net Length: 182 mm
- Rated Voltage (U<sub>r</sub>): 200 250 V
- Country of Origin: Czech Republic (CZ)
- Frequency (<i>f</i>): 50 Hz
- Enclosure Material: Thermoplastic
- Environmental Information: 2CMC700001D0002
- Protection Type: Watertight
- Cable Cross-Section: 2.5 10 mm
- Rated Residual Current: 30mA
- Cable Outlets Per Side: 2xØ25
- Cable Entry Position: Top
- EAN: 7392696681001
- Minimum Order Quantity: 1 piece
- Package Level 1 Width: 143 mm
- Package Level 1 Length: 397 mm
- Package Level 1 Height: 187 mm
- Package Level 1 Gross Weight: 1.9 kg
- Package Level 1 EAN: 7392696681001
- Package Level 1 Units: 1 piece
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2007 Q1
- Declaration of Conformity - CE: 2CMC700005D0001
- RoHS Information: 2CMC700057D0001
- Additional Information: Cable entry, knock-outs 2xØ25mm
- IIT Publishing Status: Level 0 - Information enabled
- Invoice Description: Ind. P&S#432MPR9W
- Number of RCD 30mA: 1
- Number of RCDs: 1
- Object Classification Code: 2CMT005069
- RoHS Date: L23
- Suitable for Product Class: Industrial Plugs and Sockets
- E-nummer: 2466228
- UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 432MPR9W . Santa Clara Systems carries 36,856 items from ABB.
- 3-Poles+neutral+earth
- Frequency 50-60 Hz
- Color Code Blue
- Switched Interlocked Socket Outlet With Rcd
- Earthing Sleeve Position 9h
- 30ma
- Rated Current 32a
- Ip67 Watertight
