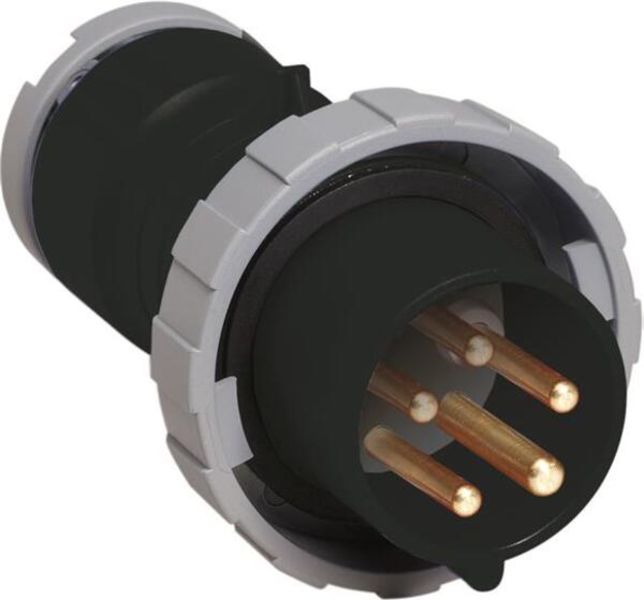

• ABB 432P7W Plug, 7h, 32A, IP67, 3P+N+E Product Image
  • Abb 432P7W Barcode

432P7W

Product Summary:

  • Product ID: 2CMA166526R1000
  • Extended Product Type: 2CMA166526R1000
  • Product Net Weight: 0.405 kg
  • Product Net Width: 101 mm
  • Product Net Height: 101 mm
Let Us Find It

Current response time:

10 Minutes 28 Seconds
  • Description: Plug, 7h, 32A, IP67, 3P+N+E
  • Product ID: 2CMA166526R1000
  • Extended Product Type: 2CMA166526R1000
  • Product Net Weight: 0.405 kg
  • Product Net Width: 101 mm
  • Product Net Height: 101 mm
  • Product Net Depth: 101 mm
  • Product Main Type: P
  • Product Name: Industrial Plug
  • Degree of Protection: IP67
  • Standards: IEC 60309-1,-2
  • Number of Poles: 5
  • Rated Current (In): 32 A
  • Function: Plug
  • Color: Black
  • Suitable For: Plugs
  • Product Net Length: 161 mm
  • Rated Voltage (Ur): 480 500 V
  • Country of Origin: Czech Republic (CZ)
  • Frequency (f): 50 Hz
  • Enclosure Material: Thermoplastic polyester (PBT)
  • Environmental Information: 2CMC700001D0002
  • Protection Type: Watertight
  • Cable Cross-Section: 2.5 6 mm
  • EAN: 7392696665261
  • Minimum Order Quantity: 1 piece
  • Package Level 1 Width: 126 mm
  • Package Level 1 Length: 211 mm
  • Package Level 1 Height: 125 mm
  • Package Level 1 Gross Weight: 0.475 kg
  • Package Level 1 EAN: 7392696665261
  • Package Level 1 Units: 1 piece
  • RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-03-01
  • Declaration of Conformity - CE: 2CMC700005D0001
  • RoHS Information: 2CMC700057D0001
  • Additional Information: Cable entry compression gland
  • IIT Publishing Status: Level 0 - Information enabled
  • Invoice Description: Ind. P&S#432P7W
  • Object Classification Code: 2CMT005069
  • RoHS Date: L23
  • Suitable for Product Class: Industrial Plugs and Sockets
  • E-nummer: 2416278
  • UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 432P7W . Santa Clara Systems carries 36,271 items from ABB.
  • 3-Poles+Neutral+Earth
  • Frequency 50-60 Hz
  • Color Code Black
  • Plug
  • Earthing Sleeve Position 7H
  • Rated Current 32A
  • Ip67 Watertight
