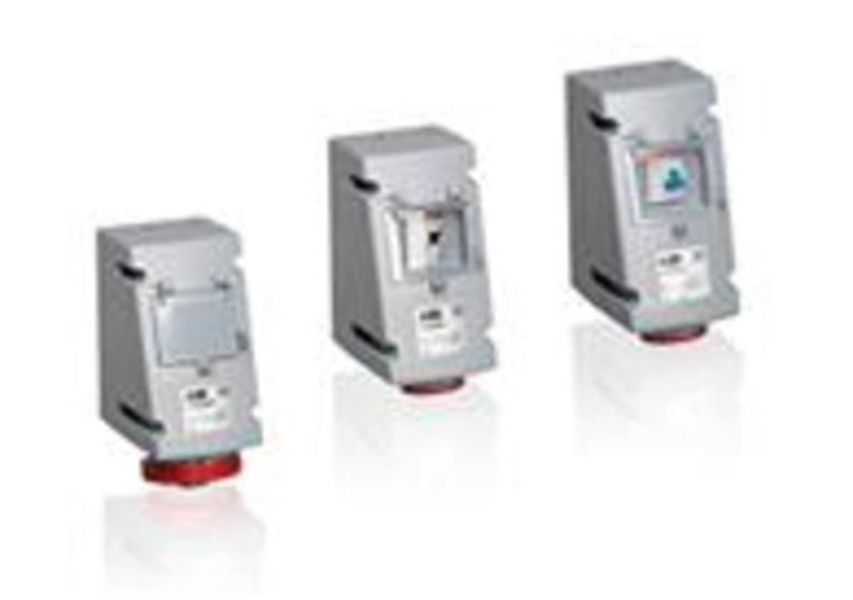

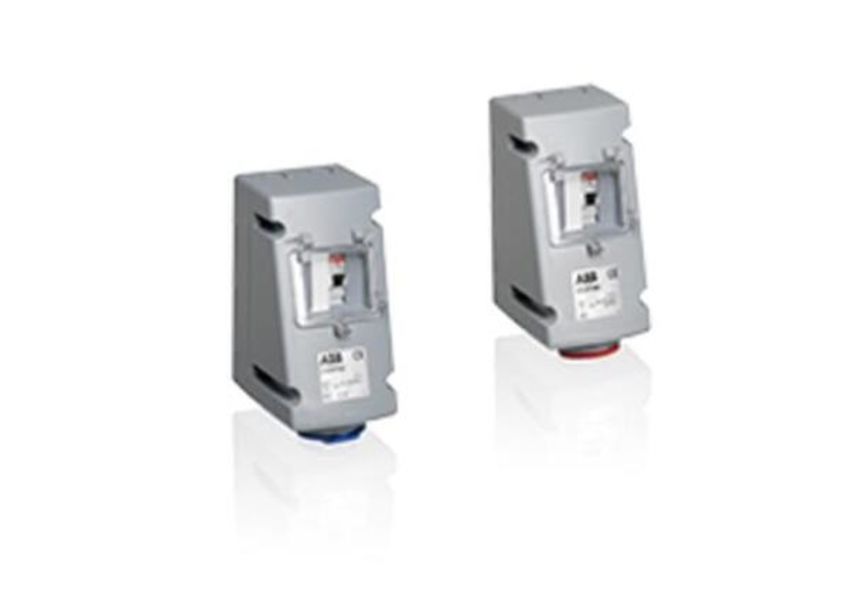

- Description: Socket-outlet with MCB, 7h, 32A, IP67, 3P+N+E
- Product ID: 2CMA168238R1000
- Extended Product Type: 2CMA168238R1000
- Product Net Weight: 1.3 kg
- Product Net Width: 120 mm
- Product Net Height: 253 mm
- Product Net Depth: 253 mm
- Product Main Type: CRPM
- Product Name: Industrial Socket Outlet with Protection
- Degree of Protection: IP67
- Standards: IEC 60309-1,-2
- Number of Poles: 4
- Rated Current (I<sub>n</sub>): 32 A
- Function: Surface socket outlet with MCB
- Color: Black
- Suitable For: Socket Outlets with MCB
- Product Net Length: 149 mm
- Rated Voltage (U<sub>r</sub>): 480 … 500 V
- Country of Origin: Czech Republic (CZ)
- Frequency (<i>f</i>): 60 Hz
- Enclosure Material: Thermoplastic
- Environmental Information: 2CMC700001D0002
- Protection Type: Watertight
- Cable Cross-Section: 2.5 … 10 mm²
- Cable Outlets Per Side: 2xØ25
- Cable Entry Position: Top
- EAN: 7392696682381
- Minimum Order Quantity: 1 piece
- Package Level 1 Width: 124 mm
- Package Level 1 Length: 337 mm
- Package Level 1 Height: 153 mm
- Package Level 1 Gross Weight: 1.41 kg
- Package Level 1 EAN: 7392696682381
- Package Level 1 Units: 1 piece
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2007 Q1
- Declaration of Conformity - CE: 2CMC700005D0001
- RoHS Information: 2CMC700057D0001
- Additional Information: Cable entry, knock-outs 2xØ25mm
- IIT Publishing Status: Level 0 - Information enabled
- Invoice Description: Ind. P&S#432RPM7W
- Object Classification Code: 2CMT005069
- RoHS Date: L23
- Suitable for Product Class: Industrial Plugs and Sockets
- E-nummer: 2466287
- UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 432RPM7W . Santa Clara Systems carries 37,096 items from ABB.
- 3-Poles+neutral+earth
- Frequency 50-60 Hz
- Color Code Black
- Socket-Outlet With Mcb
- Earthing Sleeve Position 7h
- Rated Current 32a
- Ip67 Watertight
