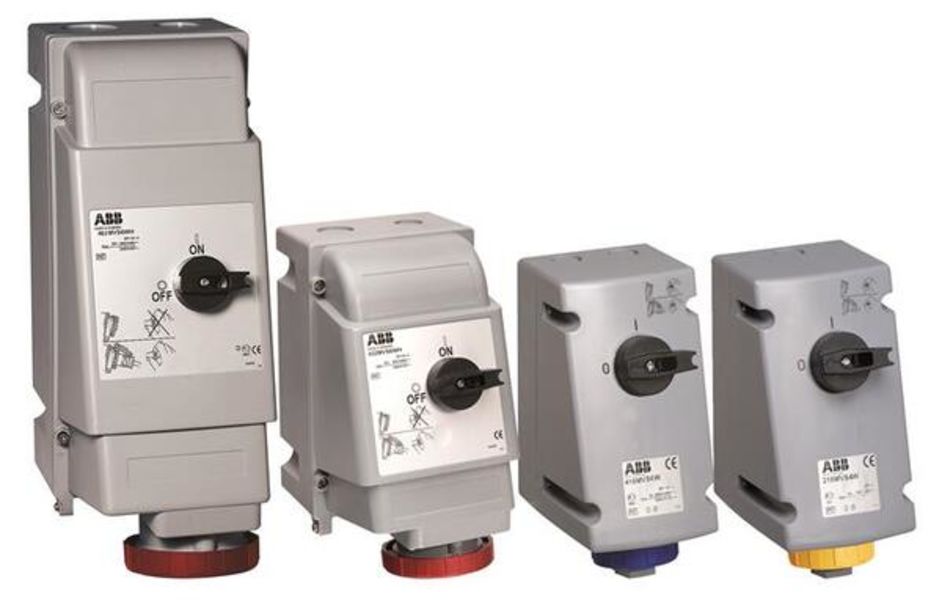

• ABB 463MVS1WH Switched interlocked socket-outlet, vertical, Heavy Duty, 1h, 63A, IP67, 3P+N+E Product Image
  • Abb 463MVS1WH Barcode

463MVS1WH

Product Summary:

  • Product ID: 2CMA162849R1000
  • Extended Product Type: 2CMA162849R1000
  • Product Net Weight: 2.5 kg
  • Product Net Width: 180 mm
  • Product Net Height: 260 mm
Let Us Find It

Current response time:

8 Minutes 1 Second
  • Description: Switched interlocked socket-outlet, vertical, Heavy Duty, 1h, 63A, IP67, 3P+N+E
  • Product ID: 2CMA162849R1000
  • Extended Product Type: 2CMA162849R1000
  • Product Net Weight: 2.5 kg
  • Product Net Width: 180 mm
  • Product Net Height: 260 mm
  • Product Net Depth: 260 mm
  • Product Main Type: CMVS
  • Product Name: Industrial Switched Interlocked Socket Outlet
  • Degree of Protection: acc. to IEC 60529 IP67
  • Standards: IEC 60 309-1, -2, -4
  • Number of Poles: 4
  • Rated Current (In): 63 A
  • Function: Switched Interlocked Socket outlet, vertical, Heavy Duty
  • Color: Gray
  • Suitable For: Switched Interlocked Socket Outlets, Vertical
  • Number of Auxiliary Contacts NO: 1
  • Product Net Length: 460 mm
  • Country of Origin: Czech Republic (CZ)
  • Mounting Type: vertical
  • Enclosure Material: Thermoplastic polyester (PBT)
  • Environmental Information: 2CMC700001D0002
  • Protection Type: Watertight heavy duty
  • Cable Cross-Section: 6 25 mm
  • Cable Outlets Per Side: 1xØ40+1xØ50 mm on top and drill marks on bottom
  • Cable Entry Position: Top
  • EAN: 7392696628495
  • Minimum Order Quantity: 1 piece
  • Package Level 1 Width: 180 mm
  • Package Level 1 Length: 460 mm
  • Package Level 1 Height: 260 mm
  • Package Level 1 Gross Weight: 2.5 kg
  • Package Level 1 EAN: 7392696628495
  • Package Level 1 Units: 1 piece
  • RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2007 Q1
  • Declaration of Conformity - CE: 2CMC700005D0001
  • RoHS Information: 2CMC700057D0001
  • Additional Information: IP69
  • IIT Publishing Status: Level 0 - Information enabled
  • Invoice Description: IND. P&S#463MVS1WH
  • Object Classification Code: 2CMT005069
  • RoHS Date: L23
  • Suitable for Product Class: Industrial Plugs and Sockets
  • E-nummer: 2417035
  • UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 463MVS1WH . Santa Clara Systems carries 36,271 items from ABB.
  • Rated Current 63A
  • Ip67 Watertight
  • 3-Poles+Neutral+Earth
  • Switched Interlocked Socket Outlet
  • Vertical
  • Heavy Duty
  • Earthing Sleeve Position 1H
