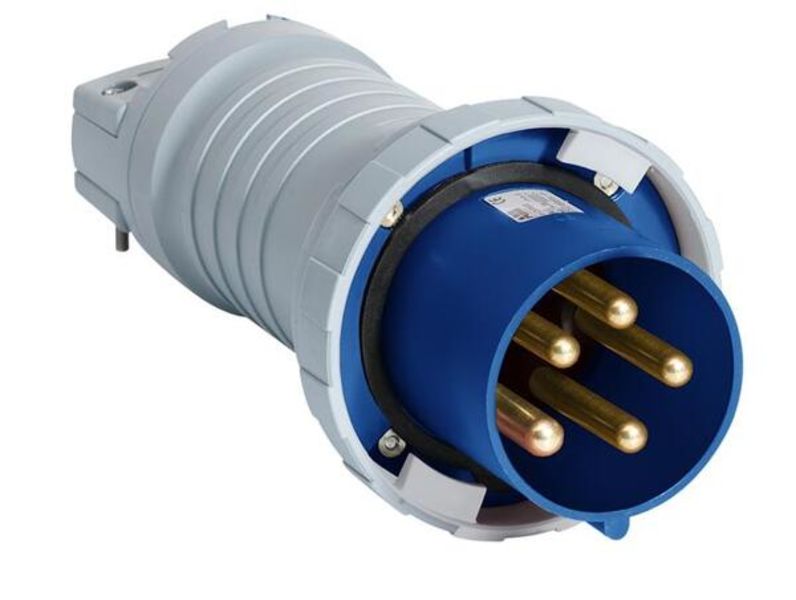

• ABB 463P9W Plug | 463P9W Product Image
  • Abb 463P9W Barcode

463P9W

Product Summary:

  • Product ID: 2CMA166802R1000
  • Extended Product Type: 2CMA166802R1000
  • Product Net Weight: 1.15 kg
  • Product Net Width: 114 mm
  • Product Net Height: 114 mm
Let Us Find It

Current response time:

By 5AM PT on Monday
  • Description: Plug | 463P9W
  • Product ID: 2CMA166802R1000
  • Extended Product Type: 2CMA166802R1000
  • Product Net Weight: 1.15 kg
  • Product Net Width: 114 mm
  • Product Net Height: 114 mm
  • Product Net Depth: 114 mm
  • Product Main Type: P
  • Product Name: Industrial Plug
  • Degree of Protection: IP67
  • Standards: IEC 60309-1,-2
  • Number of Poles: 5
  • Rated Current (In): 63 A
  • Function: Plug
  • Color: Blue
  • Suitable For: Plugs
  • Product Net Length: 275 mm
  • Rated Voltage (Ur): 200 250 V
  • Country of Origin: Czech Republic (CZ)
  • Frequency (f): 60 Hz
  • Enclosure Material: Thermoplastic polyester (PBT)
  • Environmental Information: 2CMC700001D0002
  • Protection Type: Watertight
  • Cable Cross-Section: 4 16 mm
  • EAN: 7392696668026
  • Minimum Order Quantity: 1 piece
  • Package Level 1 Width: 136 mm
  • Package Level 1 Length: 337 mm
  • Package Level 1 Height: 137 mm
  • Package Level 1 Gross Weight: 1.24 kg
  • Package Level 1 EAN: 7392696668026
  • Package Level 1 Units: 1 piece
  • RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-03-01
  • Declaration of Conformity - CE: 2CMC700005D0001
  • RoHS Information: 2CMC700057D0001
  • Additional Information: Cable entry, compression gland, internal and external cable clamp
  • IIT Publishing Status: Level 0 - Information enabled
  • Invoice Description: Ind. P&S#463P9W
  • Object Classification Code: 2CMT005069
  • RoHS Date: L23
  • Suitable for Product Class: Industrial Plugs and Sockets
  • E-nummer: 2416296
  • UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 463P9W . Santa Clara Systems carries 36,271 items from ABB.
  • 3-Poles+Neutral+Earth
  • Frequency 50-60 Hz
  • Color Code Blue
  • Plug
  • Earthing Sleeve Position 9H
  • Rated Current 63A
  • Ip67 Watertight
