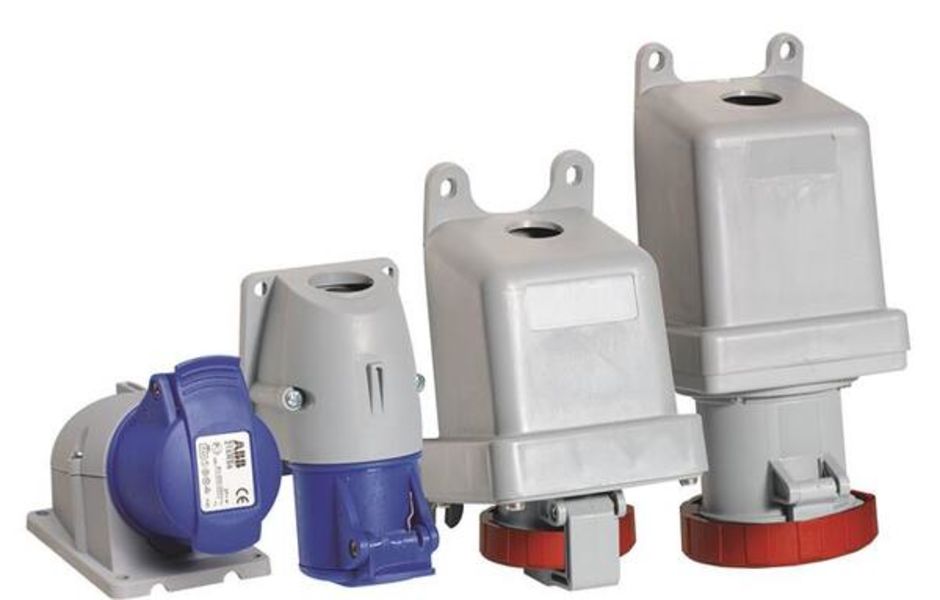

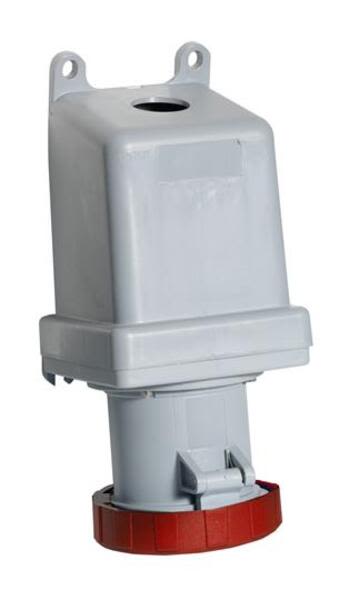

- Description: Surface socket-outlet, 11h, 63A, IP67, 3P+N+E
- Product ID: 2CMA167334R1000
- Extended Product Type: 2CMA167334R1000
- Product Net Weight: 1.15 kg
- Product Net Width: 118 mm
- Product Net Height: 263 mm
- Product Net Depth: 263 mm
- Product Main Type: TRS
- Product Name: Industrial Socket Outlet
- Degree of Protection: IP67
- Standards: IEC 60309-1,-2
- Number of Poles: 4
- Rated Current (I<sub>n</sub>): 63 A
- Function: Surface socket outlet
- Color: Red
- Suitable For: Surface Socket Outlets
- Product Net Length: 150 mm
- Rated Voltage (U<sub>r</sub>): 440 … 460 V
- Country of Origin: Czech Republic (CZ)
- Frequency (<i>f</i>): 60 Hz
- Enclosure Material: Thermoplastic polyester (PBT)
- Environmental Information: 2CMC700001D0002
- Protection Type: Watertight
- Cable Cross-Section: 6 … 25 mm²
- EAN: 7392696673341
- Minimum Order Quantity: 1 piece
- Package Level 1 Width: 124 mm
- Package Level 1 Length: 337 mm
- Package Level 1 Height: 153 mm
- Package Level 1 Gross Weight: 1.26 kg
- Package Level 1 EAN: 7392696673341
- Package Level 1 Units: 1 piece
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-03-01
- Declaration of Conformity - CE: 2CMC700005D0001
- RoHS Information: 2CMC700057D0001
- Additional Information: IP69
- IIT Publishing Status: Level 0 - Information enabled
- Invoice Description: Ind. P&S#463RS11W
- Object Classification Code: 2CMT005069
- RoHS Date: L23
- Suitable for Product Class: Industrial Plugs and Sockets
- E-nummer: 2416584
- UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 463RS11W . Santa Clara Systems carries 37,095 items from ABB.
- 3-Poles+neutral+earth
- Frequency 60 Hz
- Color Code Red
- Surface Socket-Outlet
- Earthing Sleeve Position 11h
- Rated Current 63a
- Ip67 Watertight
