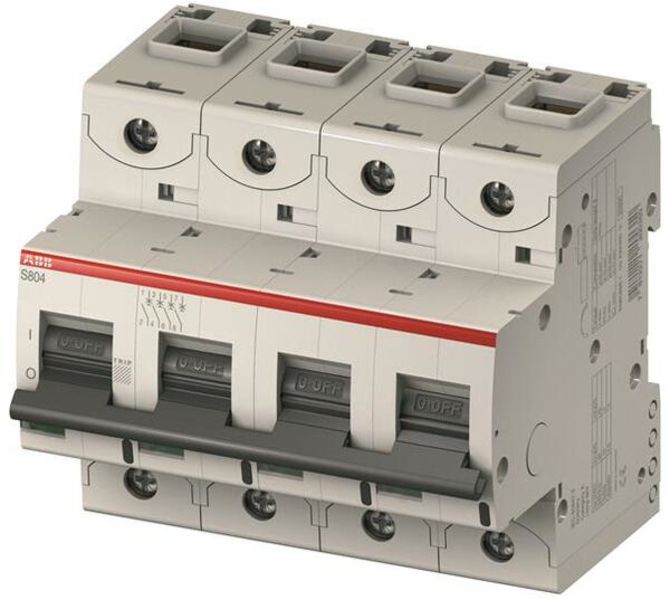

- Description: High Performance Circuit Breaker - S800S - Tripping characteristic K - Number of poles 4 - Rated operational current 50A
- Product ID: 2CCS864001R1577
- Extended Product Type: 2CCS864001R1577
- Product Net Weight: 0.98 kg
- Product Net Width: 106 mm
- Product Net Height: 95 mm
- Product Net Depth: 82.5 mm
- Ambient Air Temperature: Operation -25 ... +60 C Storage -40 ... +70 C
- Standards: IEC/EN 60947-2
- Number of Poles: 4
- Rated Current (I<sub>n</sub>): 50 A
- Power Loss: 17.2 W
- Tripping Characteristic: UC-K
- Connecting Capacity: Flexible 1 ... 50 mm Flexible Stranded<br/>1 70 mm
- Contact Position Indication: ON / OFF / TRIP
- EAN: 7612271203757
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362020
- Package Level 1 Width: 105 mm
- Package Level 1 Length: 111 mm
- Package Level 1 Height: 99 mm
- Package Level 1 Gross Weight: 1.01 kg
- Package Level 1 EAN: 7612271203757
- Package Level 2 Units: 1
- Package Level 1 Units: 1 piece
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Rated Operational Voltage: 1000 V
- Rated Ultimate Short-Circuit Breaking Capacity (I<sub>cu</sub>): (750 V DC) 50 kA
- Rated Service Short-Circuit Breaking Capacity (I<sub>cs</sub>): (750 V DC) 50 kA
- Instructions and Manuals: 2CCC413016M0002
- Data Sheet, Technical Information: 2CCC413003C0203
- Declaration of Conformity - CE: 2CCC413016D0601
- RoHS Information: 2CCC413008D0201
- ETIM 4: EC000042 - Miniature circuit breaker (MCB)
- ETIM 5: EC000042 - Miniature circuit breaker (MCB)
- ETIM 6: EC000042 - Miniature circuit breaker (MCB)
- Object Classification Code: F
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on S804S-UCK50 . Santa Clara Systems carries 36,687 items from ABB.
- S804s-Uck50 High Performance Miniature Circuit Breaker 4 Poles K Characteristic 50a 50ka 250vdc
