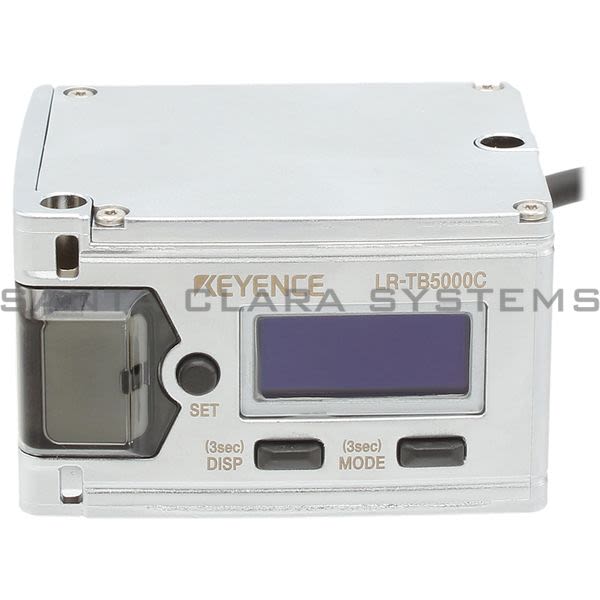

• Keyence LR-TB5000C Laser Detector Product Image

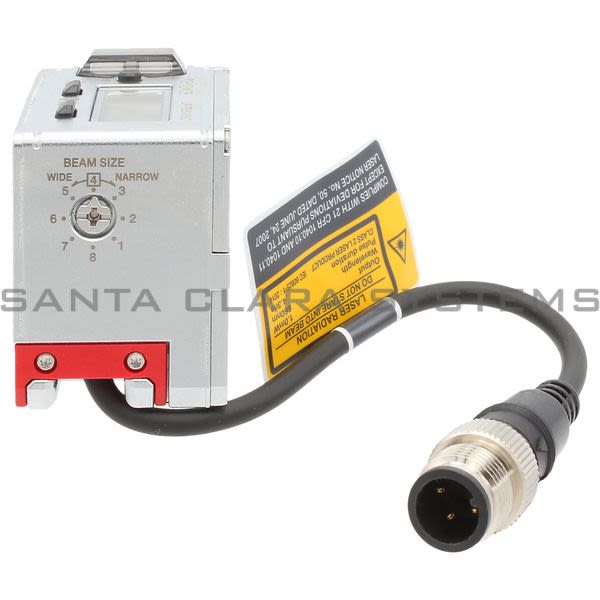

  • Keyence LR-TB5000C Laser Detector Product Image

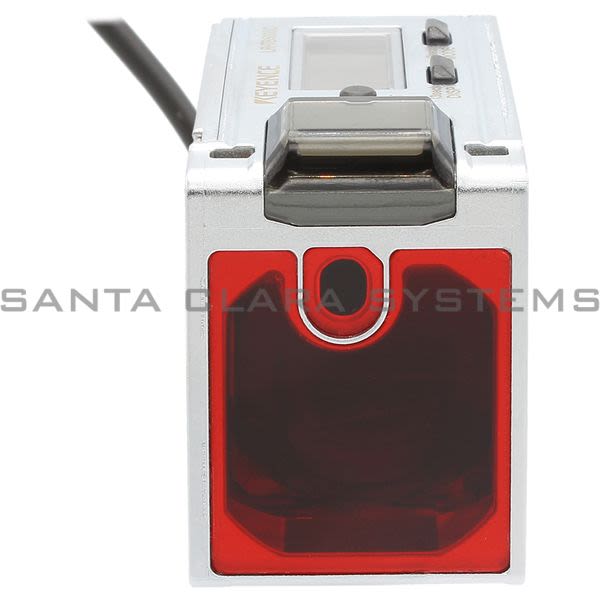

  • Keyence LR-TB5000C Laser Detector Product Image
  • Keyence LR-TB5000C Laser Detector Product Image
  • Keyence LR-TB5000C Barcode

LR-TB5000C

Product Summary:

  • Weight: Approx. 160 g
  • Type: Cable with connector M12
  • Response time: 1 ms/10 ms/25 ms/100 ms/1000 ms selectable
  • Detectable distance: 60 to 5000 mm 2.36" to 196.85"*1
  • Spot diameter: Variable (use a spot diameter of 40 mm 1.57" or less)
Get a Quote

Current response time:

By 5AM PT on Thursday
  • Description: Laser Detector
  • Weight: Approx. 160 g
  • Footnotes: *1 The range for displayable distance is from 50 to 5200. *2 The laser classification for FDA (CDRH) is implemented based on IEC60825-1 in accordance with the requirements of Laser Notice No.50. *3 150 mA or less(with load) *4 You can select the I/O from the following combinations. Control output 2, control output + external input Control output + analog output (LR-TB5000/TB5000C/TB5000CL only) External input + analog output (LR-TB5000/TB5000C/TB5000CL only) (For details on the setting method, see the instruction manual.) *5 IO-Link specification v.1.1/COM2 (38.4 kbps) is supported. You can download a setup file from the KEYENCE website (http://www.keyence.com). If you are using the product in an environment in which you cannot download files over the Internet, contact your nearest KEYENCE office.
  • Type: Cable with connector M12
  • Response time: 1 ms/10 ms/25 ms/100 ms/1000 ms selectable
  • Material: Case: Zinc die cast (Nickel chrome plating), Indicator cover and buttons: PES, Lens cover and display: PMMA (scratch-resistant coating specifications), Cable bushing: PBT, Cable: PVC, M12 connector: TPE, PBT, Nickel-plated brass
  • Detectable distance: 60 to 5000 mm 2.36" to 196.85"*1
  • Spot diameter: Variable (use a spot diameter of 40 mm 1.57" or less)
  • Light source - Type: Red laser (660 nm)
  • Light source - Laser class: Class 2 laser product (IEC60825-1,FDA (CDRH) Part1040.10*2)
  • Mutual interference prevention function: 4 units (when using the interference prevention function)
  • Timer: OFF/OFF delay/ON delay/One-shot
  • Power voltage: 20 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS
  • Current consumption: 50 mA or less (without load)*3
  • I/O - Control output: NPN open collector/PNP open collector selectable 30 VDC or less, 50 mA or less, residual voltage: 2 V or less, N.O./N.C. selectable *4*5
  • I/O - Analog output: Current output/Voltage output selectable Current output: 4 to 20 mA with a max. load resistance of 500 - Voltage output: 0 to 10 V with an external load resistance of 5 k? or more *4*5
  • Protection circuit: Protection against reverse power connection, power supply surges, output overcurrent, reverse output connection, and output surge
  • Environmental resistance - Enclosure rating: IP65/IP67 (IEC60529)
  • Environmental resistance - Ambient light: Incandescent lamp/Sunlight: 100000 lux or less
  • Environmental resistance - Ambient temperature: -20 to +55C -4 to 131F (no freezing)
  • Environmental resistance - Ambient humidity: 35 to 85%RH (no condensation)
  • Environmental resistance - Shock resistance: 1000 m/s2 in X, Y, Z axis directions respectively 6 times
  • Environmental resistance - Vibration resistance: 10 to 55 Hz Double amplitude 1.5 mm 0.06" in the X, Y, Z axis directions respectively, 2 hours
  • Accompanying items: Instruction manual, Laser warning and explanation labels
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LR-TB5000C . Santa Clara Systems carries 1,854 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
