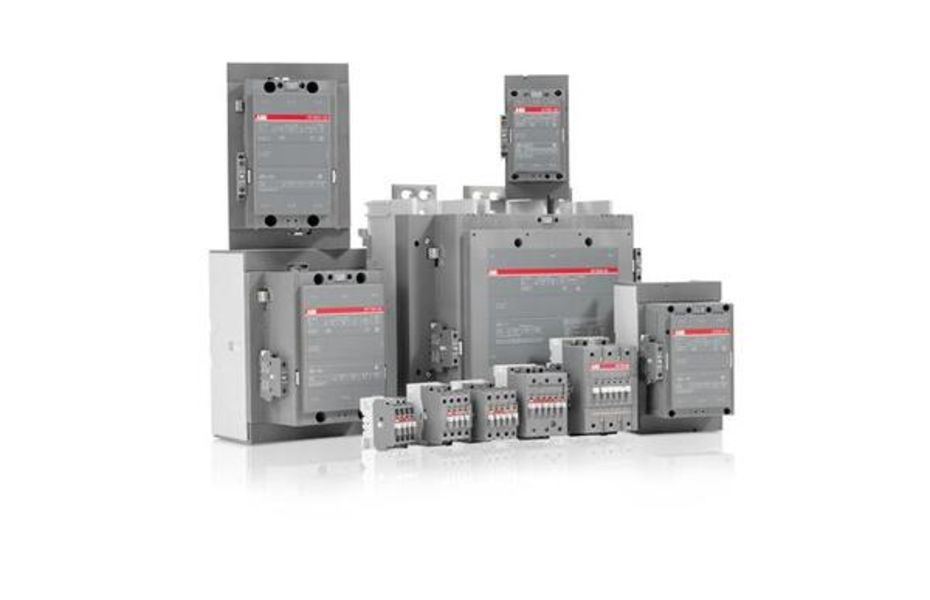

• ABB A145-30-22-89 A145-30-22 110-115V 50Hz / 115V 60Hz Contactor Product Image
  • Abb A145-30-22-89 Barcode

A145-30-22-89

Product Summary:

  • Product ID: 1SFL471001R8922
  • Extended Product Type: 1SFL471001R8922
  • Product Net Weight: 3.500 kg
  • Product Net Width: 123.5 mm
  • Product Net Height: 196.0 mm
Let Us Find It

Current response time:

By 5AM PT on Monday
  • Description: A145-30-22 110-115V 50Hz / 115V 60Hz Contactor
  • Product ID: 1SFL471001R8922
  • Extended Product Type: 1SFL471001R8922
  • Product Net Weight: 3.500 kg
  • Product Net Width: 123.5 mm
  • Product Net Height: 196.0 mm
  • Product Net Depth: 160.0 mm
  • Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
  • Ambient Air Temperature: Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25+50 C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40+70 C Close to Contactor for Storage -40+70 C
  • Rated Impulse Withstand Voltage (Uimp): Main Circuit 8 kV
  • Rated Insulation Voltage (Ui): acc. to UL/CSA 600 V acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
  • Terminal Type: Main Circuit: Bars
  • Rated Frequency (f): Main Circuit 50/60 Hz
  • Number of Auxiliary Contacts NO: 2
  • Number of Auxiliary Contacts NC: 2
  • Mechanical Durability: 5 million
  • Connecting Capacity Main Circuit: Rigid Al-Cable 1x25150 mm Bar 24 mm Rigid Cu-Cable 1x6185 mm
  • Maximum Operating Voltage UL/CSA: Main Circuit 600 V
  • Maximum Operating Altitude Permissible: 3000 m
  • Rated Control Circuit Voltage (Uc): 60 Hz 115 V 50 Hz 110 115 V
  • Maximum Mechanical Switching Frequency: 3600 cycles per hour
  • Connecting Capacity Auxiliary Circuit: Solid 2x14 mm Flexible with Insulated Ferrule 2x0.752.5 mm Stranded 1x14 mm Flexible 2x0.752.5 mm Flexible with Ferrule 1x0.752.5 mm
  • Operate Time: Between Coil Energization and NO Contact Closing 13 ... 27 ms Between Coil De-energization and NO Contact Opening 9 ... 13 ms Between Coil De-energization and NC Contact Closing 5 ... 10 ms Between Coil Energization and NC Contact Opening 8 ... 22 ms
  • Number of Main Contacts NO: 3
  • GL Certificate: GL_15529-00HH
  • Number of Main Contacts NC: 0
  • Short-Circuit Protective Devices: gG Type Fuses 315 A
  • Maximum Breaking Capacity: cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1500 A cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 1200 A
  • Coil Consumption: Pull-in at Max. Rated Control Circuit Voltage 60 Hz 600 V·A Holding at Max. Rated Control Circuit Voltage 50 Hz 35 V·A Pull-in at Max. Rated Control Circuit Voltage 50 Hz 550 V·A Holding at Max. Rated Control Circuit Voltage 60 Hz 40 V·A
  • Coil Operating Limits: (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at 70 C) C
  • Connecting terminals (delivered in open position) Main poles: Flat type c/w screws and bolts
  • Horsepower Rating UL/CSA: (208 V AC) Three Phase 40 Hp (440 ... 480 V AC) Three Phase 100 Hp (550 ... 600 V AC) Three Phase 125 Hp (220 ... 240 V AC) Three Phase 50 Hp (200 V AC) Three Phase 40 Hp
  • General Use Rating UL/CSA: (600 V AC) 230 A
  • EAN: 7320500217313
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85364900
  • Package Level 1 Width: 170 mm
  • Package Level 1 Length: 180 mm
  • Package Level 1 Height: 245 mm
  • Package Level 1 Gross Weight: 3.5 kg
  • Package Level 1 EAN: 7320500217313
  • Package Level 1 Units: 1 piece
  • Rated Operational Voltage: Main Circuit 690 V
  • Conventional Free-air Thermal Current (Ith): acc. to IEC 60947-4-1, Open Contactors q = 40 C 250 A
  • Rated Operational Current AC-1 (Ie): (690 V) 55 C 230 A (690 V) 40 C 250 A (1000 V) 40 C 180 A (1000 V) 55 C 180 A (690 V) 70 C 180 A (1000 V) 70 C 180 A
  • Rated Operational Current AC-3 (Ie): (1000 V) 55 C 80 A (690 V) 55 C 120 A (415 V) 55 C 145 A (220 / 230 / 240 V) 55 C 145 A (440 V) 55 C 145 A (380 / 400 V) 55 C 145 A (500 V) 55 C 145 A
  • Rated Operational Power AC-3 (Pe): (500 V) 90 kW (690 V) 110 kW (220 / 230 / 240 V) 45 kW (380 / 400 V) 75 kW (440 V) 75 kW (415 V) 75 kW
  • Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1: 8 x Ie AC-3
  • Rated Making Capacity AC-3 acc. to IEC 60947-4-1: 10 x Ie AC-3
  • Rated Short-time Withstand Current (Icw): at 40 C Ambient Temp, in Free Air, from a Cold State 10 s 1200 A at 40 C Ambient Temp, in Free Air, from a Cold State 15 min 280 A at 40 C Ambient Temp, in Free Air, from a Cold State 30 s 800 A at 40 C Ambient Temp, in Free Air, from a Cold State 1 s 1800 A at 40 C Ambient Temp, in Free Air, from a Cold State 1 min 600 A
  • Maximum Electrical Switching Frequency: AC-3 300 cycles per hour AC-1 300 cycles per hour AC-2 / AC-4 150 cycles per hour
  • Rated Operational Current DC-1 (Ie): (110 V) 2 Poles in Series, 40 C 250 A (220 V) 3 Poles in Series, 40 C 250 A
  • Rated Operational Current DC-3 (Ie): (110 V) 2 Poles in Series, 40 C 250 A (220 V) 3 Poles in Series, 40 C 250 A
  • Rated Operational Current DC-5 (Ie): (110 V) 2 Poles in Series, 40 C 250 A (220 V) 3 Poles in Series, 40 C 250 A
  • Resistance to Shock acc. to IEC 60068-2-27: Shock Direction: A 5 g Shock Direction: C2 5 g Shock Direction: B2 5 g Shock Direction: C1 5 g Shock Direction: B1 5 g
  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • Instructions and Manuals: 1SFC380003-89
  • BV Certificate: 09826/C0 BV
  • CB Certificate: SE-69488
  • CCC Certificate: CQC_2002010304011010
  • Data Sheet, Technical Information: 1SBC100122C0202
  • Declaration of Conformity - CE: 1SFA1-45
  • DNV Certificate: DNV_E-12191
  • LOVAG Certificate: IT99027
  • LR Certificate: LR_12-70003
  • RINA Certificate: ELE060313XG/001
  • RMRS Certificate: RMRS_12-03683-315
  • RoHS Information: 1SFC101046D0203
  • ETIM 4: EC000066 - Magnet contactor, AC-switching
  • ETIM 5: EC000066 - Magnet contactor, AC-switching
  • UNSPSC: 39121529
  • Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on A145-30-22-89 . Santa Clara Systems carries 36,271 items from ABB.
  • Versions From 24….690 Ac
  • 50 And 60 Hz
  • A 3-Phase Contactor Suitable For Various Applications Such As Motor Starting
  • Isolation
  • By-Pass And Distribution Application Up To Max 1000 V.Operated With Control Voltage
