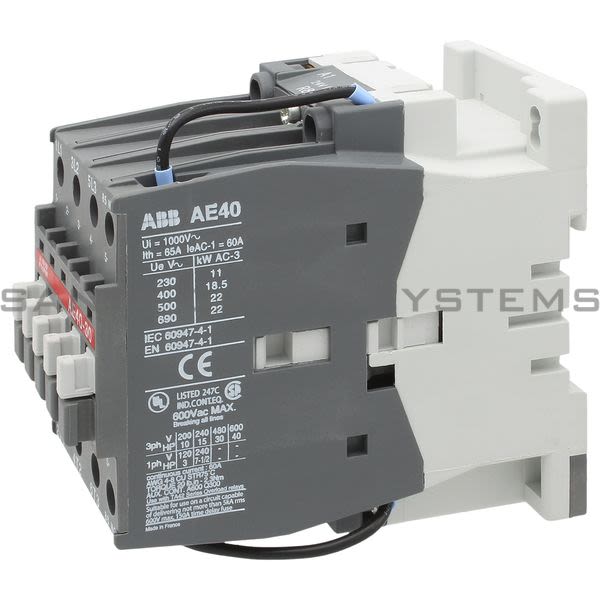

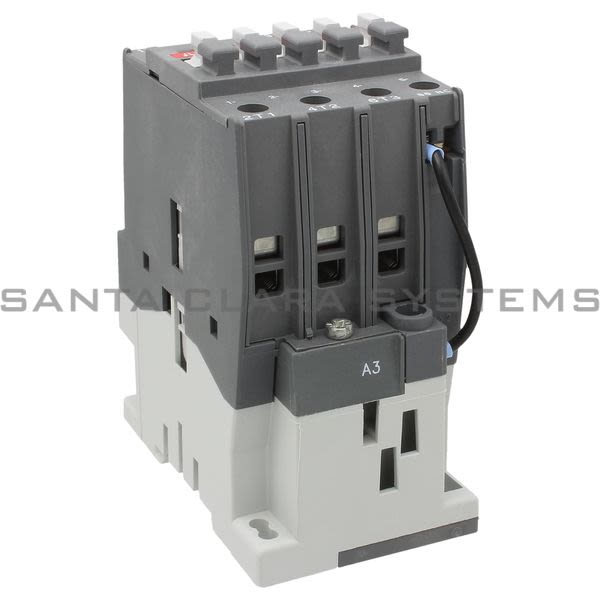

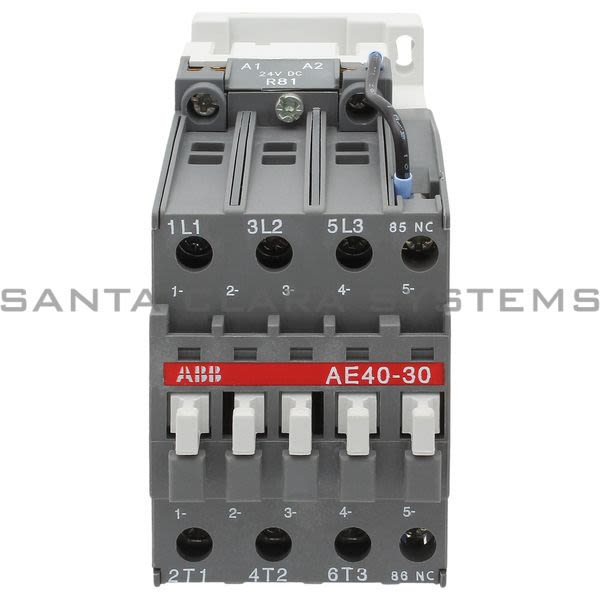

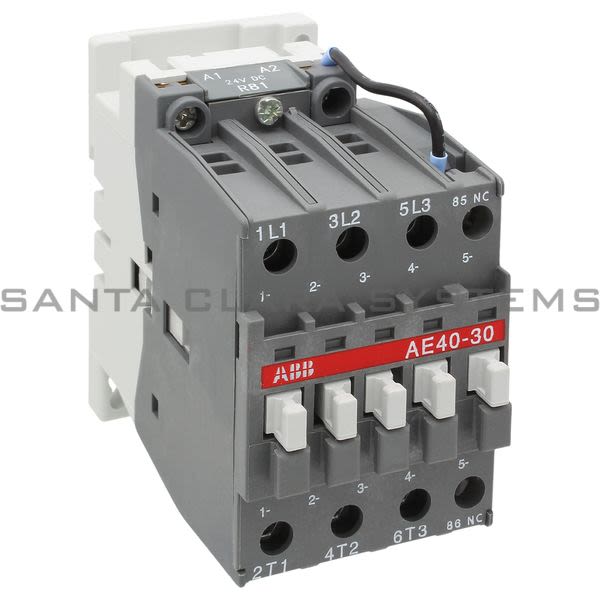

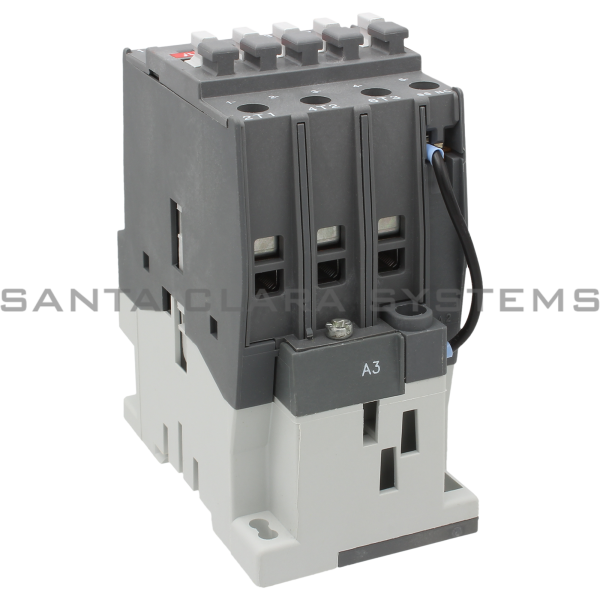

ABB AE40-30-00-81 Contactor | AE40-30-00-81 Product Image

AE40-30-00-81

ABB - Contactor | AE40-30-00-81

Product Summary:

Number of Main Contacts NO:: 3
Number of Main Contacts NC:: 0
Number of Auxiliary Contacts NO:: 0
Number of Auxiliary Contacts NC:: 0
Rated Operational Voltage:: Main Circuit 690 V

Current response time:

7 Minutes 32 Seconds

Description: Contactor | AE40-30-00-81
Number of Main Contacts NO:: 3
Number of Main Contacts NC:: 0
Number of Auxiliary Contacts NO:: 0
Number of Auxiliary Contacts NC:: 0
Rated Operational Voltage:: Main Circuit 690 V
Conventional Free-air Thermal Current (Ith):: acc. to IEC 60947-4-1, Open Contactors q = 40 °C 65 A
Rated Operational Current AC-1 (Ie):: (690 V) 40 °C 60 A
Rated Operational Current AC-3 (Ie):: (220 / 230 / 240 V) 55 °C 40 A
Rated Operational Power AC-3 (Pe):: (220 / 230 / 240 V) 11 KWT
Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1:: 8 x Ie AC-3
Rated Making Capacity AC-3 acc. to IEC 60947-4-1:: 10 x Ie AC-3
Short-Circuit Protective Devices:: gG Type Fuses 63 A

Maximum Breaking Capacity:: cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 820 A
Maximum Electrical Switching Frequency:: AC-1 600 cycles per hour
Rated Insulation Voltage (Ui):: acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp):: 8 kV
Maximum Mechanical Switching Frequency:: 3600 cycles per hour
Rated Control Circuit Voltage (Uc):: DC Operation 24 V
Operate Time:: Between Coil De-energization and NO Contact Opening 6 ... 12 ms
Connecting Capacity Main Circuit:: Flexible with Cable End 2.5 ... 10 m²
Connecting Capacity Auxiliary Circuit:: Flexible with Cable End 0.75 ... 2.5 mm²
Degree of Protection:: acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Connecting Terminals (delivered in open position) Main Poles:: M 5 (+,-) pozidriv 2 screw with 2x (5.6x6.5 mm) connector
Terminal Type:: Screw Terminals
