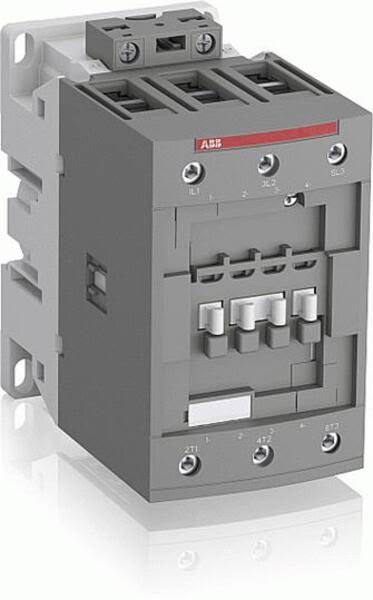

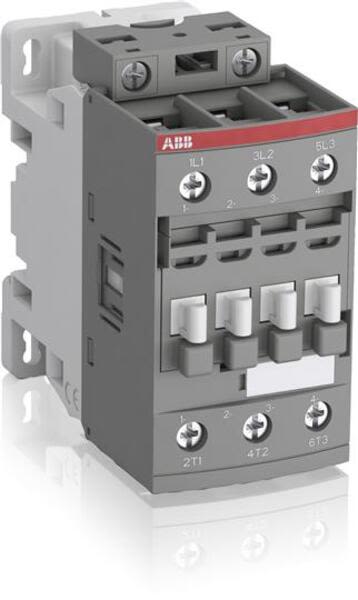

- Description: AE45-22-00 12V DC Contactor
- Product ID: 1SBL339501R8000
- Extended Product Type: 1SBL339501R8000
- Product Net Weight: 1.440 kg
- Product Net Width: 104 mm
- Product Net Height: 110 mm
- Product Net Depth: 119.5 mm
- Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
- Ambient Air Temperature: Near Contactor for Operation in Free Air (0.85 ... 1.1 Uc) -40 ... +55 C Near Contactor for Operation in Free Air (Uc) -40 ... +70 C Close to Contactor for Storage -60 ... +80 C
- Standards: Devices complying with international standards IEC 947-1 / 947-4-1 and European standards EN 60 947-1 / 60 947-4-1. Electromagnetic compatibility (EMC) according to amendment A11 to IEC 947-1; EN 60 947-1 and amendment 2 to IEC 947-4-1
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 8 kV
- Rated Insulation Voltage (U<sub>i</sub>): acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V acc. to UL/CSA 600 V
- Terminal Type: Screw Terminals
- Number of Auxiliary Contacts NO: 0
- Number of Auxiliary Contacts NC: 0
- Mechanical Durability: 5 million
- Connecting Capacity Main Circuit: Flexible with Cable End 6 ... 16 mm Rigid Cable 6 ... 25 mm
- GOST Certificate: GOST_POCCFRME77B07175
- Maximum Operating Altitude Permissible: 3000 m
- Rated Control Circuit Voltage (U<sub>c</sub>): DC Operation 12 V
- Climatic Withstand: acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II
- Maximum Mechanical Switching Frequency: 3600 cycles per hour
- Connecting Capacity Auxiliary Circuit: Flexible with Cable End 0.75 ... 2.5 mm Rigid Cable 1 ... 4 mm
- Operate Time: Between Coil Energization and NO Contact Closing 30 ... 30 ms Between Coil De-energization and NO Contact Opening 5 ... 15 ms Between Coil De-energization and NC Contact Closing 8 ... 18 ms Between Coil Energization and NC Contact Opening 10 ... 27 ms
- Number of Main Contacts NO: 2
- Number of Main Contacts NC: 2
- Short-Circuit Protective Devices: gG Type Fuses 80 A
- Maximum Breaking Capacity: cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 900 A cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 490 A
- Coil Consumption: Average Holding Value, from Warm State 4 W Average Pull-in Value, from Cold State 200 W Pull-in at Max. Rated Control Circuit Voltage DC 200 W
- Coil Operating Limits: (acc. to IEC 60947-4-1) 0.85 ... 1.1 x Uc (at 55 C) C
- Connecting terminals (delivered in open position) Main poles: M 6 (+,-) pozidriv 2 screws with 1x (13 x 10 mm) connector
- EAN: 3471522102805
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85369085
- Package Level 1 Width: 142 mm
- Package Level 1 Length: 190 mm
- Package Level 1 Height: 136 mm
- Package Level 1 Gross Weight: 1.44 kg
- Package Level 1 EAN: 3471522102805
- Package Level 2 Units: 8 piece
- Package Level 1 Units: 1 piece
- Rated Operational Voltage: Main Circuit 1000 V
- Conventional Free-air Thermal Current (I<sub>th</sub>): acc. to IEC 60947-4-1, Open Contactors q = 40 C 100 A
- Rated Operational Current AC-1 (I<sub>e</sub>): (690 V) 40 C 70 A (690 V) 55 C 60 A (690 V) 70 C 50 A
- Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1: 8 x Ie AC-3
- Rated Making Capacity AC-3 acc. to IEC 60947-4-1: 10 x Ie AC-3
- Rated Short-time Withstand Current (I<sub>cw</sub>): at 40 C Ambient Temp, in Free Air, from a Cold State 10 s 650 A at 40 C Ambient Temp, in Free Air, from a Cold State 15 min 110 A at 40 C Ambient Temp, in Free Air, from a Cold State 1 min 250 A at 40 C Ambient Temp, in Free Air, from a Cold State 1 s 1000 A at 40 C Ambient Temp, in Free Air, from a Cold State 30 s 370 A
- Maximum Electrical Switching Frequency: AC-1 300 cycles per hour AC-2 / AC-4 150 cycles per hour AC-3 300 cycles per hour
- Resistance to Shock acc. to IEC 60068-2-27: Shock Direction: A 20 g Closed, Shock Direction: B1 10 g Open, Shock Direction: B1 3 g Shock Direction: B2 10 g Shock Direction: C1 20 g Shock Direction: C2 20 g
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Instructions and Manuals: FPTC407701P0003
- CSA Certificate: CSA_1033838_LR056745
- cUL Certificate: UL_071301E39231
- Data Sheet, Technical Information: 1SBC100122C0202_Ch02
- Declaration of Conformity - CE: 1SBD250804U1000
- EAC Certificate: EAC_RU C-FR ME77 B01010
- RoHS Information: 1SBD350072R1000
- UL Certificate: UL_071301E39231
- ETIM 4: EC000066 - Magnet contactor, AC-switching
- ETIM 5: EC000066 - Magnet contactor, AC-switching
- ETIM 6: EC000066 - Power contactor, AC switching
- UNSPSC: 39121529
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on AE45-22-00-80 . Santa Clara Systems carries 36,687 items from ABB.
- Ae45 4-Pole Contactors Are Mainly Used For Controlling Non-Inductive Or Slightly Inductive Loads (I.e. Resistance Furnaces...) And Generally For Controlling Power Circuits Up To 690 V Ac And 440 V Dc. The Contactors Can Also Be Used For Many Other Applications Such Lighting... The Ae... Series 4-Pole Contactors Are Of The Block Type Design. - Main Poles And Auxiliary Contact Blocks: 2 N.o. + 2 N.c. Main Poles
- Ae45 4-Pole Contactors Are Mainly Used For Controlling Non-Inductive Or Slightly Inductive Loads (I.e. Resistance Furnaces...) And Generally For Controlling Power Circuits Up To 690 V Ac And 440 V Dc. The Contactors Can Also Be Used For Many Other Applications Such Lighting... The Ae... Series 4-Pole Contactors Are Of The Block Type Design. - Main Poles And Auxiliary Contact Blocks: 2 N.o. + 2 N.c. Main Poles
- Front And Side-Mounted Add-On Auxiliary Contact Blocks - Control Circuit: Dc Operated With Standard Double-Winding Dc Coils (With Add-On Factory-Mounted Lagging Contact For Insertion Of The"holding" Winding) - Accessories: A Wide Range Of Accessories Is Available.
