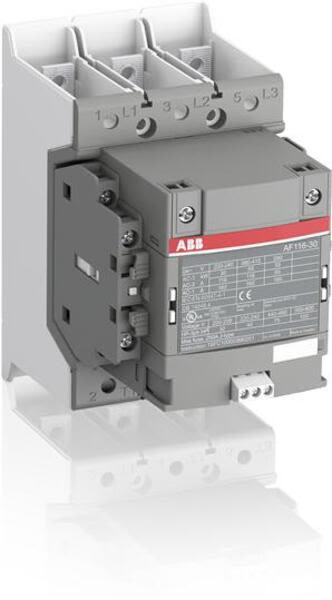

- Description: AF116-30-22-34 Contactor
- Product ID: 1SFL427001R3422
- Extended Product Type: 1SFL427001R3422
- Product Net Weight: 2.02 kg
- Product Net Width: 90 mm
- Product Net Height: 150 mm
- Product Net Depth: 142.5 mm
- Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
- Ambient Air Temperature: Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25...+55 C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40...+70 C Close to Contactor for Storage -40+70 C
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 8 kV
- Rated Insulation Voltage (U<sub>i</sub>): acc. to UL/CSA 600 V acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V
- Terminal Type: Double Clamp
- Rated Frequency (f): Main Circuit 60 Hz
- Number of Auxiliary Contacts NO: 2
- Number of Auxiliary Contacts NC: 2
- Mechanical Durability: 5 million
- Maximum Operating Altitude Permissible: 3000 m
- Rated Control Circuit Voltage (U<sub>c</sub>): 60 Hz 250500 V 50 Hz 250500 V DC Operation 250500 V
- Maximum Mechanical Switching Frequency: 300 cycles per hour
- Operate Time: Between Coil Energization and NO Contact Closing 2555 ms Between Coil De-energization and NO Contact Opening 3747 ms
- Number of Main Contacts NO: 3
- Number of Main Contacts NC: 0
- Short-Circuit Protective Devices: gG Type Fuses 250 A
- Coil Operating Limits: (acc. to IEC 60947-4-1) Uc (at 70 C) C
- EAN: 7320500478530
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Package Level 1 Width: 115 mm
- Package Level 1 Length: 194 mm
- Package Level 1 Height: 169 mm
- Package Level 1 Gross Weight: 2.02 kg
- Package Level 1 Units: 1 piece
- Rated Operational Voltage: Main Circuit 690 V
- Conventional Free-air Thermal Current (I<sub>th</sub>): acc. to IEC 60947-4-1, Open Contactors q = 40 C 160 A
- Rated Operational Current AC-3 (I<sub>e</sub>): (690 V) 55 C 65 A (415 V) 55 C 116 A (220 / 230 / 240 V) 55 C 116 A (440 V) 55 C 116 A (380 / 400 V) 55 C 116 A (500 V) 55 C 65 A
- Rated Operational Power AC-3 (P<sub>e</sub>): (500 V) 45 kW (220 / 230 / 240 V) 30 kW (690 V) 55 kW (380 / 400 V) 55 kW (440 V) 75 kW (415 V) 55 kW
- Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1: 8 x Ie AC-3
- Rated Making Capacity AC-3 acc. to IEC 60947-4-1: 10 x Ie AC-3
- Rated Short-time Withstand Current (I<sub>cw</sub>): at 40 C Ambient Temp, in Free Air, from a Cold State 30 s 536 A at 40 C Ambient Temp, in Free Air, from a Cold State 15 min 160 A at 40 C Ambient Temp, in Free Air, from a Cold State 10 s 928 A at 40 C Ambient Temp, in Free Air, from a Cold State 1 s 1160 A at 40 C Ambient Temp, in Free Air, from a Cold State 1 min 379 A
- Maximum Electrical Switching Frequency: AC-3 300 cycles per hour AC-1 300 cycles per hour AC-2 / AC-4 150 cycles per hour
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Instructions and Manuals: 1SFC100003M0201
- Data Sheet, Technical Information: 1SBC100192C02
- RoHS Information: 1SFC101055D0202
- UNSPSC: 39121529
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on AF116-30-22-34 . Santa Clara Systems carries 36,836 items from ABB.
- Ac/dc
- A 3-Phase Contactor Suitable For Various Applications Such As Motor Starting
- Isolation
- By-Pass And Distribution Application Up To Max 1000 V. Operated With Wide Control Voltage Range 250-500 V
