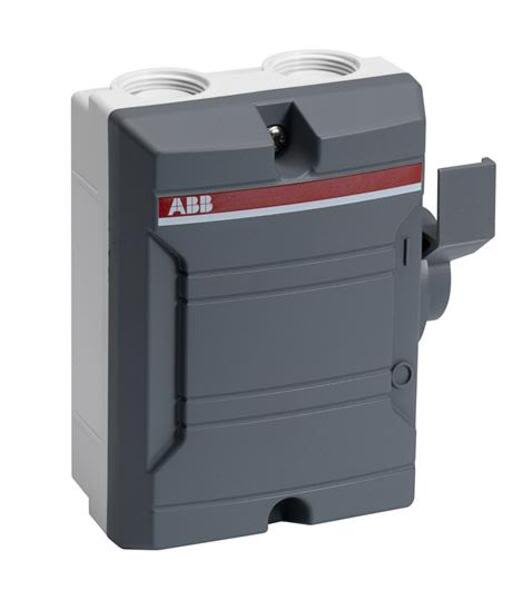

- Description: ENCL. SW#BW 425 TPSN
- Product ID: 2CMA142405R1000
- Extended Product Type: 2CMA142405R1000
- Product Net Weight: 0.31 kg
- Product Net Width: 111 mm
- Product Net Height: 130 mm
- Product Net Depth: 130 mm
- Product Main Type: BW
- Product Name: Enclosed Switch-Disconnector
- Degree of Protection: IP54
- Standards: IEC 60947-1,-3
- Rated Insulation Voltage (U<sub>i</sub>): 690 V
- Number of Poles: 4
- Rated Current (I<sub>n</sub>): 25 A
- Color: Dark gray
- Suitable For: BW
- Connecting Capacity Main Circuit: 10 mm²
- Product Net Length: 60 mm
- Enclosure Material: Plastic
- Handle Type: Side-operated
- Protection Type: Splashproof
- Cable Outlets Per Side: 2xM25
- Cable Entry Position: Top and bottom
- EAN: 7392696424059
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365015
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 112 mm
- Package Level 1 Height: 131 mm
- Package Level 1 Length: 62 mm
- Package Level 1 Gross Weight: 0.31 kg
- Package Level 1 EAN: 7392696424059
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2008 Q1
- Cable Throughouts: 25
- Conventional Free-air Thermal Current (I<sub>th</sub>): 32 A
- IIT Publishing Status: Level 0 - Information enabled
- Rated Operational Current AC-22A (I<sub>e</sub>): (400 V) 25 A (500 V) 25 A (690 V) 16 A
- Rated Operational Current AC-23A (I<sub>e</sub>): (400 V) 16 A (500 V) 16 A (690 V) 10 A
- Rated Operational Power AC-23A (P<sub>e</sub>): (400 V) 7.5 kW (500 V) 7.5 kW (690 V) 7.5 kW
- RoHS Date: 2009-01
- Suitable for Product Class: Enclosed Switches
- Data Sheet, Technical Information: 1SCC340009C0201
- Declaration of Conformity - CE: 2CMC300009
- RoHS Information: 2CMC300025D0001
- ETIM 4: EC000216 - Switch disconnector
- ETIM 5: EC000249 - Protection switch disconnector housing
- Object Classification Code: 2CMT005069
- UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on BW425TPSN . Santa Clara Systems carries 36,972 items from ABB.
- Ip65. Enclosure In Robust Pbt Plastic With Metric Threaded Cable Entries. Light Grey Enclosure With Dark Grey Operating Handle. Delivery Includes Pe Terminal And Membrane Glands(Ip54) / Sealing Plugs. For Ip65 Degree Of Protection Compression Glands Must Be Used.
- Plastic Enclosed Side Operated Switch-Disconnectors
- 4-Pole
