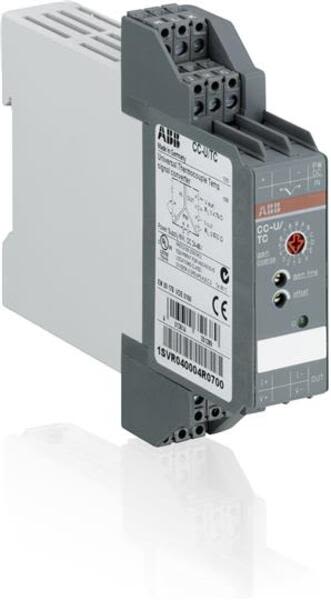

- Description: CC-U/TC Universal signal converter 110-240VAC 50/60Hz / 100-300VDC
- Product ID: 1SVR040005R0000
- Extended Product Type: 1SVR040005R0000
- Product Net Weight: 0.128 kg
- Product Net Width: 22.5 mm
- Product Net Height: 105 mm
- Product Net Depth: 120 mm
- Function: Thermocouple signals Universal
- eClass: 7.0 27210120
- Rated Control Supply Voltage (U<sub>s</sub>): 100-300 V DC 110-240 V AC
- EAN: 4013614351396
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85369085
- Package Level 1 Width: 109 mm
- Package Level 1 Length: 26 mm
- Package Level 1 Height: 124 mm
- Package Level 1 Gross Weight: 0.156 kg
- Package Level 1 Units: 1 piece
- Input Signal: TC sensors type K, J, T, S, E, N, R, B
- Output Signal: 0 ... ± 55 mA / 0 ... .± 11V
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Instructions and Manuals: 1SVC497120M5000
- Instructions and Manuals (Part 2): 1SVC040000M9000
- cUL Certificate: cUL508_E174460 cUL1604_E215666
- Data Sheet, Technical Information: 2CDC110004C0209
- Declaration of Conformity - CE: 1SVD981001-0000
- RoHS Information: 1SAA981010-4403
- UL Certificate: UL508_E174460 UL1604_E215666
- ETIM 4: EC002653 - Isolation amplifier
- ETIM 5: EC002653 - Isolation amplifier
- ETIM 6: EC002653 - Isolation amplifier
- UNSPSC: 39120000
- Object Classification Code: T
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CC-U-TC-1SVR040005R0000 . Santa Clara Systems carries 37,000 items from ABB.
- R
- And B
- Operates With A Rated Control Supply Voltage Of 110-240 V Ac. It Provides Short-Circuit Proof Signal Outputs
- Pluggable Connecting Terminals And Configurable Detection Of Input Signal Interruption (Low Fail Safe / High Fail Safe). The Temperature Ranges For The 8 Different Thermocouples
- 2 Input Voltage Signal Ranges (0-10 Mv
- 0-50 Mv) And 41 Output Signal Ranges (8 Standard And 33 Non-Standard) Can Be Configured By Means Of Directly Accessible Lateral Dip Switches. The Gain And The Offset Adjustment Is Made Via Front-Face Operating Elements. Applied Supply Voltage Is Displayed By A Green Led.
- The Cc-U/tc Is An Universal Signal Converter From The Cc-U Range. This Converter
- With 3-Way Electrical Isolation
- For Thermocouples Types K
- J
- T
- S
- E
- N
