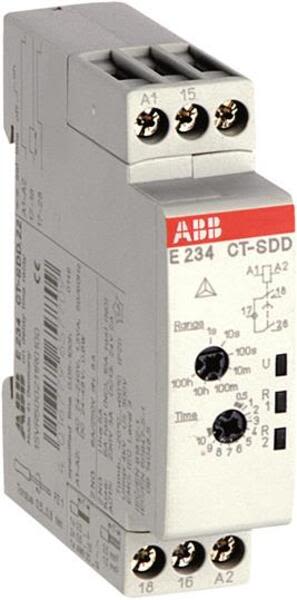

- Description: CT-SDD.22 Time relay, star-delta 2n/o, 24-48VDC, 24-240VAC
- Product ID: 1SVR500211R0100
- Extended Product Type: 1SVR500211R0100
- Product Net Weight: 0.059 kg
- Product Net Width: 17.5 mm
- Product Net Height: 80 mm
- Product Net Depth: 63 mm
- Degree of Protection: Housing IP50 Terminals IP20
- Ambient Air Temperature: Operation -20 ... +60 °C Storage -40 ... +85 °C
- Standards: IEC/EN 61812-1 UL 508 CAN/CSA C22.2 No.14
- Terminal Type: Screw Terminals
- Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- eClass: 7.0 27371790
- Tightening Torque: 0.5 ... 0.8 N·m
- Mounting Position: Any
- Connecting Capacity: Flexible 1x 0.5 ... 2.5 mm² Flexible 2x 0.5 ... 1.5 mm² Rigid 1x 0.5 ... 4 mm² Rigid 2x 0.5 ... 1.5 mm²
- GOST Certificate: GOST_8572616
- Maximum Operating Voltage UL/CSA: Output Circuit 300 V AC
- Tightening Torque UL/CSA: 4.43 ... 7.08 in·lb
- Overvoltage Category: III
- Connecting Capacity UL/CSA: Flexible 1x 18-14 AWG Flexible 2x 18-16 AWG Rigid 1x 20-12 AWG Rigid 2x 20-16 AWG
- Wire Stripping Length: 7 mm
- Short-Circuit Protective Devices: Output Circuit NC - F Type Fuses 6 A Output Circuit NO - F Type Fuses 10 A
- Rated Control Supply Voltage (U<sub>s</sub>): 24 ... 240 V AC 24 ... 48 V DC
- Output: 2 n/o contacts
- EAN: 4016779657709
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Package Level 1 Width: 89 mm
- Package Level 1 Length: 20 mm
- Package Level 1 Height: 65 mm
- Package Level 1 Gross Weight: 0.071 kg
- Package Level 1 Units: 1 piece
- Time Range: 0.05 s - 10 min
- Rated Operational Current AC-12 (I<sub>e</sub>): (230 V) 5 A
- Rated Operational Current AC-15 (I<sub>e</sub>): (230 V) 3 A
- Rated Operational Current DC-12 (I<sub>e</sub>): (24 V) 5 A
- Rated Operational Current DC-13 (I<sub>e</sub>): (24 V) 2 A
- Pollution Degree: 3
- Timer Relay Type: Star-Delta
- RoHS Status: Following EU Directive 2011/65/EC
- Contact Rating UL/CSA: C300
- Instructions and Manuals: 1SVC500010M1000
- CCC Certificate: CCC_2005010303153177
- cUL Certificate: cUL508_E140448
- Data Sheet, Technical Information: 2CDC111156D0201
- Declaration of Conformity - CE: 1SVD981010-0000
- EAC Certificate: EAC_RU_C-DE.ME77.B.02016
- RoHS Information: 1SAA981071-4401
- UL Certificate: UL508_E140448
- ETIM 4: EC001439 - Timer relay
- ETIM 5: EC001439 - Timer relay
- ETIM 6: EC001439 - Timer relay
- Object Classification Code: K
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CT-SDD.22 . Santa Clara Systems carries 36,972 items from ABB.
- The Ct-Sdd.22 Is A Single-Function Electronic Time Relay From The Ct-D Timer Range. It Provides A Star-Delta Function With 7 Time Ranges From 0.05 S To 10 Min. And A Fixed Transition Time Of 50 Ms. This Time Relay Operates With A Rated Control Supply Voltage Of 24 - 48 V Dc / 24 - 240 V Ac And Has A 2 N/o Output With Contacts Rated At 250 V / 5 A.
