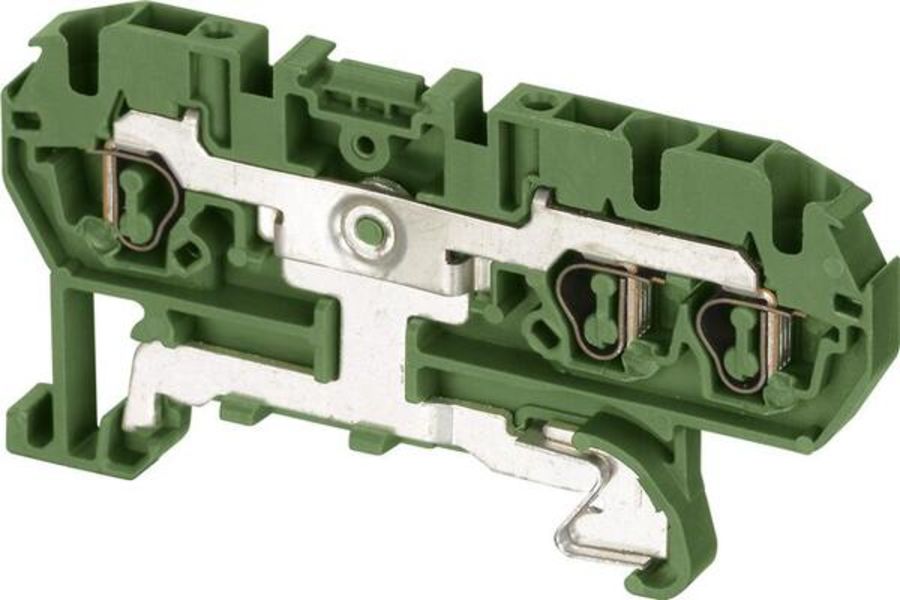

- Description: D2.5/5.P.3L Spring Terminal Blocks - Ground with 3 connections - Green-Yellow
- Product ID: 1SNA290039R0100
- Extended Product Type: 1SNA290039R0100
- Product Net Weight: 11 g
- Product Net Width: 5 mm
- Product Net Height: 69 mm
- Product Net Depth: 30.5 mm
- Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Ambient Air Temperature: Operation -55 ... +110 C Storage -55 ... +110 C
- Rated Current (I<sub>n</sub>): Main Circuit 300 A
- Function: Ground
- Color: Green-Yellow
- Mounting on DIN Rail: TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Connecting Capacity Main Circuit: Spring Clamp / Flexible 1x 0.12 ... 2.5 mm Spring Clamp / Rigid 1x 0.12 ... 4 mm Spring Clamp / With Insulated Ferrrule 1x 0.5 ... 1.5 mm
- Connecting Capacity UL/CSA: Stranded 12 AWG
- Spacing: 5 mm
- Dielectric Test Voltage: 2000 V
- Wire Stripping Length: 9.5 mm
- Insulation Material: Polyamide
- Connecting Capacity Main Circuit UL/CSA: Spring Clamp / Flexible 1x 26 ... 12 AWG Spring Clamp / Rigid 1x 26 ... 12 AWG
- Connection Type: Spring
- Rated Cross-Section: 2.5 mm
- Number of Levels: 1
- Gauge Type: A2
- EAN: 3472592900391
- Minimum Order Quantity: 50 piece
- Customs Tariff Number: 85369010
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 300 A
- Pollution Degree: 3
- Recommended Screw Driver: 3.5 mm
- Flammability According to UL94: V0
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Instructions and Manuals: 1SNC160019C0202
- cUL Certificate: 1SND162000A0204
- Data Sheet, Technical Information: 1SNC160019C0202
- Declaration of Conformity - CE: 1SND225020U1000
- EAC Certificate: 1SND162001A1100
- RoHS Information: 1SND230488F0201
- ETIM 4: EC000901 - Ground terminal block
- ETIM 5: EC000901 - Ground terminal block
- ETIM 6: EC000901 - Ground terminal block
- Object Classification Code: X
- Package Level 1 Width: 81 mm
- Package Level 1 Length: 220 mm
- Package Level 1 Height: 47 mm
- Package Level 1 Gross Weight: 0.55 kg
- Package Level 1 EAN: 3472592900391
- Package Level 2 Units: 750 piece
- Package Level 2 Width: 300 mm
- Package Level 2 Length: 500 mm
- Package Level 2 Height: 150 mm
- Package Level 2 Gross Weight: 8.600 kg
- Package Level 3 Units: 36000 piece
- Product Packing Type: Box
- Package Level 1 Units: 50 piece
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on D2.5-5.P.3L . Santa Clara Systems carries 36,687 items from ABB.
- - Numerous Built- In Functions : Clearly Visible Top Marker
- Test Sockets
- Etc
- - Functional Through Ergonomic Design (Alignment).
- - Improve The Safety Of Your Installation In The Event Of A Short-Circuit Thanks To Our Screwless Rail Contact
- - Rail Contact Non Operator Dependent
- - Performances Above The Requirements Of Iec 60947-7-2 Terminal Block Standard
- - Secure Snap On Or Remove From The Rail
- - Easy To Access Thanks To The Front Wiring Entry
- - Clamping Contact Pressure Non Dependent On The Operator And Automatic Creeping Compensation
