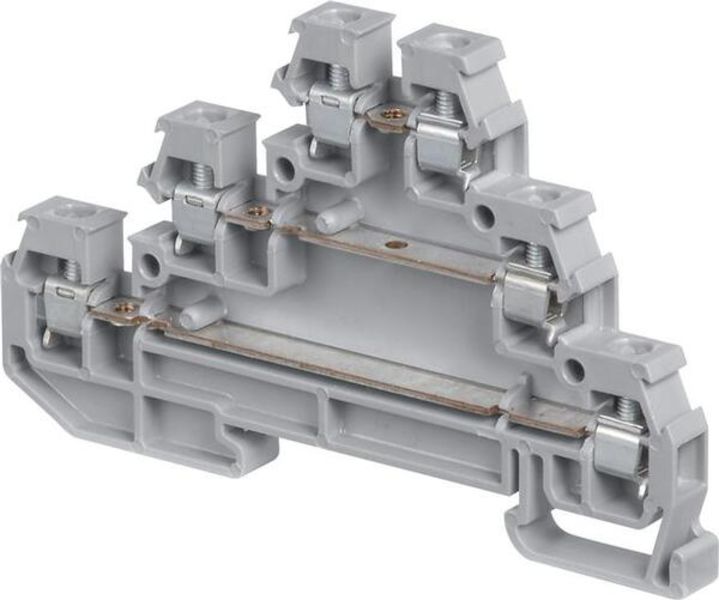

- Description: D2.5/6.DA Screw Clamp Terminal Blocks - Triple deck - Grey
- Product ID: 1SNA115541R1100
- Extended Product Type: 1SNA115541R1100
- Product Net Weight: 13 g
- Product Net Width: 6 mm
- Product Net Height: 81 mm
- Product Net Depth: 43.5 mm
- Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Ambient Air Temperature: Operation -55 ... +110 °C Storage -55 ... +110 °C
- Rated Current (I<sub>n</sub>): Main Circuit 22 A
- Function: Feed-through
- Color: Grey
- Mounting on DIN Rail: G32 (32 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Tightening Torque: acc. IEC 60947-1 0.4 N·m Manufacturer 0.6 N·m
- Connecting Capacity Main Circuit: Screw Clamp / Flexible 1x 0.22 ... 2.5 mm² Screw Clamp / Rigid 1x 0.2 ... 2.5 mm²
- Maximum Operating Voltage UL/CSA: Main Circuit 300 V
- Rated Voltage (U<sub>r</sub>): 380 V
- Connecting Capacity UL/CSA: Screw Clamp / Rigid 20 ... 12 AWG Stranded 12 AWG
- Spacing: 6 mm
- Wire Stripping Length: 6.0 mm
- Insulation Material: Polyamide
- Connecting Capacity Main Circuit UL/CSA: Screw Clamp / Rigid 1x 20 ... 12 AWG
- Connection Type: Screw clamp
- Rated Cross-Section: 2.5 mm²
- Number of Levels: 3
- Gauge Type: A2
- EAN: 3472591155419
- Minimum Order Quantity: 25 piece
- Customs Tariff Number: 85369010
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 300 A
- Pollution Degree: 3
- Recommended Screw Driver: 3.5 mm
- Flammability According to UL94: V0
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Instructions and Manuals: 1SNC160019C0202
- CSA Certificate: 1SND161055A0200
- cUL Certificate: 1SND161008A0201
- Data Sheet, Technical Information: 1SNC160019C0202
- Declaration of Conformity - CE: 1SND225026U1000
- EAC Certificate: 1SND161009A1100
- RoHS Information: 1SND230023F0208
- E-nummer: 2925416
- ETIM 4: EC000897 - Feed-through terminal block
- ETIM 5: EC000897 - Feed-through terminal block
- ETIM 6: EC000897 - Feed-through terminal block
- Object Classification Code: X
- Package Level 1 Width: 81 mm
- Package Level 1 Length: 200 mm
- Package Level 1 Height: 53 mm
- Package Level 1 Gross Weight: 0.325 kg
- Package Level 1 EAN: 3472591155419
- Package Level 2 Units: 300 piece
- Package Level 3 Units: 14400 piece
- Product Packing Type: Box
- Package Level 1 Units: 25 piece
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on D2.5-6.DA . Santa Clara Systems carries 37,000 items from ABB.
- - Save Space With Triple Deck Terminal Blocks: 3 Independent Circuits Connected In Just 6 Mm 0.236 In Spacing
- - Save Space With Triple Deck Terminal Blocks: 3 Independent Circuits Connected In Just 6 Mm 0.236 In Spacing
- - Adapted For 3 Wires Sensor/actuator.
