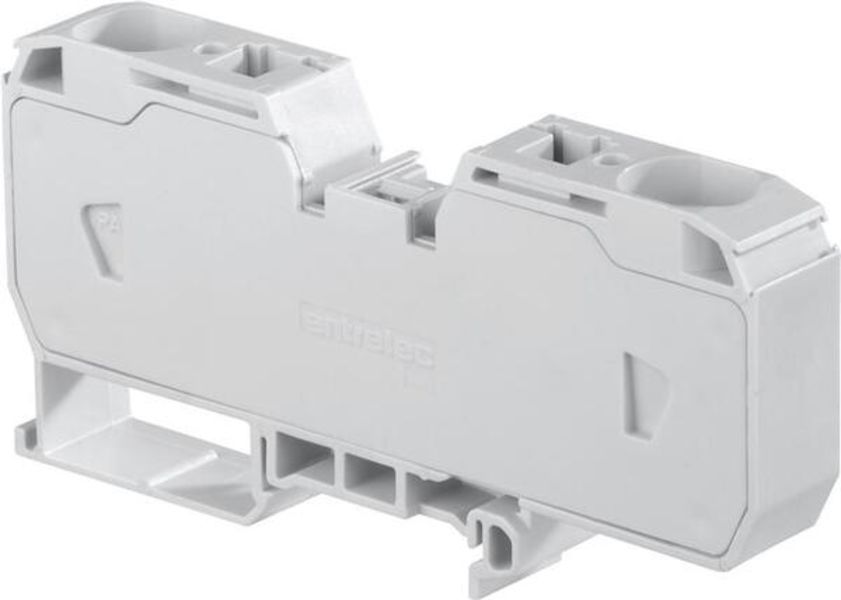

- Description: D35/16.2L Spring Terminal Blocks - Feed-through with 2 connections - Grey
- Product ID: 1SNA399617R0200
- Extended Product Type: 1SNA399617R0200
- Product Net Weight: 95 g
- Product Net Width: 16 mm
- Product Net Height: 116 mm
- Product Net Depth: 58 mm
- Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Ambient Air Temperature: Operation -55 ... +110 C Storage -55 ... +110 C
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 8000 V
- Rated Current (I<sub>n</sub>): Main Circuit 125 A
- Function: Feed-through
- Color: Grey
- Mounting on DIN Rail: TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Connecting Capacity Main Circuit: Spring Clamp / Flexible 1x 2.5 ... 35 mm Spring Clamp / Rigid 1x 2.5 ... 50 mm
- Maximum Operating Voltage UL/CSA: Main Circuit 600 V
- Rated Voltage (U<sub>r</sub>): 1000 V
- Connecting Capacity UL/CSA: Stranded 2 AWG
- Spacing: 16 mm
- Wire Stripping Length: 26.0 mm
- Insulation Material: Polyamide
- Connecting Capacity Main Circuit UL/CSA: Spring Clamp / Flexible 1x 14 ... 2 AWG Spring Clamp / Rigid 1x 14 ... 2 AWG
- Connection Type: Spring
- Rated Cross-Section: 35 mm
- Number of Levels: 1
- Gauge Type: A9
- EAN: 3472593996171
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85369010
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 4200 A
- Pollution Degree: 3
- Recommended Screw Driver: 6.5 mm
- Flammability According to UL94: V0
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Instructions and Manuals: 1SNC160019C0202
- cUL Certificate: 1SND162000A0204
- Data Sheet, Technical Information: 1SNC160019C0202
- Declaration of Conformity - CE: 1SND225018U1000
- EAC Certificate: 1SND162001A1100
- RoHS Information: 1SND230488F0201
- ETIM 4: EC000897 - Feed-through terminal block
- ETIM 5: EC000897 - Feed-through terminal block
- ETIM 6: EC000897 - Feed-through terminal block
- Object Classification Code: X
- Package Level 1 Width: 163 mm
- Package Level 1 Length: 130 mm
- Package Level 1 Height: 57 mm
- Package Level 1 Gross Weight: 0.95 kg
- Package Level 1 EAN: 3472593996171
- Package Level 2 Units: 200 piece
- Package Level 2 Width: 300 mm
- Package Level 2 Length: 500 mm
- Package Level 2 Height: 300 mm
- Package Level 2 Gross Weight: 19.500 kg
- Package Level 3 Units: 4800 piece
- Product Packing Type: Box
- Package Level 1 Units: 10 piece
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on D35-16.2L-1SNA399617R0200 . Santa Clara Systems carries 36,687 items from ABB.
- Clearly Visible Top Marker
- Test Sockets
- Etc
- - Functional Through Ergonomic Design (Alignment).
- - Closed Terminal Block
- No End Section Needed
- - Easy To Access Thanks To The Front Wiring Entry
- - Clamping Contact Pressure Non Dependent On The Operator And Automatic Creeping Compensation
- - Numerous Built-In Functions: Double Jumpering System
