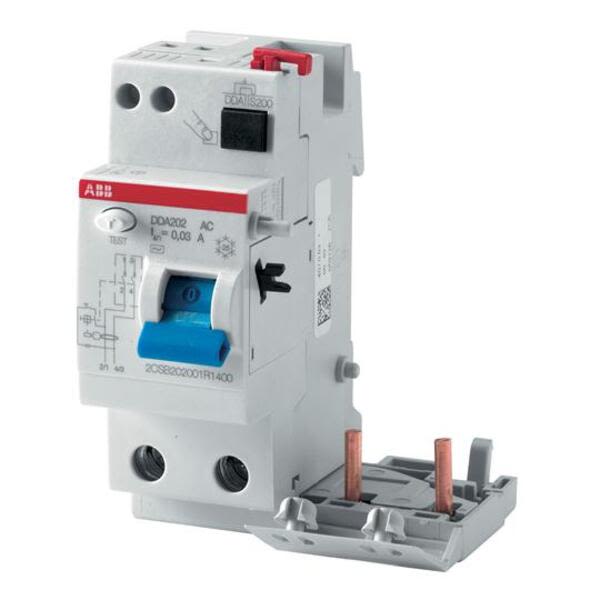

- Description: DDA202 A S-63/0,3 - RCD Block
- Product ID: 2CSB202201R3630
- Extended Product Type: 2CSB202201R3630
- Product Net Weight: 0.210 kg
- Product Net Width: 0.070 m
- Product Net Height: 0.093 m
- Product Net Depth: 0.069 m
- Standards: EN 61009 Ann. G
- Number of Poles: 2
- Rated Current (I<sub>n</sub>): 63 A
- Power Loss: 5 W
- Rated Voltage (U<sub>r</sub>): 230/400 V
- Type of Residual Current: A type
- Rated Residual Current: 300 mA
- EAN: 8012542799405
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363030
- Package Level 1 Width: 0.077 m
- Package Level 1 Height: 0.076 m
- Package Level 1 Length: 0.102 m
- Package Level 1 Gross Weight: 0.245 kg
- Package Level 1 EAN: 8012542799412
- Package Level 1 Units: 1 piece
- Operating Characteristic: Selective
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2007 Q3
- Instructions and Manuals: 2CSB423001D0003
- Data Sheet, Technical Information: 2CSC400002D0209
- Declaration of Conformity - CE: 2CSC427001D2702
- RoHS Information: 2CSC427001K0201
- ETIM 4: EC002297 - Residual current circuit breaker (RCCB) module
- ETIM 5: EC002297 - Residual current circuit breaker (RCCB) module
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DDA202-A-S-63-0-3 . Santa Clara Systems carries 36,687 items from ABB.
- Industrial.
- The Rcd Block Dda200 Series Is Suitable For Assembly With Mcbs S200 Series. It Assures Protection Against The Effects Of Sinusoidal Alternating And Direct Pulsating Earth Fault Currents With An Intentional Tripping Delay
- In Order To Realize The Selectivity With Downstream Instantaneous Devices. Applications: Commercial
