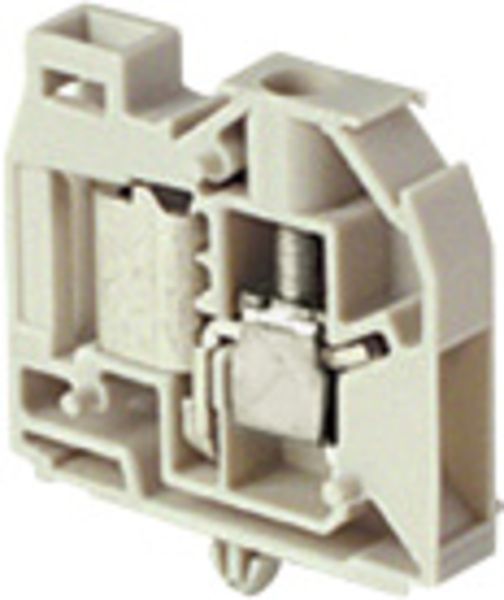

- Description: DH2.5/5.ADO IDC Terminal Blocks - Miniblocks ADO - screw clamp - Grey
- Product ID: 1SNA399523R2400
- Extended Product Type: 1SNA399523R2400
- Product Net Weight: 4 g
- Product Net Width: 5 mm
- Product Net Height: 31 mm
- Product Net Depth: 28 mm
- Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Ambient Air Temperature: Operation -55 ... +110 C Storage -55 ... +110 C
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 8000 V
- Rated Current (I<sub>n</sub>): Main Circuit 13.5 A
- Function: Miniblocks
- Color: Grey
- Tightening Torque: acc. IEC 60947-1 0.4 N·m Manufacturer 0.6 N·m
- Connecting Capacity Main Circuit: Screw Clamp / Flexible 1x 0.22 ... 2.5 mm Screw Clamp / Rigid 1x 0.2 ... 4 mm
- Maximum Operating Voltage UL/CSA: Main Circuit 600 V
- Rated Voltage (U<sub>r</sub>): 800 V
- Connecting Capacity UL/CSA: Stranded 18 AWG
- Spacing: 5 mm
- Wire Stripping Length: 9.5 mm
- Insulation Material: Polyamide
- Connecting Capacity Main Circuit UL/CSA: Screw Clamp / Rigid 1x 24 ... 12 AWG
- Connection Type: Screw clamp - ADO System
- Rated Cross-Section: 1 mm
- Number of Levels: 1
- Gauge Type: A3
- EAN: 3472593995235
- Minimum Order Quantity: 100 piece
- Customs Tariff Number: 85369010
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 120 A
- Pollution Degree: 3
- Recommended Screw Driver: 3.5 mm
- Flammability According to UL94: V0
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Instructions and Manuals: 1SNC160001C0207-CH-C ADO system
- Data Sheet, Technical Information: 1SNC160001C0207-CH-C ADO system
- Declaration of Conformity - CE: 1SND225025U1000
- EAC Certificate: 1SND161009A1100
- RoHS Information: 1SND230472F0201
- ETIM 4: EC000897 - Feed-through terminal block
- ETIM 5: EC000897 - Feed-through terminal block
- Object Classification Code: X
- Package Level 1 Width: 135 mm
- Package Level 1 Length: 175 mm
- Package Level 1 Height: 74 mm
- Package Level 1 Gross Weight: 0.4 kg
- Package Level 1 EAN: 3472593995235
- Package Level 2 Units: 1600 piece
- Package Level 2 Width: 300 mm
- Package Level 2 Length: 500 mm
- Package Level 2 Height: 300 mm
- Package Level 2 Gross Weight: 6.9 kg
- Package Level 3 Units: 38400 piece
- Product Packing Type: Box
- Package Level 1 Units: 100 piece
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DH2.5-5.ADO . Santa Clara Systems carries 36,687 items from ABB.
- Shocks
- Corrosion Etc.)
- - Easy Base Mounting Thanks To Snap In Mounting Foot.
- - The Mini Blocks Are Particularly Designed For Applications Where Space Is Very Restricted
- - With The Abb Ado System®
- Experience The Fastest And Most Reliable Connection On The Market
- - Designed For Control Applications Exposed To Severe Constrains (Vibrations
