DS201-C4-A30

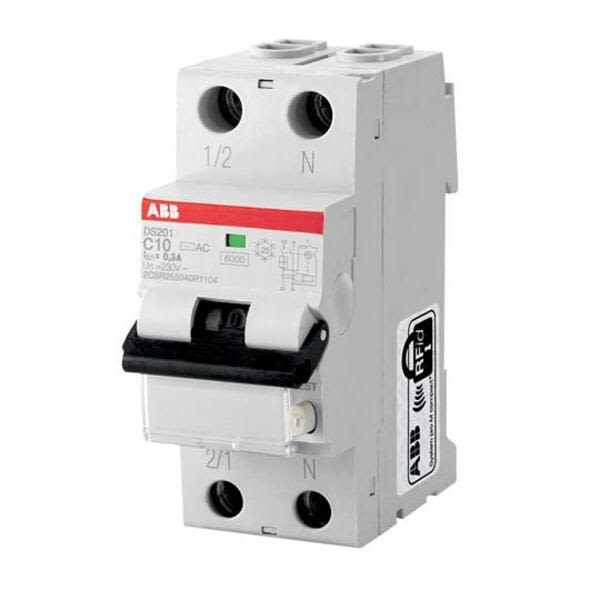

ABB - DS201 C4 A30 - RCBO

Current response time:

By 5AM PT on Friday

Emergency?

Description: DS201 C4 A30 - RCBO
Product ID: 2CSR255140R1044
Extended Product Type: 2CSR255140R1044
Product Net Weight: 0.239 kg
Product Net Width: 0.035 m
Product Net Height: 0.085 m
Product Net Depth: 0.069 m
Standards: IEC 61009-1 IEC 61009-2-1 EN 61009-1 EN 61009-2-1
Number of Poles: 2
Rated Current (I<sub>n</sub>): 4 A
Power Loss: 2.5 W
Tripping Characteristic: C
Type of Residual Current: A type
Number of Protected Poles: 1
Rated Residual Current: 30 mA
EAN: 8012542942306
Minimum Order Quantity: 1 piece

Customs Tariff Number: 85363010
Package Level 1 Width: 0.253 m
Package Level 1 Height: 0.088 m
Package Level 1 Length: 0.108 m
Package Level 1 Gross Weight: 1.446 kg
Package Level 1 EAN: 8012542942313
Package Level 1 Units: 5 piece
Rated Short-Circuit Capacity (I<sub>cn</sub>): (230 / 400 V AC) 6 kA
Position of Neutral Terminals: Right
RoHS Status: Following EU Directive 2011/65/EC
Instructions and Manuals: 9AKK106354A0766
Data Sheet, Technical Information: 2CSC400002D0209
Declaration of Conformity - CE: 9AKK106713A5588
RoHS Information: 2CSC422002K2701
ETIM 4: EC000905 - Earth leakage circuit breaker
ETIM 5: EC000905 - Earth leakage circuit breaker
Object Classification Code: Q

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DS201-C4-A30 . Santa Clara Systems carries 37,000 items from ABB.

The Ds201 Series Rcbo Is A 1p+n In Two-Modules Device For The Protection Of End User Single-Phase Circuits Against Overload And Short-Circuit Currents; Protection Against The Effects Of Sinusoidal Alternating And Direct Pulsating Earth Fault Currents; Protection Against Indirect Contacts And Additional Protection Against Direct Contacts (With Sensitivity = 30 Ma).
