M4-6-1SNA105001R2700

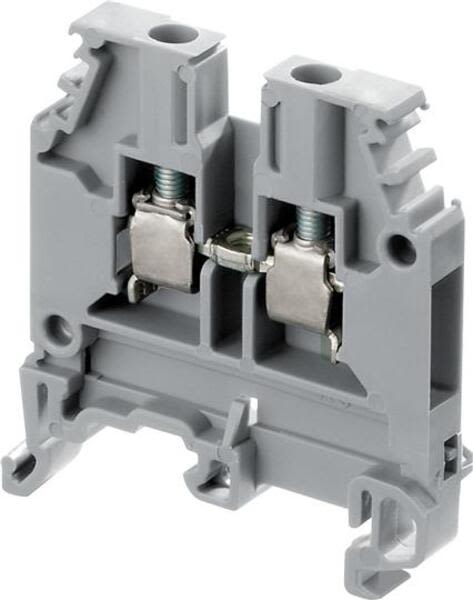

ABB - Screw Clamp Terminal Blocks | M4/6-GN

Current response time:

7 Minutes 3 Seconds

Description: Screw Clamp Terminal Blocks | M4/6-GN
Product ID: 1SNA105001R2700
Extended Product Type: 1SNA105001R2700
Product Net Weight: 8.2 g
Product Net Width: 6 mm
Product Net Height: 44.5 mm
Product Net Depth: 40.5 mm
Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
Ambient Air Temperature: Operation -55 ... +110 °C Storage -55 ... +110 °C
Rated Impulse Withstand Voltage (Uimp): 8000 V
Rated Current (In): Main Circuit 32 A
Function: Feed-through
Power Loss: 1 W
Color: Green
Mounting on DIN Rail: G32 (32 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Tightening Torque: acc. IEC 60947-1 0.5 N·m Manufacturer 0.8 N·m
Connecting Capacity Main Circuit: Screw Clamp / Flexible 1x 0.22 ... 4 mm² Screw Clamp / Rigid 1x 0.2 ... 4 mm² Screw Clamp / With Insulated Ferrrule 1x 2.5 mm²
Product Net Length: 40.5 mm
Maximum Operating Voltage UL/CSA: Main Circuit 600 V
Rated Voltage (Ur): 1000 V
Connecting Capacity UL/CSA: Stranded 10 AWG
Spacing: 6 mm
Dielectric Test Voltage: 2000 V
Wire Stripping Length: 9.5 mm
Insulation Material: Polyamide
Connecting Capacity Main Circuit UL/CSA: Screw Clamp / Flexible 1x 22 ... 10 AWG Screw Clamp / Rigid 1x 22 ... 10 AWG Screw Clamp / Rigid 2x 14 AWG
Connection Type: Screw clamp
Rated Cross-Section: 4 mm²
Number of Levels: 1
Gauge Type: A4
EAN: 3472591050011

Minimum Order Quantity: 50 piece
Customs Tariff Number: 85369010
Rated Short-time Withstand Current (Icw): for 1 s 480 A
Pollution Degree: 3
Recommended Screw Driver: 4 mm
Flammability According to UL94: V0
RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
Instructions and Manuals: 1SNC160019C0202
CSA Certificate: 1SND161039A0201
cUL Certificate: 1SND161001A0208
Data Sheet, Technical Information: 1SNC160019C0202
Declaration of Conformity - CE: 1SND225014U1000
EAC Certificate: 1SND161009A1100
RoHS Information: 1SND230023F0208
ETIM 4: EC000897 - Feed-through terminal block
ETIM 5: EC000897 - Feed-through terminal block
ETIM 6: EC000897 - Feed-through terminal block
Object Classification Code: X
Package Level 1 Width: 61 mm
Package Level 1 Length: 220 mm
Package Level 1 Height: 47 mm
Package Level 1 Gross Weight: 0.41 kg
Package Level 1 EAN: 3472591050011
Package Level 2 Units: 2000 piece
Package Level 2 Width: 300 mm
Package Level 2 Length: 500 mm
Package Level 2 Height: 300 mm
Package Level 2 Gross Weight: 18.100 kg
Package Level 3 Units: 48000 piece
Product Packing Type: Box
Package Level 1 Units: 50 piece

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on M4-6-1SNA105001R2700 . Santa Clara Systems carries 36,972 items from ABB.

- Flexibility: Snap Onto Symmetrical And Asymmetrical Rails

- Flexibility: Snap Onto Symmetrical And Asymmetrical Rails
- Many Colors Are Available In Addition To Our Generic Grey To Help You Quickly Identify Any Specific Functions.
