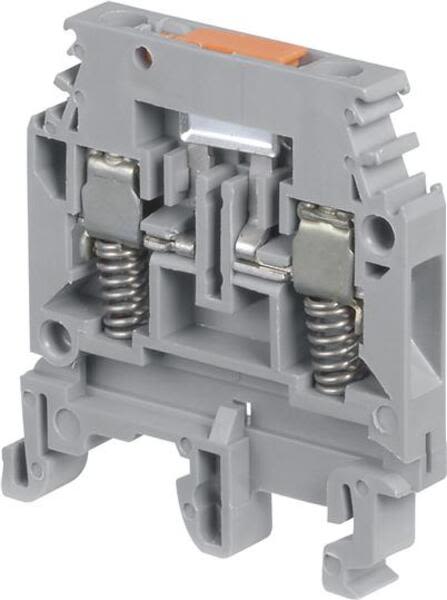

- Description: M4/6.SNTS Spring Loaded Screw Clamp Terminal Blocks - Disconnect with blade - with test socket - Grey
- Product ID: 1SNA115229R2000
- Extended Product Type: 1SNA115229R2000
- Product Net Weight: 11 g
- Product Net Width: 6 mm
- Product Net Height: 44.5 mm
- Product Net Depth: 40.5 mm
- Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Ambient Air Temperature: Operation -55 ... +110 C Storage -55 ... +110 C
- Rated Current (I<sub>n</sub>): Main Circuit 10 A
- Function: Disconnect
- Color: Grey
- Mounting on DIN Rail: G32 (32 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Tightening Torque: acc. IEC 60947-1 0.5 N·m Manufacturer 0.6 N·m
- Connecting Capacity Main Circuit: Screw Clamp / Flexible 1x 0.5 ... 4 mm Screw Clamp / Rigid 1x 0.5 ... 4 mm
- Maximum Operating Voltage UL/CSA: Main Circuit 300 V
- Rated Voltage (U<sub>r</sub>): 500 V
- Connecting Capacity UL/CSA: Screw Clamp / Rigid 22 ... 10 AWG Stranded 10 AWG
- Spacing: 6 mm
- Wire Stripping Length: 9.5 mm
- Insulation Material: Polyamide
- Connecting Capacity Main Circuit UL/CSA: Screw Clamp / Rigid 1x 22 ... 10 AWG Screw Clamp / Rigid 2x 14 AWG
- Connection Type: Screw clamp
- Rated Cross-Section: 4 mm
- Number of Levels: 1
- EAN: 3472591152296
- Minimum Order Quantity: 50 piece
- Customs Tariff Number: 85365011
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 480 A
- Pollution Degree: 3
- Recommended Screw Driver: 4 mm
- Flammability According to UL94: V0
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2007-01-01
- Instructions and Manuals: 1SNC160020C0201
- CSA Certificate: 1SND161061A0201
- cUL Certificate: TBD - OK in Ag.Base
- Data Sheet, Technical Information: 1SNC160020C0201
- Declaration of Conformity - CE: 1SND225039U1000
- EAC Certificate: 1SND161009A1100
- RoHS Information: 1SND230023F0201
- ETIM 4: EC000902 - (Knife) disconnect terminal block
- ETIM 5: EC000902 - (Knife) disconnect terminal block
- ETIM 6: EC000902 - (Knife) disconnect terminal block
- Object Classification Code: X
- Package Level 1 Width: 61 mm
- Package Level 1 Length: 220 mm
- Package Level 1 Height: 47 mm
- Package Level 1 Gross Weight: 0.55 kg
- Package Level 1 EAN: 3472591152296
- Package Level 2 Units: 1000 piece
- Package Level 2 Width: 300 mm
- Package Level 2 Length: 500 mm
- Package Level 2 Height: 150 mm
- Package Level 3 Units: 48000 piece
- Product Packing Type: Box
- Package Level 1 Units: 50 piece
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on M4-6.SNTS . Santa Clara Systems carries 36,687 items from ABB.
- Spring Clamp Can Maintain Contact Pressure Even If Screw Clamp Is Loose.
- - Mainly Dedicated To Energy Markets For Security Purposes On Ct Circuits
- - Security: Specific Shape In Linking Bar To Lock The Ferrule
