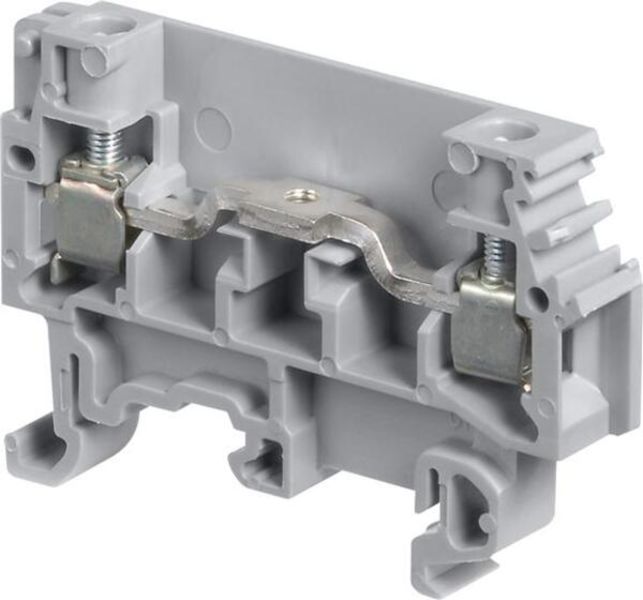

- Description: M4/8 Screw Clamp Terminal Blocks - Feed-Through - Grey
- Product ID: 1SNA115523R0700
- Extended Product Type: 1SNA115523R0700
- Product Net Weight: 11 g
- Product Net Width: 8 mm
- Product Net Height: 56.5 mm
- Product Net Depth: 31 mm
- Ambient Air Temperature: Operation -55 ... +110 C Storage -55 ... +110 C
- Rated Current (I<sub>n</sub>): Main Circuit 26 A
- Function: Feed-through
- Color: Grey
- Mounting on DIN Rail: G32 (32 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Tightening Torque: acc. IEC 60947-1 0.5 N·m Manufacturer 0.8 N·m
- Connecting Capacity Main Circuit: Screw Clamp / Flexible 1x 0.22 ... 4 mm Screw Clamp / Rigid 1x 0.2 ... 4 mm
- Maximum Operating Voltage UL/CSA: Main Circuit 600 V
- Rated Voltage (U<sub>r</sub>): 500 V
- Connecting Capacity UL/CSA: Stranded 12 AWG
- Spacing: 8 mm
- Wire Stripping Length: 9.5 mm
- Insulation Material: Polyamide
- Connecting Capacity Main Circuit UL/CSA: Screw Clamp / Rigid 1x 22 ... 12 AWG
- Connection Type: Screw clamp
- Rated Cross-Section: 4 mm
- Number of Levels: 1
- Gauge Type: A4
- EAN: 3472591155235
- Minimum Order Quantity: 50 piece
- Customs Tariff Number: 85369010
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 480 A
- Pollution Degree: 3
- Recommended Screw Driver: 4 mm
- Flammability According to UL94: V0
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Instructions and Manuals: 1SNC160019C0202
- Data Sheet, Technical Information: 1SNC160019C0202
- Declaration of Conformity - CE: 1SND225014U1000
- EAC Certificate: 1SND161009A1100
- RoHS Information: 1SND230023F0208
- ETIM 4: EC000897 - Feed-through terminal block
- ETIM 5: EC000897 - Feed-through terminal block
- ETIM 6: EC000897 - Feed-through terminal block
- Object Classification Code: X
- Package Level 1 Width: 126 mm
- Package Level 1 Length: 205 mm
- Package Level 1 Height: 37 mm
- Package Level 1 Gross Weight: 0.55 kg
- Package Level 1 EAN: 3472591155235
- Package Level 2 Units: 750 piece
- Package Level 2 Width: 300 mm
- Package Level 2 Length: 500 mm
- Package Level 2 Height: 300 mm
- Package Level 2 Gross Weight: 8.750 kg
- Package Level 3 Units: 36000 piece
- Product Packing Type: Box
- Package Level 1 Units: 50 piece
