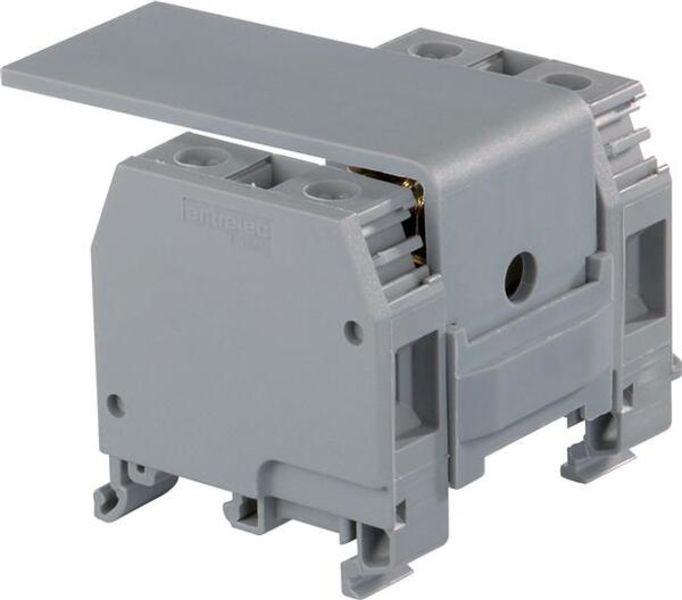

- Description: MB70/10.L4 Distribution Terminal Blocks
- Product ID: 1SNA115336R1300
- Extended Product Type: 1SNA115336R1300
- Product Net Weight: 130 g
- Product Net Width: 74 mm
- Product Net Height: 68 mm
- Product Net Depth: 44.2 mm
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 8 kV
- Function: Distribution
- Color: grey
- Mounting on DIN Rail: G32 (32 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Tightening Torque: acc. IEC 60947-1 1.2 N·m Manufacturer 1.4 N·m
- Spacing: 10 mm
- Wire Stripping Length: 12 mm
- Connection Type: Screw clamp
- Rated Cross-Section: 10 mm
- Number of Levels: 1
- EAN: 3472591153361
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85369010
- Pollution Degree: 2
- Recommended Screw Driver: 5.5 mm
- Flammability According to UL94: V2
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2007 Q2
- Instructions and Manuals: 1SNC160001C0207-CH-G Distribution terminals
- Data Sheet, Technical Information: 1SNC160001C0207-CH-G Distribution terminals
- Declaration of Conformity - CE: 1SND225007U1000
- EAC Certificate: 1SND161009A1100
- RoHS Information: 1SND230013F0201
- ETIM 4: EC001894 - Distributor assembly terminal blocks
- ETIM 5: EC001894 - Distributor assembly terminal blocks
- ETIM 6: EC001894 - Distributor assembly terminal blocks
- Object Classification Code: X
- Package Level 1 Width: 77 mm
- Package Level 1 Length: 120 mm
- Package Level 1 Height: 48 mm
- Package Level 1 Gross Weight: 0.13 kg
- Package Level 1 EAN: 3472591153361
- Package Level 2 Units: 25 piece
- Package Level 2 Width: 300 mm
- Package Level 2 Length: 500 mm
- Package Level 2 Height: 150 mm
- Package Level 2 Gross Weight: 3.6 kg
- Package Level 3 Units: 1200 piece
- Product Packing Type: Box
- Package Level 1 Units: 1 piece
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MB70-10.L4 . Santa Clara Systems carries 36,687 items from ABB.
- Th 35-15 Rail.
- Mb70/10.l4 Distribution Terminal Blocks - Grey
- 74mm Spacing G32
- Th 35-7.5
