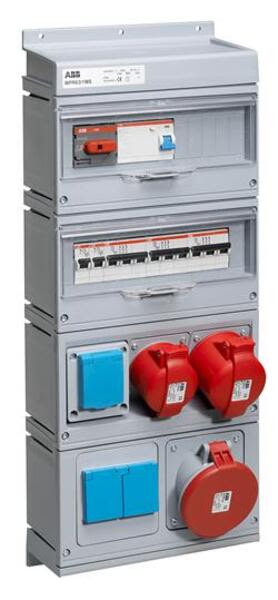

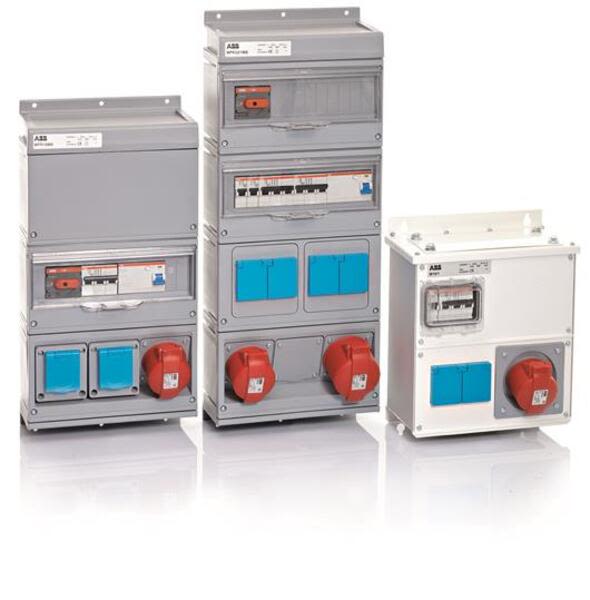

- Description: Modular Combi Plastic, 16A, 1x3P+N+E, 250x300x160, 2x10/16A, IP44
- Product ID: 2CMA168997R1000
- Extended Product Type: 2CMA168997R1000
- Product Net Weight: 3 kg
- Product Net Width: 250 mm
- Product Net Height: 154 mm
- Product Net Depth: 154 mm
- Product Main Type: MP
- Product Name: Modular Combi
- Degree of Protection: acc. to IEC 60529 IP44
- Standards: IEC 60309-1,-2
- Number of Poles: 5
- Rated Current (I<sub>n</sub>): 16 A
- Function: Combination box
- Suitable For: MPR16 Modular Combi Plastic
- Product Net Length: 360 mm
- Rated Voltage (U<sub>r</sub>): 230 400 V
- Country of Origin: Czech Republic (CZ)
- Enclosure Material: Thermoplastic
- Environmental Information: 2CMC700001D0002
- Protection Type: Splashproof
- Rated Residual Current: 30mA
- EAN: 7392696689977
- Minimum Order Quantity: 1 piece
- Package Level 1 Width: 210 mm
- Package Level 1 Length: 270 mm
- Package Level 1 Height: 490 mm
- Package Level 1 Gross Weight: 3.32 kg
- Package Level 1 EAN: 7392696689977
- Package Level 1 Units: 1 piece
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2007 Q1
- Declaration of Conformity - CE: 2CMC711006D0001
- RoHS Information: 2CMC700057D0001
- Additional Information: Cable entry,4 knock-outs at the top,suitable for 2xØ40mm and 2xØ25mm,at the bottom 3xØ47mm
- IIT Publishing Status: Level 0 - Information enabled
- Invoice Description: Ind. P&S#MPR16
- Number of RCD 30mA: 2
- Number of RCDs: 2
- Number of Schuko Outlets: 2
- Object Classification Code: 2CMT005069
- RoHS Date: L23
- Suitable for Product Class: Industrial Plugs and Sockets
- E-nummer: 2466345
- UNSPSC: 39120000
