MS132-1.6-HKF1-11

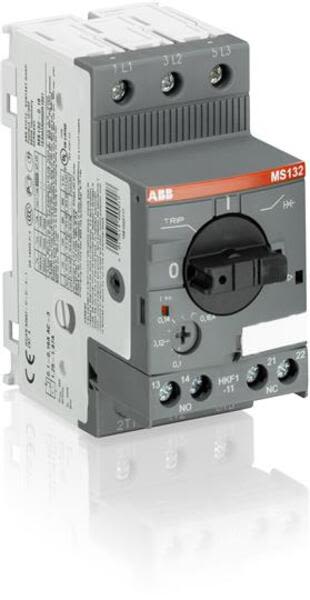

ABB - Manual Motor Starter | MS132-1.6-HKF1-11

Current response time:

4 Minutes 55 Seconds

Description: Manual Motor Starter | MS132-1.6-HKF1-11
Product ID: 1SAM350005R1006
Extended Product Type: 1SAM350005R1006
Product Net Weight: 0.281 kg
Product Net Width: 45 mm
Product Net Height: 90 mm
Product Net Depth: 86.75 mm
Degree of Protection: Housing IP20 Main Circuit Terminals IP10
Ambient Air Temperature: Around the Enclosure 0 ... +40 °C Operation -25 ... +70 °C Operation Compensated -25 ... +60 °C Storage -50 ... +80 °C
Standards: IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1
Rated Impulse Withstand Voltage (Uimp): Main Circuit 6 kV
Rated Insulation Voltage (Ui): 690 V
Number of Poles: 3
Rated Frequency (f): Main Circuit 50 Hz Main Circuit 60 Hz
Power Loss: at Rated Operating Conditions per Pole 0.6 ... 1.7 W
Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
eClass: 7.0 27370401
Tightening Torque: Main Circuit 0.8 ... 1.2 N·m
Actuator Type: Rotary Handle
Mounting Position: Position 1 to 6
Mechanical Durability: 100000 cycle
Connecting Capacity Main Circuit: Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm² Flexible 1/2x 0.75 ... 2.5 mm² Rigid 1/2x 1 ... 4 mm²
GOST Certificate: 1SAA963001-2702
Maximum Operating Voltage UL/CSA: Main Circuit 600 V AC Auxiliary Circuit 250 V AC/DC
Contact Position Indication: ON / OFF / TRIP
Maximum Operating Altitude Permissible: 2000 m
Tightening Torque UL/CSA: Auxiliary Circuit 7 in·lb Main Circuit 10 ... 12 in·lb
Connecting Capacity Auxiliary Circuit: Flexible with Ferrule 1/2x 0.75 ... 1.5 mm² Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm² Flexible 1/2x 0.75 ... 1.5 mm² Rigid 1/2x 1 ... 1.5 mm²
Wire Stripping Length: Auxiliary Circuit 8 mm Main Circuit 9 mm
GL Certificate: 1SAA963001-0401
Connecting Capacity Main Circuit UL/CSA: Flexible 1/2x 16-12 AWG Stranded 1/2x 16-12 AWG
Ampere Rating UL/CSA: 1.6 A
Horsepower Rating UL/CSA: (440 ... 480 V AC) Three Phase 0.75 Hp (550 ... 600 V AC) Three Phase 0.75 Hp
General Use Rating UL/CSA: (600 V AC) 1.6 A
Electrical Durability: 50000 cycle
EAN: 4013614404467
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85362010
Package Level 1 Width: 92 mm
Package Level 1 Length: 95 mm
Package Level 1 Height: 50 mm
Package Level 1 Gross Weight: 0.296 kg
Package Level 2 Units: 40 piece
Package Level 2 Width: 280 mm
Package Level 2 Length: 395 mm
Package Level 2 Height: 210 mm

Package Level 2 Gross Weight: 12.226 kg
Package Level 2 EAN: 4013614409110
Package Level 1 Units: 1 piece
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (230 V AC) 100 kA (400 V AC) 100 kA (440 V AC) 100 kA (500 V AC) 100 kA (690 V AC) 100 kA
Rated Instantaneous Short-Circuit Current Setting (Ii): 20 A
Setting Range: 1 ... 1.6 A
Rated Operational Power AC-3 (Pe): (400 V) Three Phase 0.55 kW
Rated Operational Voltage: Main Circuit 690 V AC Main Circuit 250 V DC
Rated Operational Current (Ie): 1.6 A
Rated Operational Current AC-3 (Ie): 1.6 A
Rated Operational Current DC-5 (Ie): 1.6 A
Mounted Auxiliary Contacts: 1 NO, 1 NC
Conventional Free-air Thermal Current (Ith): Main Circuit 1.6 A
Pollution Degree: 3
Recommended Screw Driver: Pozidriv 2
Rated Service Short-Circuit Breaking Capacity (Ics): (230 V AC) 100 kA (250 V DC) 3 Poles in Series 10 kA (400 V AC) 100 kA (440 V AC) 100 kA (500 V AC) 100 kA (690 V AC) 100 kA
Ambient Air Temperature Compensation: Yes
Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 25g
Resistance to Vibrations acc. to IEC 60068-2-6: 5g / 3 ... 150 Hz
RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
Connecting Capacity Auxiliary Circuit UL/CSA: Flexible 1/2x 16-14 AWG Stranded 1/2x 16-14 AWG
Contact Rating UL/CSA: B300 R300
Data Sheet, Technical Information (Part 2): 1SAM300505F0006
Data Sheet, Technical Information (Part 3): 1SAM300507F0001 1SAM300507F0003 1SAM300508F0001 1SAM300508F0003
Instructions and Manuals: 2CDC131022M6802
ABS Certificate: 1SAA963001-0101
ATEX Certificate: 1SAA963000-3901
BV Certificate: 1SAA963001-0201
CB Certificate: 1SAA963002-2001
CCC Certificate: 1SAA963001-3802
cUL Certificate: UL_E137861 UL_E345003
cULus Certificate: cUL_E137861
Data Sheet, Technical Information: 2CDC131021D0201
Declaration of Conformity - CE: 1SAD938510-0125
DNV Certificate: 1SAA963001-0303
EAC Certificate: 1SAA963000-2701
LR Certificate: 1SAA963001-0502
RINA Certificate: 1SAA963000-0802
RMRS Certificate: 1SAA918000-0703
RoHS Information: 1SAA963002-4405
UL Certificate: UL_E137861 UL_E345003
ETIM 4: EC000074 - Motor protective circuit-breaker
ETIM 5: EC000074 - Motor protective circuit-breaker
ETIM 6: EC000074 - Motor protection circuit-breaker
UNSPSC: 39121521
Object Classification Code: F

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MS132-1.6-HKF1-11 . Santa Clara Systems carries 36,972 items from ABB.

Undervoltage Releases
Shunt Trips
3-Phase Bus Bars
Power In-Feed Blocks Are Available As Accessory.

The Ms132-1.6-Hkf1-11 Manual Motor Starter Is A Compact 45 Mm Width Devices With A Rated Operational Current Of Ie = 1.60 A And A Pre-Assembled Front Mounted Auxiliary Contact Hkf1-11. This Device Is Used To Manually Switch On And Off Motors And To Protect Them Reliably And Without The Need For A Fuse From Short-Circuits
Overload And Phase Failures. The Manual Motor Starter Offers A Rated Service Short-Circuit Breaking Capacity Ics = 100 Ka At 400 Vac And The Trip Class 10. Further Features Are The Build-In Disconnect Function
Temperature Compensation
Trip-Free Mechanism And A Rotary Handle With A Clear Switch Position Indication. The Manual Motor Starter Is Suitable For Three- And Single-Phase Applications. The Handle Is Lockable To Protect Against Unauthorized Changes. Auxiliary Contacts
Signalling Contacts
