MS451-16

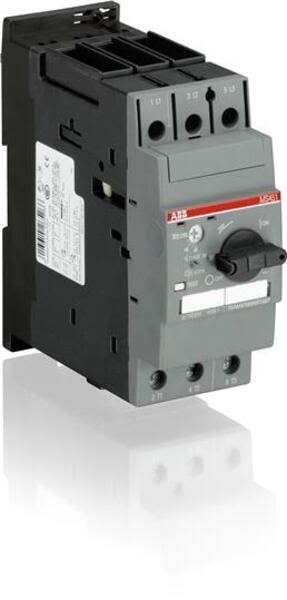

ABB - MS451-16 Manual Motor Starter

Current response time:

By 5AM PT on Monday

Emergency?

Description: MS451-16 Manual Motor Starter
Product ID: 1SAM470000R1001
Extended Product Type: 1SAM470000R1001
Product Net Weight: 1.067 kg
Product Net Width: 55 mm
Product Net Height: 140 mm
Product Net Depth: 149 mm
Degree of Protection: Housing IP20 Main Circuit Terminals IP00
Ambient Air Temperature: Operation -20 ... +70 °C Operation Compensated -20 ... +60 °C Storage -50 ... +80 °C
Standards: IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 UL 508 CSA 22.2 No. 14
Rated Impulse Withstand Voltage (Uimp): Main Circuit 6 kV
Rated Insulation Voltage (Ui): 690 V
Number of Poles: 3
Rated Frequency (f): Main Circuit 50 Hz Main Circuit 60 Hz
Power Loss: at Rated Operating Conditions per Pole 1.9 … 4.0 W
Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
eClass: 7.0 27370401
Tightening Torque: Main Circuit 3 ... 4.5 N·m
Actuator Type: Rotary Handle
Mounting Position: Position 1 to 6
Mechanical Durability: 50000 cycle
Connecting Capacity Main Circuit: Flexible with Ferrule 1x 0.75 ... 25 mm² Flexible with Ferrule 2x 0.75 ... 16 mm² Solid 1/2x 0.75 ... 16 mm² Stranded 1x 0.75 ... 35 mm² Stranded 2x 0.75 ... 25 mm²
GOST Certificate: 1SAA963001-2702
Maximum Operating Voltage UL/CSA: Main Circuit 600 V AC
Contact Position Indication: ON / OFF / TRIP
Maximum Operating Altitude Permissible: 2000 m
Tightening Torque UL/CSA: Main Circuit 27 ... 40 in·lb
Wire Stripping Length: Main Circuit 13 mm
GL Certificate: 1SAA937000-0404
Connecting Capacity Main Circuit UL/CSA: Flexible 2x 18-2 AWG Stranded 2x 18-2 AWG
Ampere Rating UL/CSA: 16 A
Horsepower Rating UL/CSA: (200 V AC) Three Phase 5 Hp (208 V AC) Three Phase 5 Hp (220 ... 240 V AC) Three Phase 5 Hp (440 ... 480 V AC) Three Phase 10 Hp (550 ... 600 V AC) Three Phase 15 Hp
General Use Rating UL/CSA: (600 V AC) 16 A
Electrical Durability: 25000 cycle
EAN: 4013614265204
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85362010
Package Level 1 Width: 62.5 mm

Package Level 1 Length: 165 mm
Package Level 1 Height: 147 mm
Package Level 1 Gross Weight: 1.079 kg
Package Level 1 Units: 1 piece
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (230 V AC) 100 kA (400 V AC) 50 kA (440 V AC) 50 kA (500 V AC) 14 kA (690 V AC) 5 kA
Rated Instantaneous Short-Circuit Current Setting (Ii): 208 A
Setting Range: 11 ... 16 A
Rated Operational Power AC-3 (Pe): (400 V) Three Phase 7.5 kW
Rated Operational Voltage: Main Circuit 690 V AC Main Circuit 450 V DC
Rated Operational Current (Ie): 16 A
Rated Operational Current AC-3 (Ie): 16 A
Conventional Free-air Thermal Current (Ith): Main Circuit 16 A
Pollution Degree: 3
Recommended Screw Driver: M5 Pozidriv 2
Rated Service Short-Circuit Breaking Capacity (Ics): (230 V AC) 100 kA (400 V AC) 25 kA (440 V AC) 25 kA (500 V AC) 6 kA (690 V AC) 3 kA
Ambient Air Temperature Compensation: Yes
Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 25g
Resistance to Vibrations acc. to IEC 60068-2-6: 2g / 5 ... 150 Hz
RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
Data Sheet, Technical Information (Part 2): 1SAM400502F0001
Data Sheet, Technical Information (Part 3): 9AKK105713A1101
Instructions and Manuals: 1SAM407001R1001
BV Certificate: 1SAA937000-0201
CCC Certificate: 1SAA937000-3803
cUL Certificate: cUL_E195536
Data Sheet, Technical Information: 1SBC100173C0201
Declaration of Conformity - CE: 1SAD938502-0050
DNV Certificate: 1SAA937000-0301
EAC Certificate: 1SAA937001-2703
LR Certificate: 1SAA937000-0504
RMRS Certificate: 1SAA918000-0703
RoHS Information: 1SAA918002-4401
UL Certificate: UL_E167205 UL_E195536
ETIM 4: EC000074 - Motor protective circuit-breaker
ETIM 5: EC000074 - Motor protective circuit-breaker
ETIM 6: EC000074 - Motor protection circuit-breaker
UNSPSC: 39121521
Object Classification Code: F

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MS451-16 . Santa Clara Systems carries 37,005 items from ABB.

Undervoltage Releases
Shunt Trips
3-Phase Bus Bars
Power In-Feed Blocks Are Available As Accessory.

The Ms451-16 Manual Motor Starter Is A 55 Mm Width Devices With A Rated Operational Current Of Ie = 16.0 A. This Device Is Used To Manually Switch On And Off Motors And To Protect Them Reliably And Without The Need For A Fuse From Short-Circuits
Overload And Phase Failures. The Manual Motor Starter Offers A Rated Service Short-Circuit Breaking Capacity Ics = 25 Ka At 400 Vac And The Trip Class 20. Further Features Are The Build-In Disconnect Function
Temperature Compensation
Trip-Free Mechanism And A Rotary Handle With A Clear Switch Position Indication. The Manual Motor Starter Is Suitable For Three- And Single-Phase Applications. The Handle Is Lockable To Protect Against Unauthorized Changes. Auxiliary Contacts
Signalling Contacts
