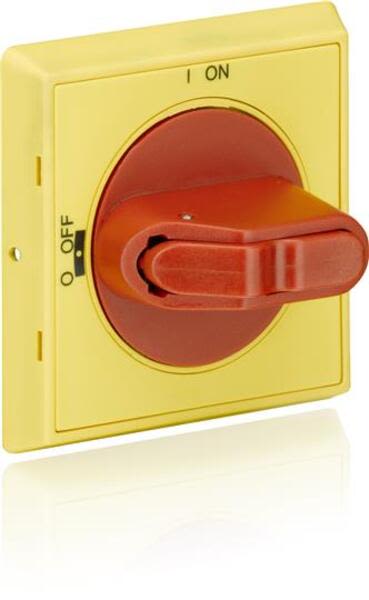

Description: Handle | MSHD-LY
Product ID: 1SAM201920R1002
Extended Product Type: 1SAM201920R1002
Product Net Weight: 0.065 kg
Product Net Width: 65.6 mm
Product Net Height: 65.5 mm
Product Net Depth: 57.9 mm
Product Name: Handles
Degree of Protection: IP64
Color: yellow/red
Suitable For: MS116 MS132 MO132 MS450 MS451 MS495 MS496 MS497 MO450 MO495 MO496
eClass: 7.0 27379201
Tightening Torque: 0.12 N·m
Actuator Type: Rotary Handle
Contact Position Indication: ON / OFF
Tightening Torque UL/CSA: 1.06 in·lb
EAN: 4013614441837
Minimum Order Quantity: 1 piece

Customs Tariff Number: 85389099
Package Level 1 Length: 70 mm
Package Level 1 Height: 170 mm
Package Level 1 Gross Weight: 0.1 kg
Package Level 1 Units: 1 piece
Package Level 1 Width: 130 mm
Shaft Diameter: 6x6 mm
Suitable for Product Class: Manual Motor Starter
RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
Enclosure Type UL/CSA: 1 12 3R
Instructions and Manuals: 2CDC131033M6801
Data Sheet, Technical Information: 1SBC100173C0201
Declaration of Conformity - CE: 1SAD938516-0060 1SAD938502-0188 1SAD938504-0183 1SAD938510-0125 1SAD938504-0021
RoHS Information: 1SAA963001-4407
E-nummer: 3112089
ETIM 4: EC002498 - Accessories for low-voltage switch technology
ETIM 5: EC002498 - Accessories for low-voltage switch technology
ETIM 6: EC002498 - Accessories for low-voltage switch technology
