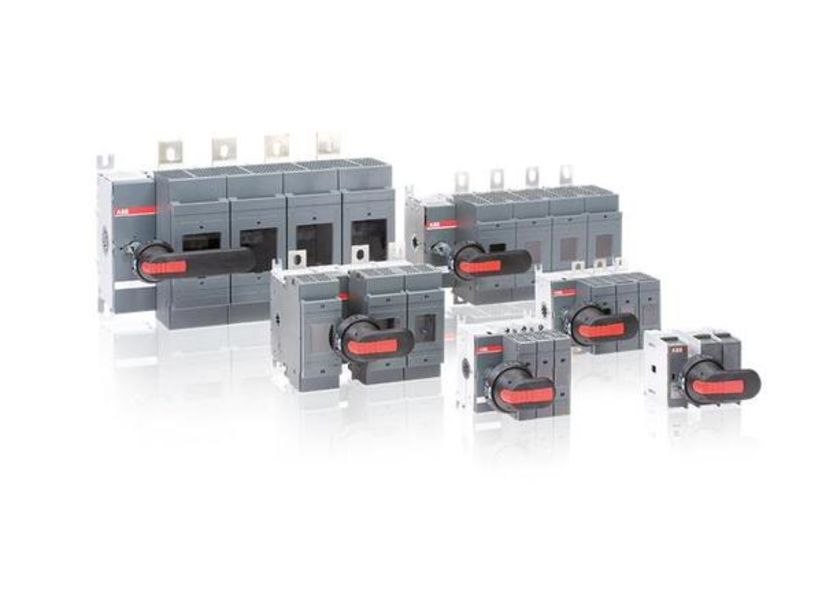

- Description: OS1250D03 Switch fuse
- Product ID: 1SCA105474R1001
- Extended Product Type: 1SCA105474R1001
- Product Net Weight: 45 kg
- Product Net Width: 429 mm
- Product Net Height: 356 mm
- Product Net Depth: 294 mm
- Product Main Type: OS1250
- Product Name: Switch fuse
- Standards: IEC
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 12 kV
- Rated Insulation Voltage (U<sub>i</sub>): 1000 V
- Number of Poles: 3
- Terminal Type: Lug terminals
- Power Loss: 75 W
- Mounting Type: Normal
- Handle Type: Not included
- Switches Operating Mechanism: Mechanism at the End of the Switch
- Position of Line Terminals: Top In - Bottom Out
- Fuse Size: 4,4a
- Operating Mode: Front Operated
- Fuse Type: DIN
- EAN: 6417019394190
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 440 mm
- Package Level 1 Height: 565 mm
- Package Level 1 Length: 700 mm
- Package Level 1 Gross Weight: 53 kg
- Package Level 1 EAN: 6417019394190
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
- Conventional Free-air Thermal Current (I<sub>th</sub>): q = 40 °C 1250 A
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 1250 A
- Fuse System: DIN
- IIT Publishing Status: Level 0 - Information enabled
- Includes: None
- Pollution Degree: 3
- Rated Operational Current AC-21A (I<sub>e</sub>): (500 V) 1250 A (690 V) 1250 A
- Rated Operational Current AC-22A (I<sub>e</sub>): (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A
- Rated Operational Current AC-23A (I<sub>e</sub>): (380 ... 415 V) 1000 A (500 V) 1000 A (690 V) 1000 A
- Rated Operational Power AC-23A (P<sub>e</sub>): (220 ... 240 V) 315 kW (400 V) 560 kW (415 V) 560 kW (500 V) 710 kW (690 V) 1000 kW
- Rated Operational Voltage: 690 V AC
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 40 kiloampere rms
- Data Sheet, Technical Information: 1SCC311013C0201
- Declaration of Conformity - CE: 1SCC311127D0202
- ETIM 5: EC001040 - Fuse switch disconnector
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OS1250D03 . Santa Clara Systems carries 36,972 items from ABB.
- Including Terminal Bolt Kit As Standard. The Handle And Shaft Have To Be Ordered Separately.
