OT200U12P

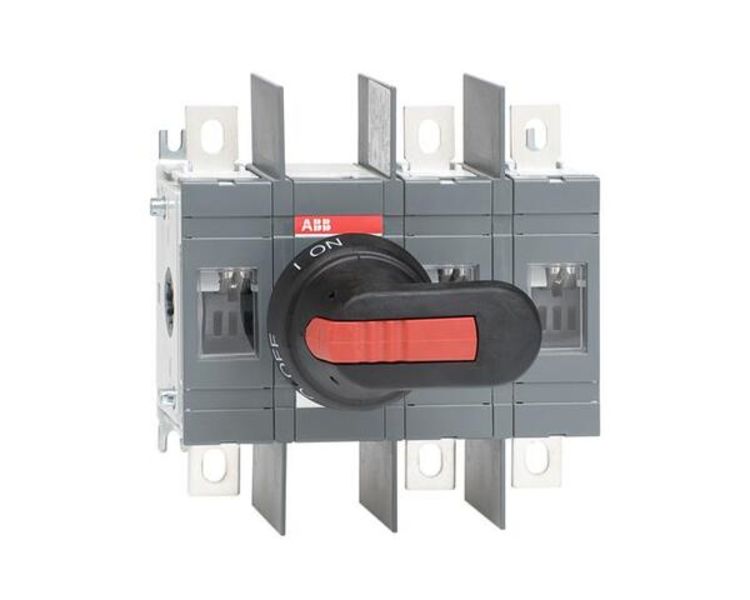

ABB - Non-Fusible Disconnect Switch | 1SCA022752R2010

Product Summary:

Product ID: 1SCA022752R2010
Extended Product Type: 1SCA022752R2010
Product Net Weight: 1.8 kg
Product Net Width: 170 mm
Product Net Height: 150 mm

Current response time:

4 Minutes 9 Seconds

Description: Non-Fusible Disconnect Switch | 1SCA022752R2010
Product ID: 1SCA022752R2010
Extended Product Type: 1SCA022752R2010
Product Net Weight: 1.8 kg
Product Net Width: 170 mm
Product Net Height: 150 mm
Product Net Depth: 84 mm
Product Main Type: OT200U
Product Name: Switch-disconnector
Standards: IEC&UL
Rated Impulse Withstand Voltage (Uimp): 12 kV
Rated Insulation Voltage (Ui): 1000 V
Number of Poles: 3
Terminal Type: Lug terminals
Power Loss: at Rated Operating Conditions per Pole 4 W
Tightening Torque: Wire-Clamp 15 ... 22 N·m
Dielectric Test Voltage: 10000 V
GL Certificate: 1SCC301139D0201
Mounting Type: Normal
Handle Type: Pistol
Ampere Rating UL/CSA: 200 A
Horsepower Rating UL/CSA: (acc. to UL 200 V) 60 Hp (acc. to UL 208 V) 60 Hp (acc. to UL 240 V) 75 Hp (acc. to UL 480 V) 150 Hp (acc. to UL 600 V) 200 Hp
Switches Operating Mechanism: Mechanism at the End of the Switch
Position of Line Terminals: Top In - Bottom Out
Special Functions: No
Operating Mode: Front Operated
EAN: 6417019244419
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85365080

Package Level 1 Units: 1 piece
Package Level 1 Width: 183 mm
Package Level 1 Height: 95 mm
Package Level 1 Length: 240 mm
Package Level 1 Gross Weight: 1.8 kg
Package Level 1 EAN: 6417019244419
RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-06-01
Conventional Free-air Thermal Current (Ith): q = 40 °C 200 A
Conventional Thermal Current (Ithe): Fully Enclosed 200 A
Earthing Switch Type: No Additional Type
IIT Publishing Status: Level 0 - Information enabled
Includes: Handle and Shaft
Pollution Degree: 3
Rated Operational Current AC-21A (Ie): (380 ... 415 V) 200 A (500 V) 200 A (690 V) 200 A
Rated Operational Current AC-21B (Ie): (690 V) 200 A (500 V) 200 A (380 ... 415 V) 200 A
Rated Operational Current AC-22A (Ie): (380 ... 415 V) 200 A (500 V) 200 A (690 V) 200 A
Rated Operational Current AC-22B (Ie): (690 V) 200 A (500 V) 200 A (415 V) 200 A
Rated Operational Current AC-23A (Ie): (690 V) 200 A (500 V) 200 A (380 ... 415 V) 200 A
Rated Operational Current AC-23B (Ie): (690 V) 200 A (500 V) 200 A (380 ... 415 V) 200 A
Rated Operational Power AC-23A (Pe): (690 V) 200 kW (500 V) 132 kW (400 ... 415 V) 110 kW (400 V) 110 kW (220 ... 240 V) 60 kW
Rated Short-time Withstand Current (Icw): for 1 s 8000 A
Terminal Width: 20 mm
BV Certificate: 1SCC301103D0201
Data Sheet, Technical Information: 1SCC301020C0201
Declaration of Conformity - CE: 1SCC301137D0201
LR Certificate: 1SCC301144D0201
RoHS Information: 1SCC301149D0202
ETIM 5: EC000216 - Switch disconnector
Object Classification Code: Q
