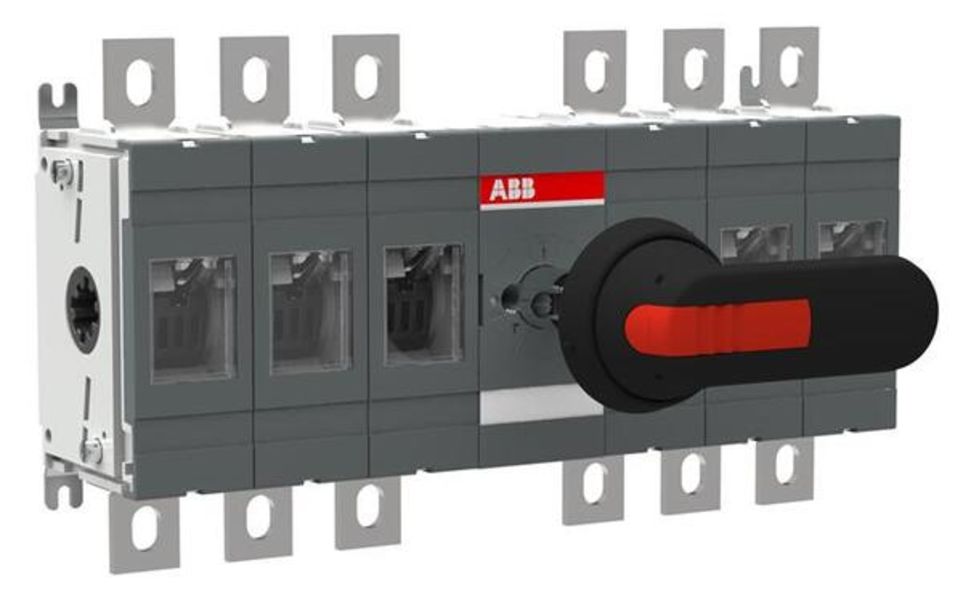

- Description: OT315E33P switch-disconnector
- Product ID: 1SCA103723R1001
- Extended Product Type: 1SCA103723R1001
- Product Net Weight: 4.9 kg
- Product Net Width: 328 mm
- Product Net Height: 185 mm
- Product Net Depth: 107 mm
- Product Main Type: OT315
- Product Name: Switch-disconnector
- Standards: IEC
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 12 kV
- Rated Insulation Voltage (U<sub>i</sub>): 1000 V
- Number of Poles: 6
- Terminal Type: Lug terminals
- Power Loss: at Rated Operating Conditions per Pole 6.5 W
- Mounting Type: Normal
- Handle Type: Pistol
- Switches Operating Mechanism: Mechanism Between the Poles
- Position of Line Terminals: Top In - Bottom Out
- Special Functions: No
- Operating Mode: Front Operated
- EAN: 6417019380995
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 230 mm
- Package Level 1 Height: 110 mm
- Package Level 1 Length: 325 mm
- Package Level 1 Gross Weight: 4.9 kg
- Package Level 1 EAN: 6417019380995
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-06-01
- Conventional Free-air Thermal Current (I<sub>th</sub>): q = 40 C 315 A
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 315 A
- Earthing Switch Type: No Additional Type
- IIT Publishing Status: Level 0 - Information enabled
- Includes: Handle and Shaft
- Pollution Degree: 3
- Rated Operational Current DC-21B (I<sub>e</sub>): (550 V) 315 A (750 V) 315 A (800 V) 315 A (1000 V) 315 A
- Rated Operational Voltage: 1000 V
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 15 kiloampere rms
- Data Sheet, Technical Information: 1SCC301020C0201
- Declaration of Conformity - CE: 1SCC301135D0202
- RoHS Information: 1SCC301149D0202
- ETIM 5: EC000216 - Switch disconnector
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OT315E33P . Santa Clara Systems carries 36,836 items from ABB.
- Padlockable In The Off Position And With Door Interlock In The On-Position. The Shaft Is Adjustable For A Depth Of Installation Ranges.
- Including Terminal Bolt Kit
- A Black On-Off Plastic Handle And Shaft As Standard. The Handle Is Ip65 Protected
