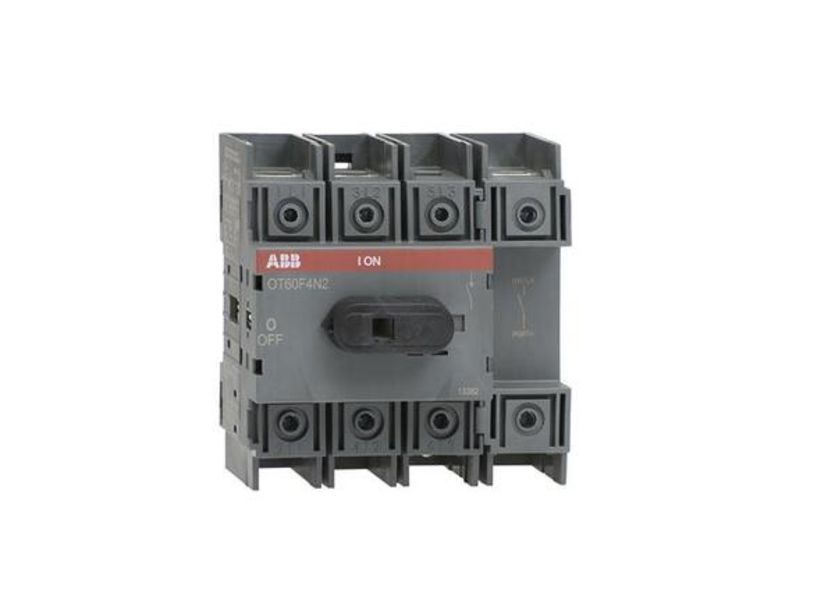

- Description: OT60F4N2 switch-disconnector
- Product ID: 1SCA108348R1001
- Extended Product Type: 1SCA108348R1001
- Product Net Weight: 0.5 kg
- Product Net Width: 97 mm
- Product Net Height: 74 mm
- Product Net Depth: 100 mm
- Product Main Type: OT30
- Product Name: Switch-disconnector
- Standards: IEC
- Number of Poles: 4
- Terminal Type: Screw Terminals
- Power Loss: at Rated Operating Conditions per Pole 0.36 W
- Mounting Type: Modular
- Handle Type: None
- Order Multiple: 10 piece
- Cable Cross-Section: 2.5…25 mm²
- Ampere Rating UL/CSA: 60 A
- Horsepower Rating UL/CSA: (acc. to UL 200 V) 20 Hp (acc. to UL 208 V) 20 Hp (acc. to UL 240 V) 20 Hp (acc. to UL 480 V) 40 Hp (acc. to UL 600 V) 40 Hp
- Switches Operating Mechanism: Mechanism on Top of the Switch
- Position of Line Terminals: Top In - Bottom Out
- Special Functions: No
- Operating Mode: Front Operated
- EAN: 6417019416496
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 109 mm
- Package Level 1 Height: 86 mm
- Package Level 1 Length: 112 mm
- Package Level 1 Gross Weight: 0.5 kg
- Package Level 1 EAN: 6417019416496
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q3
- Earthing Switch Type: No Additional Type
- IIT Publishing Status: Level 0 - Information enabled
- Includes: None
- Pollution Degree: 3
- Rated Operational Current AC-21A (I<sub>e</sub>): (380 ... 415 V) 63 A (690 V) 63 A (500 V) 63 A
- Rated Operational Current AC-22A (I<sub>e</sub>): (500 V) 63 A
- Rated Operational Current AC-23A (I<sub>e</sub>): (500 V) 63 A (690 V) 40 A (380 ... 415 V) 45 A
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 2.5 kiloampere rms
- Data Sheet, Technical Information: 1SCC301020C0201
- Declaration of Conformity - CE: 1SCC301010D0201
- RoHS Information: 1SCC301183D0201
- ETIM 5: EC000216 - Switch disconnector
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OT60F4N2 . Santa Clara Systems carries 37,000 items from ABB.
- Front Operated Switch-Disconnector. Types Ot 16...125 Include Protected Terminal Clamps
- Front Operated Switch-Disconnector. Types Ot 16...125 Include Protected Terminal Clamps
- Ip 20.
