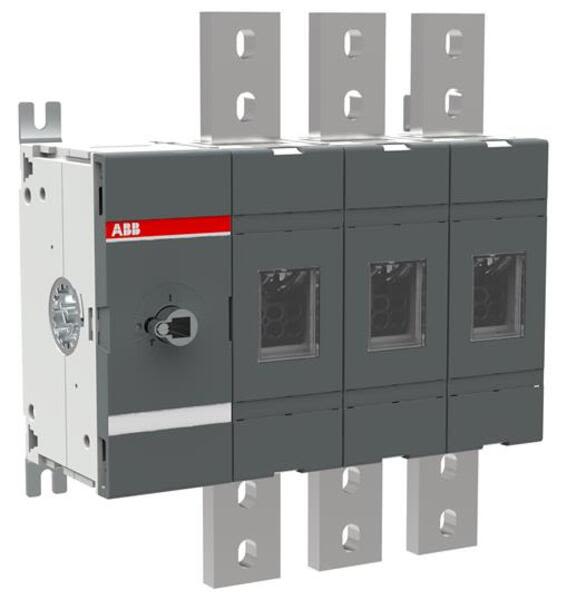

- Description: Non-Fusible Disconnect Switch | 1SCA105635R1001
- Product ID: 1SCA105635R1001
- Extended Product Type: 1SCA105635R1001
- Product Net Weight: 18 kg
- Product Net Width: 266 mm
- Product Net Height: 372 mm
- Product Net Depth: 127 mm
- Product Main Type: OT800U
- Product Name: Switch-disconnector
- Standards: IEC&UL
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 12 kV
- Rated Insulation Voltage (U<sub>i</sub>): 1000 V
- Number of Poles: 3
- Terminal Type: Lug terminals
- Power Loss: 29 W
- Mounting Type: Normal
- Handle Type: None
- Ampere Rating UL/CSA: 800 A
- Horsepower Rating UL/CSA: (acc. to UL 240 V) 200 Hp (acc. to UL 480 V) 500 Hp (acc. to UL 600 V) 500 Hp
- Switches Operating Mechanism: Mechanism at the End of the Switch
- Special Functions: No
- Operating Mode: Front Operated
- EAN: 6417019395586
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 400 mm
- Package Level 1 Height: 170 mm
- Package Level 1 Length: 435 mm
- Package Level 1 Gross Weight: 18 kg
- Package Level 1 EAN: 6417019395586
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
- Earthing Switch Type: No Additional Type
- IIT Publishing Status: Level 0 - Information enabled
- Includes: None
- Pollution Degree: 3
- Rated Operational Current AC-22A (I<sub>e</sub>): (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A
- Rated Operational Current AC-23A (I<sub>e</sub>): (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A
- Rated Operational Voltage: 1000 V
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 50 kiloampere rms
- Data Sheet, Technical Information: 1SCC301020C0201
- Declaration of Conformity - CE: 1SCC301161D0202
- ETIM 5: EC000216 - Switch disconnector
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OT800U03 . Santa Clara Systems carries 37,315 items from ABB.
- Handle And Shaft Must Be Ordered Separatly.
