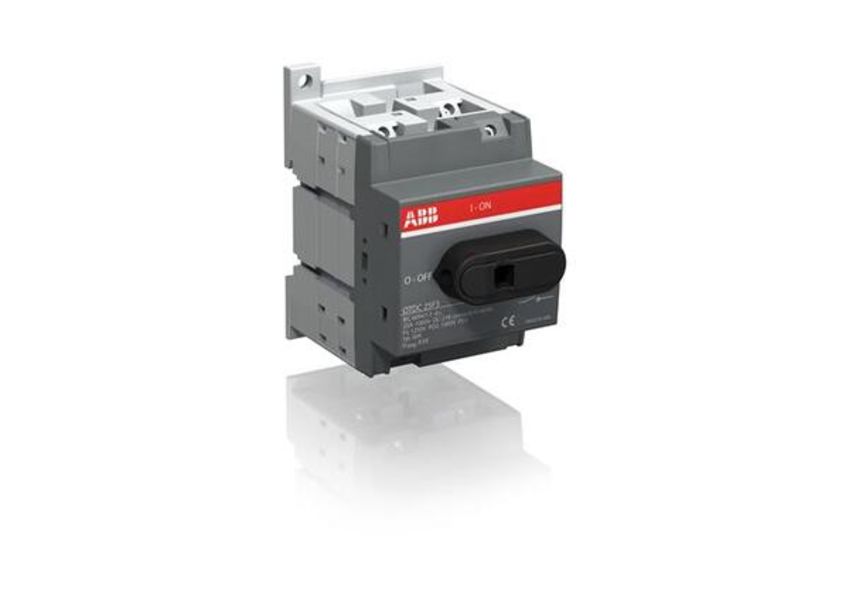

- Description: OTDC25F3 DC Switch-disconnector
- Product ID: 1SCA121458R1001
- Extended Product Type: 1SCA121458R1001
- Product Net Weight: 0.18 kg
- Product Net Width: 52.5 mm
- Product Net Height: 89 mm
- Product Net Depth: 78 mm
- Product Main Type: OTDC25
- Product Name: DC Switch-disconnector
- Standards: IEC
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 8 kV
- Rated Insulation Voltage (U<sub>i</sub>): 1000 V
- Number of Poles: 3
- Terminal Type: Screw Terminals
- Power Loss: at Rated Operating Conditions per Pole 0.3 W
- Mounting Type: Modular
- Handle Type: None
- Cable Cross-Section: 2.516 mm
- Switches Operating Mechanism: Mechanism on Top of the Switch
- Position of Line Terminals: Top In - Bottom Out
- Special Functions: No
- Operating Mode: Front Operated
- EAN: 6417019526133
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 64 mm
- Package Level 1 Height: 100 mm
- Package Level 1 Length: 100 mm
- Package Level 1 Gross Weight: 0.2 kg
- Package Level 1 EAN: 6417019526133
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q3
- Conventional Free-air Thermal Current (I<sub>th</sub>): q = 40 C 32 A
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 32 A
- Earthing Switch Type: No Additional Type
- IIT Publishing Status: Level 0 - Information enabled
- Includes: None
- Pollution Degree: 3
- Rated Operational Current DC-21B (I<sub>e</sub>): (1000 V) 25 A
- Rated Operational Voltage: 1000 V
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 0.6 kiloampere rms
- Data Sheet, Technical Information: 1SCC301021C0201
- Declaration of Conformity - CE: 1SCC340047D0201
- E-nummer: 3134020
- ETIM 5: EC000216 - Switch disconnector
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OTDC25F3 . Santa Clara Systems carries 36,687 items from ABB.
- Types Otdc16...32 Include Protected Terminal Clamps
- Types Otdc16...32 Include Protected Terminal Clamps
- Ip 20. Shafts And Handles Need To Be Ordered Separetely. The Type And The Ordering Numbers Are For One Piece.
