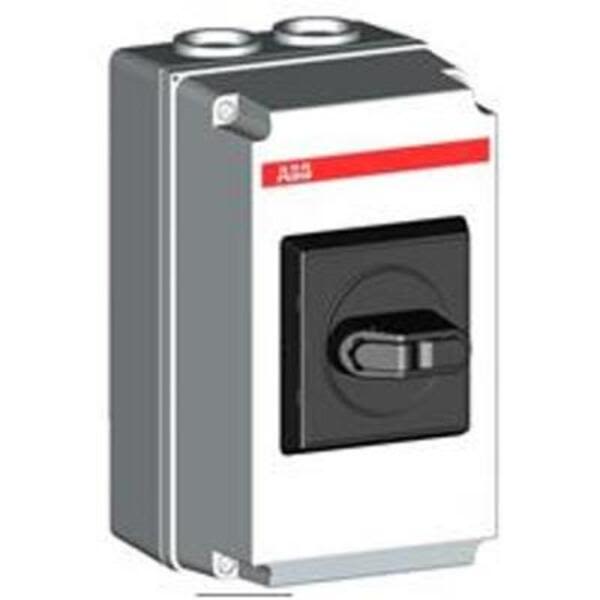

- Description: OTDCP25S22M Enclosed solar switch
- Product ID: 1SCA125092R1001
- Extended Product Type: 1SCA125092R1001
- Product Net Weight: 0.63 kg
- Product Net Width: 95 mm
- Product Net Height: 150 mm
- Product Net Depth: 95 mm
- Product Main Type: OT25
- Product Name: Enclosed solar switch
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 8 kV
- Rated Insulation Voltage (U<sub>i</sub>): 1250 V
- Number of Poles: 2
- Power Loss: at Rated Operating Conditions per Pole 0.3 W
- Cable Cross-Section: 2.516 mm
- Switches Operating Mechanism: Mechanism on Top of the Switch
- EAN: 6417019553481
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 152 mm
- Package Level 1 Height: 138 mm
- Package Level 1 Length: 203 mm
- Package Level 1 Gross Weight: 0.7 kg
- Package Level 1 EAN: 6417019553481
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
- Catalog Number: 1SCA125092R1001
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 25 A
- IIT Publishing Status: Level 0 - Information enabled
- Pollution Degree: 3
- Rated Operational Current DC-21B (I<sub>e</sub>): (1000 V) 25 A
- Rated Operational Voltage: 1000 V
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 0.4 kiloampere rms
- Data Sheet, Technical Information: 1SCC301021C0201
- Declaration of Conformity - CE: 1SCC340047D0201
- E-nummer: 3134014
- ETIM 5: EC000249 - Protection switch disconnector housing
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OTDCP25S22M . Santa Clara Systems carries 36,687 items from ABB.
- Enclosed Solar Switch Dc21 660v/25a Plastic Enclosure Ip65 Black Selector Handle
