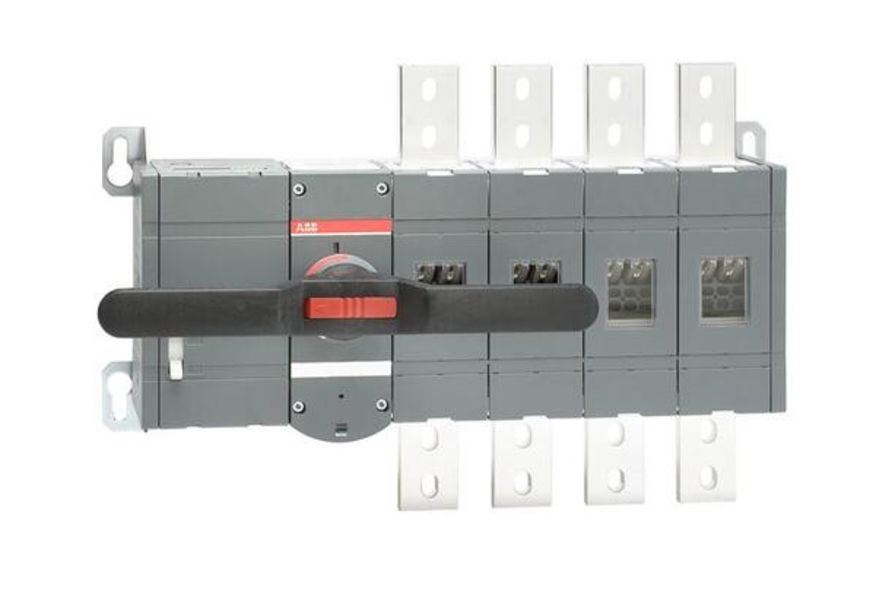

- Description: OTM1600E4M230C Motorized switch-disconnector
- Product ID: 1SCA115369R1001
- Extended Product Type: 1SCA115369R1001
- Product Net Weight: 30 kg
- Product Net Width: 587 mm
- Product Net Height: 372 mm
- Product Net Depth: 202 mm
- Product Main Type: OTM1600
- Product Name: Motorized switch-disconnector
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 12 kV
- Rated Insulation Voltage (U<sub>i</sub>): 1000 V
- Number of Poles: 4
- Power Loss: at Rated Operating Conditions per Pole 48 W
- Switches Operating Mechanism: Mechanism at the End of the Switch
- Position of Line Terminals: Top In - Bottom Out
- EAN: 6417019477398
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 580 mm
- Package Level 1 Height: 200 mm
- Package Level 1 Length: 780 mm
- Package Level 1 Gross Weight: 30 kg
- Package Level 1 EAN: 6417019477398
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2007 Q1
- Conventional Free-air Thermal Current (I<sub>th</sub>): q = 40 °C 1600 A
- IIT Publishing Status: Level 0 - Information enabled
- Pollution Degree: 3
- Rated Operational Current AC-21A (I<sub>e</sub>): (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A
- Rated Operational Current AC-22A (I<sub>e</sub>): (380 ... 415 V) 1600 A (500 V) 1600 A (690 V) 1600 A
- Rated Operational Current AC-23A (I<sub>e</sub>): (380 ... 415 V) 1250 A (500 V) 1250 A (690 V) 1250 A
- Rated Operational Power AC-23A (P<sub>e</sub>): (400 V) 710 kW (415 V) 710 kW (500 V) 900 kW (690 V) 1200 kW
- Rated Operational Voltage: 1000 V
- Rated Short-time Withstand Current (I<sub>cw</sub>): for 1 s 50 kiloampere rms
- Data Sheet, Technical Information: 1SCC301020C0201
- RoHS Information: 1SCC303036D0202
- ETIM 5: EC000216 - Switch disconnector
- Object Classification Code: Q
