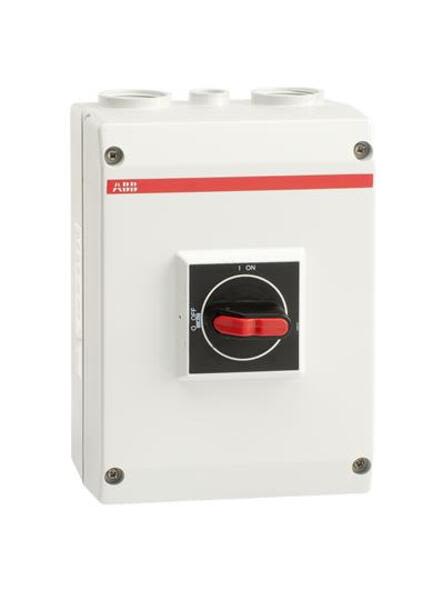

- Description: OTP45B3M Enclosed switch
- Product ID: 1SCA022383R3020
- Extended Product Type: 1SCA022383R3020
- Product Net Weight: 0.9 kg
- Product Net Width: 145 mm
- Product Net Height: 200 mm
- Product Net Depth: 90 mm
- Product Main Type: OT45
- Product Name: Enclosed switch
- Degree of Protection: acc. to IEC 60529 IP65
- Number of Poles: 3
- GL Certificate: 1SCC301042D0201
- Enclosure Material: Plastic
- Position of Line Terminals: Top In - Bottom Out
- Cable Outlets Per Side: 2xM32+M16
- Cable Entry Position: Top and bottom
- EAN: 6417019124933
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 152 mm
- Package Level 1 Height: 138 mm
- Package Level 1 Length: 203 mm
- Package Level 1 Gross Weight: 1 kg
- Package Level 1 EAN: 6417019124933
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
- Conventional Thermal Current (I<sub>the</sub>): Fully Enclosed 50 A
- IIT Publishing Status: Level 0 - Information enabled
- Pollution Degree: 3
- Position of Neutral Terminals: Top In - Bottom Out
- Position of PE Terminals: Top In - Bottom Out
- Rated Operational Current AC-21A (I<sub>e</sub>): (500 V) 63 A (690 V) 63 A (380 ... 415 V) 63 A
- Rated Operational Current AC-22A (I<sub>e</sub>): (500 V) 63 A (690 V) 63 A
- Rated Operational Current AC-23A (I<sub>e</sub>): (380 ... 415 V) 45 A (500 V) 45 A (690 V) 20 A
- Rated Operational Voltage: 750 V
- BV Certificate: 1SCC340018D0202
- Data Sheet, Technical Information: 1SCC340009C0201
- Declaration of Conformity - CE: 1SCC340003D0203
- DNV Certificate: 1SCC340019D0201
- LR Certificate: 1SCC340016D0202
- RoHS Information: 1SCC340034D0201
- ETIM 5: EC000249 - Protection switch disconnector housing
- Object Classification Code: Q
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OTP45B3M . Santa Clara Systems carries 36,836 items from ABB.
- Enclosed Switch 3-P.400v Ac23a 20a Ac22a 63a Plastic Enclosure Ip65 Black Selector Handle
