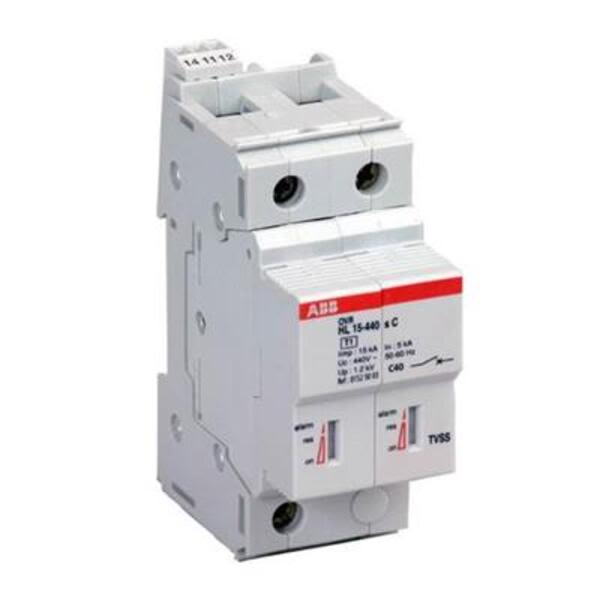

- Description: OVR HL 15-440 S P TS
- Product ID: 2CTB815201R0800
- Extended Product Type: 2CTB815201R0800
- Product Net Weight: 250 g
- Product Net Width: 36 mm
- Product Net Height: 87 mm
- Product Net Depth: 63 mm
- Product Main Type: T1-T2
- Product Name: Surge Protective Devices
- Standards: IEC 61643-1 / EN 61643-11
- Suitable For: To protect the systems against the transient overvoltage (lightning)
- Short-Circuit Protective Devices: Curve B Breakers ≤ 50 A Curve C Breakers ≤ 50 A gL Type Fuses - A gG Type Fuses - A
- Number of Protected Poles: 1
- Version: Plug-in
- EAN: 3660308509802
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363090
- Type of Low Voltage Distribution System: TT TN-C TN-S IT
- Nominal AC Voltage of the System (U<sub>o</sub>): 400 / 690 V
- Arrester Class: I II
- Discharge Current (<sub></sub>): Nominal 5 kA Maximum 100 kA
- Impulse Current: 15 kA
- Maximum Continuous Operating Voltage (U<sub>c</sub>): (L-PE) 440 V (L-L) 440 V (L-N) 440 V (N-PE) - V
- Short Circuit Withstand Icc: 50 kA
- Temporary Overvoltage Test Value (U<sub>T</sub>): 581 V
- Auxiliary Circuit Load: Minimum 12Vdc - 10mA Maximum 250Vac - 1A
- Width in Number of Modular Spacings: 2
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 117 mm
- Package Level 1 Length: 41 mm
- Package Level 1 Height: 82 mm
- Package Level 1 Gross Weight: 270 g
- Package Level 1 EAN: 3660308509802
- Data Sheet, Technical Information: 2CTC431025D1701
- Declaration of Conformity - CE: 2CTC436004G1701
- Instructions and Manuals: 2CTC431029M1701
- UL Certificate: N
- ETIM 4: EC001457 - Combined arrester for power supply systems
- ETIM 5: EC001457 - Combined arrester for power supply systems
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OVR-HL-15-440-S-P-TS . Santa Clara Systems carries 37,000 items from ABB.
