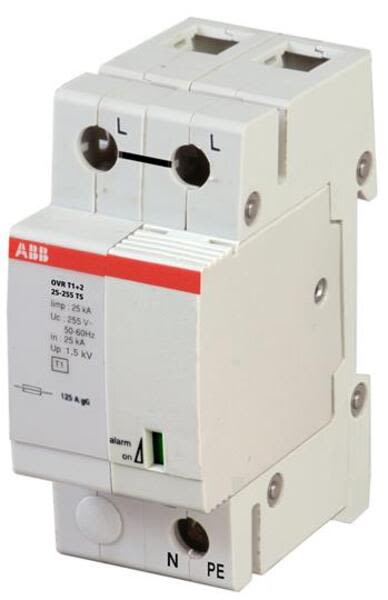

- Description: OVR T1+2 25-255 TS
- Product ID: 2CTB815101R0300
- Extended Product Type: 2CTB815101R0300
- Product Net Weight: 250 g
- Product Net Width: 35.6 mm
- Product Net Height: 93.5 mm
- Product Net Depth: 65 mm
- Product Main Type: T1-T2
- Product Name: Surge Protective Devices
- Standards: IEC 61643-1 / EN 61643-11
- Suitable For: To protect the systems against the transient overvoltage (lightning)
- Short-Circuit Protective Devices: Curve B Breakers ≤ 125 A Curve C Breakers ≤ 125 A gL Type Fuses ≤ 125 A gG Type Fuses ≤ 125 A
- Number of Protected Poles: 1
- Version: Fix
- EAN: 3660308510884
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363090
- Type of Low Voltage Distribution System: TT TN-C TN-S
- Nominal AC Voltage of the System (U<sub>o</sub>): 230 / 400 V
- Arrester Class: I II
- Discharge Current (<sub></sub>): Nominal 25 kA Maximum 60 kA Total 25 kA
- Impulse Current: I(Imp) 10 / 350 µs 25 kA I(total) 10 / 350 µs - kA
- Maximum Continuous Operating Voltage (U<sub>c</sub>): (L-PE) 255 V (L-L) 255 V (L-N) 255 V (N-PE) - V
- Voltage Protection Level ( Up): (L-N) 1.5 kV (N-PE) - kV (L-PE) 1.5 kV
- Short Circuit Withstand Icc: 50 kA
- Follow Current Extinction Capacity If (I fi): 15 kA
- Temporary Overvoltage Test Value (U<sub>T</sub>): 337 V
- Auxiliary Circuit Load: Minimum 12Vdc - 10mA Maximum 250Vac - 1A
- Width in Number of Modular Spacings: 2
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 117 mm
- Package Level 1 Length: 41 mm
- Package Level 1 Height: 82 mm
- Package Level 1 Gross Weight: 270 g
- Package Level 1 EAN: 3660308510884
- Data Sheet, Technical Information: 2CTC431002D1701
- Declaration of Conformity - CE: 2CTC436004G1701
- Instructions and Manuals: 2CTC431007M1701
- UL Certificate: N
- ETIM 4: EC001457 - Combined arrester for power supply systems
- ETIM 5: EC001457 - Combined arrester for power supply systems
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OVR-T1-2-25-255-TS . Santa Clara Systems carries 36,972 items from ABB.
