PSTX300-600-70

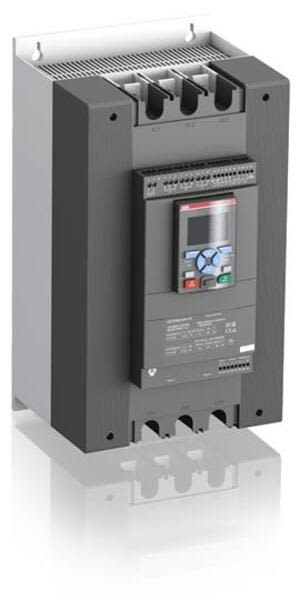

ABB - Softstarter | 1SFA898114R7000

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Softstarter | 1SFA898114R7000
Product ID: 1SFA898114R7000
Extended Product Type: 1SFA898114R7000
Product Net Weight: 12.70 kg
Product Net Width: 258.000 mm
Product Net Height: 470.000 mm
Product Net Depth: 276.000 mm
Product Main Type: PSTX300
Ambient Air Temperature: Storage -40 … +70 °C Operation -25 … +60 °C
Terminal Type: Main Circuit: Bars
Rated Frequency (f): Main Circuit 50/60 Hz
Tightening Torque: Main Circuit 25 N·m
Connecting Capacity Main Circuit: Hole Diameter 10.2 mm
Rated Control Circuit Voltage (U<sub>c</sub>): DC Operation 24 V
Rated Control Supply Voltage (U<sub>s</sub>): 100 … 250 V
Connecting Capacity Control Circuit: Rigid 1x2.5 mm²
EAN: 7320500501474
Category Related Guides: <a href='javascript:openInteractiveImage("http://search-ext.abb.com/library/Download.aspx?DocumentID=9AKK106713A1417&LanguageCode=pt&DocumentPartId=&Action=Launch","pdf")'>ABB improves mining industry efficiency - Softstarter PSTX</a> (9AKK106713A1417)
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85371099
Package Level 1 Length: 570 mm
Package Level 1 Height: 370 mm
Package Level 1 Gross Weight: 14.30 kg
Package Level 1 EAN: 7320500501474
Package Level 1 Units: 1 piece
Package Level 1 Width: 360 mm
Rated Operational Power - In-Line Connection (Pe): at 400 V 160 kW
Rated Operational Power - Inside Delta Connection: at 400 V 257 kW
Rated Operational Current - Inside Delta Connection: 515 A
Service Factor Percentage: 100 %

Overload Protection: Build-in electronic overload protection
Integrated Electronic Overload: Yes
Adjustable Rated Motor Current Ie: 30…100 %
Starting Capacity at Maximum Rated Current Ie: 4xIe for 10s
Ramp Time: 1 … 120 second(s)
Initial Voltage During Start: 30 … 70 %
Step Down Voltage Special Ramp: 100 … 10 %
Current Limit Function: 1.5 … 7.5 xle
Switch for Inside Delta Connection: Yes
Run Signal Relay: Yes
By-pass Signal Relay: Yes
Fault Signal Relay: Yes
Overload Signal Relay: Yes
Analog Outputs: 0…10 V, 0…20 mA, 4…20 mA
Signal indication ready to start/standby ON (LED): Green
Signal indication running R (LED): Green
Signal indication protection (LED): Yellow
Signal indication fault (LED): Red
Communication: Built in Modbus interface, Anybus, FieldBusPlug (with adapter).
Connecting Capacity Supply Circuit: Rigid 1x2.5 mm²
Rated Operational Voltage: Main Circuit 208 … 600 V AC
RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
Instructions and Manuals: 1SFC132081M0201
Data Sheet, Technical Information: 1SFC132009C0201
Declaration of Conformity - CE: 2CMT005209
RoHS Information: 2CMT005210
ETIM 4: EC002572 - Electronic motor control and protection device
ETIM 5: EC002572 - Electronic motor control and protection device
Object Classification Code: Q
