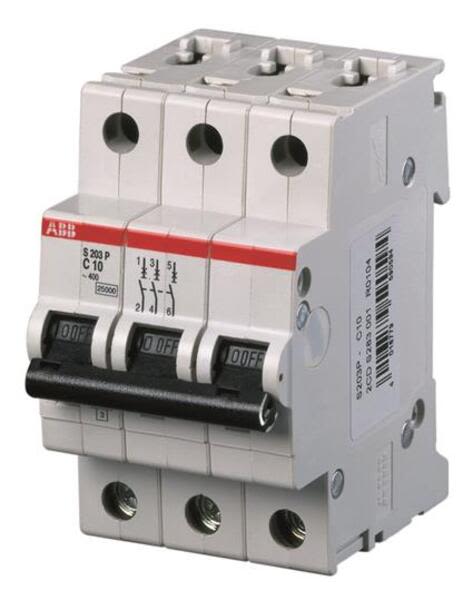

S203P-Z10

ABB - Miniature Circuit Breaker | S203P-Z10

Current response time:

By 5AM PT on Monday

Emergency?

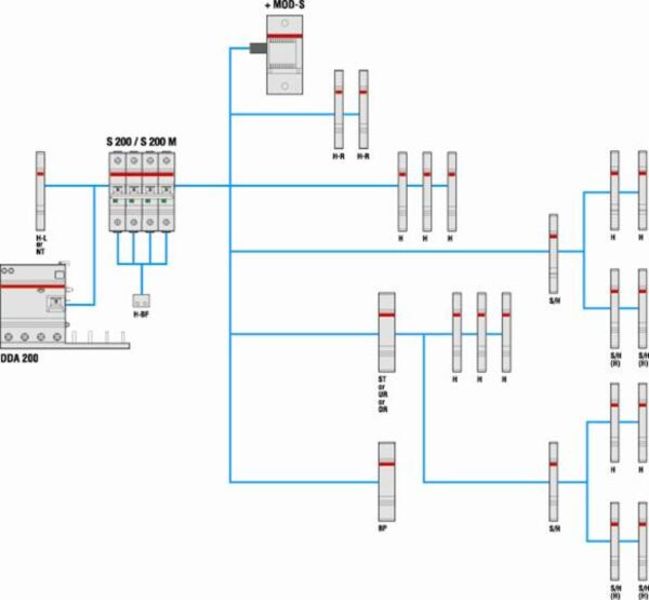

Description: Miniature Circuit Breaker | S203P-Z10
Product ID: 2CDS283001R0428
Extended Product Type: 2CDS283001R0428
Product Net Weight: 0.42 kg
Product Net Width: 52.5 mm
Product Net Height: 88 mm
Product Net Depth: 69 mm
Degree of Protection: IP20
Ambient Air Temperature: Operation -25 ... +55 °C Storage -40 ... +70 °C
Standards: IEC/EN 60898-1 IEC/EN 60947-2 UL 1077 CSA 22.2 No. 235
Rated Impulse Withstand Voltage (Uimp): 4 kV (6.2 kV @ sea level) kV (5.0 kV @ 2000 m) kV
Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 440 V
Number of Poles: 3
Terminal Type: Screw Terminals
Rated Current (In): 10 A
Rated Frequency (f): 50 Hz 60 Hz
Power Loss: 6.3 W at Rated Operating Conditions per Pole 2.1 W
Mounting on DIN Rail: TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
eClass: 7.0 27141901
Tightening Torque: 2.8 N·m
Actuator Type: Insulation group II, black, sealable
Mounting Position: Any
Tripping Characteristic: Z
Connecting Capacity: Busbar 10 / 10 mm² Flexible with Ferrule 0.75 ... 16 mm² Flexible 0.75 ... 16 mm² Rigid 0.75 ... 25 mm² Stranded 0.75 ... 25 mm²
Maximum Operating Voltage UL/CSA: 480Y / 277 V AC
Contact Position Indication: Red ON / Green OFF
Tightening Torque UL/CSA: 25 in·lb
Overvoltage Category: III
Environmental Conditions: 28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 %
Housing Material: Insulation Group II, RAL 7035
Electrical Endurance: 20000 AC cycle
Mechanical Endurance: 20000 cycle
Connecting Capacity UL/CSA: Busbar 18-8 AWG Conductor 18-4 AWG

Operational Voltage: Maximum (Incl. Tolerance) 440 V AC Minimum 12 V AC / 12 V DC
Dielectric Test Voltage: 50 / 60 Hz, 1 min: 2 kV
Energy Limiting Class: 3
Screw Terminal Type: Failsafe Bi-directional Cylinder-lift Terminal
Interrupting Rating acc. to UL1077: 10 kA
EAN: 4016779593816
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85362010
Package Level 1 Width: 92 mm
Package Level 1 Length: 58 mm
Package Level 1 Height: 80 mm
Package Level 1 Gross Weight: 0.435 kg
Package Level 1 EAN: 4016779597418
Package Level 1 Units: 1 piece
Resistance to Shock acc. to IEC 60068-2-27: 25g / 2 shocks / 13 ms
Resistance to Vibrations acc. to IEC 60068-2-6: 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
Rated Operational Voltage: acc. to IEC 60947-2 400 V AC
Rated Short-Circuit Capacity (Icn): 25 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu): 25 kA 25 kA (DC) kA
Rated Service Short-Circuit Breaking Capacity (Ics): 12.5 kA
Pollution Degree: 3
Remarks: IP40 in enclosure with cover
Recommended Screw Driver: Pozidriv 2
Instructions and Manuals: 2CSC400002D0208
Data Sheet, Technical Information: 2CSC400002D0208
Declaration of Conformity - CE: 2CDK403003D0402
RoHS Information: 2CDK400003K0201
ETIM 4: EC000042 - Miniature circuit breaker (MCB)
ETIM 5: EC000042 - Miniature circuit breaker (MCB)
ETIM 6: EC000042 - Miniature circuit breaker (MCB)
UNSPSC: 39121614
Object Classification Code: F
