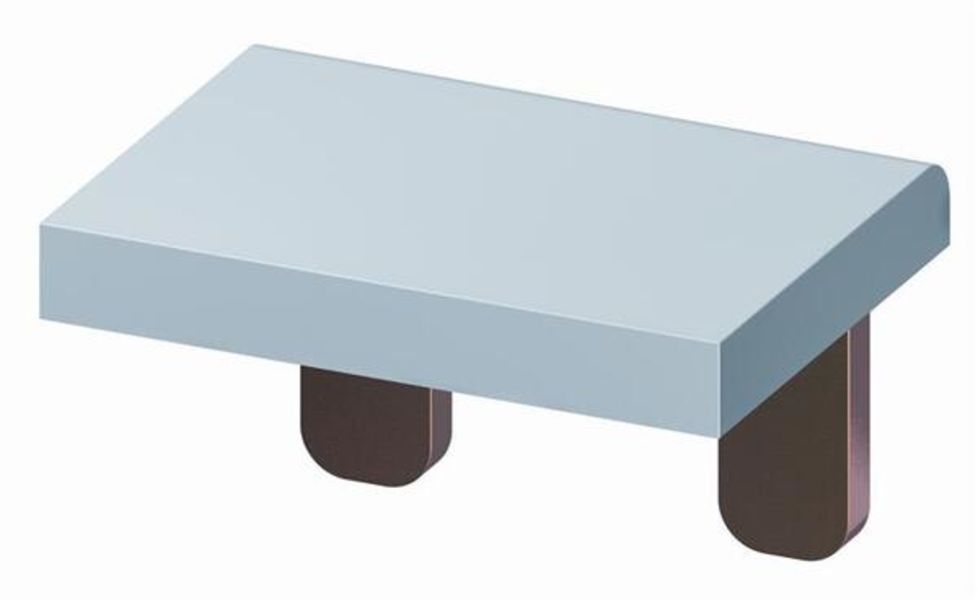

- Description: S802-LINK125 Pole connector up to 125A
- Product ID: 2CCS800900R0562
- Extended Product Type: 2CCS800900R0562
- Product Net Weight: 0.15 kg
- Product Net Width: 53.7 mm
- Product Net Height: 49.5 mm
- Product Net Depth: 69.7 mm
- Product Main Type: Accessories for HPMCB S800
- Product Name: Accessories for High Performance Circuit Breakers HPCBs
- Degree of Protection: acc. to IEC 60529 IP20
- Ambient Air Temperature: Operation -25 ... +60 C Storage -40 ... +70 C
- Standards: IEC 60439-2
- Rated Insulation Voltage (U<sub>i</sub>): 1200 V DC
- Terminal Type: Screw Terminals
- Rated Frequency (f): 50 / 60 Hz
- Tightening Torque: 3.5 N·m
- Product Net Length: 53 mm
- EAN: 7612271419103
- Minimum Order Quantity: 2 piece
- Customs Tariff Number: 85389030
- Package Level 1 Units: 2 piece
- Package Level 1 Width: 105 mm
- Package Level 1 Height: 99 mm
- Package Level 1 Length: 60 mm
- Package Level 1 Gross Weight: 0.17 kg
- Package Level 1 EAN: 7612271419103
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Rated Operational Current (I<sub>e</sub>): 125 A
- Recommended Screw Driver: Pozidriv 2
- Data Sheet, Technical Information: 2CCC413003C0203
- Declaration of Conformity - CE: 2CCC413029M0401
- RoHS Information: 2CCC413008D0204
- ETIM 4: EC001522 - Busbar
- ETIM 5: EC001522 - Busbar
- ETIM 6: EC001522 - Busbar
- Object Classification Code: F
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on S802-LINK125 . Santa Clara Systems carries 36,836 items from ABB.
- The Pole Connector S802-Link125 Can Be Used Up To 125 A. It Was Developed For Photovoltaics And Can Be Used Up To 1200v Dc.
