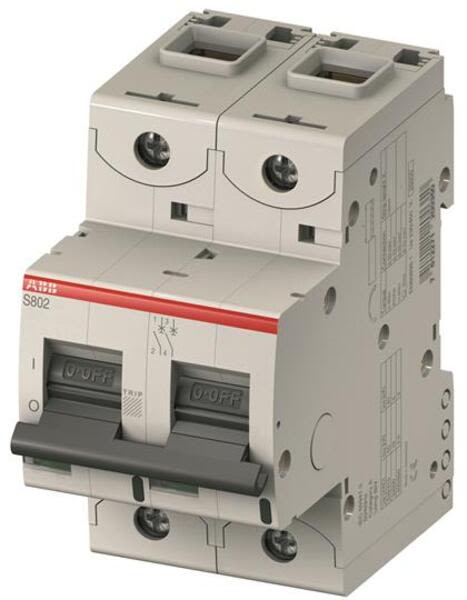

- Description: S802C-D63 High Performance Circuit Breaker
- Product ID: 2CCS882001R0631
- Extended Product Type: 2CCS882001R0631
- Product Net Weight: 0.49 kg
- Product Net Width: 54 mm
- Product Net Height: 95 mm
- Product Net Depth: 82.5 mm
- Degree of Protection: acc. to IEC 60529 IP20
- Ambient Air Temperature: Operation -25 ... +60 C Storage -40 ... +70 C
- Standards: IEC/EN 60947-2 IEC/EN 60898-1
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 8 kV
- Rated Insulation Voltage (U<sub>i</sub>): 500 V AC
- Number of Poles: 2
- Terminal Type: Screw Terminals
- Rated Current (I<sub>n</sub>): 63 A
- Rated Frequency (f): 50 / 60 Hz
- Power Loss: at Rated Operating Conditions per Pole 6.4 W
- Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Tightening Torque: 3.5 N·m 31 in·lb
- Mounting Position: Any
- Tripping Characteristic: D
- Connecting Capacity: Stranded 1 ... 50 mm Flexible 1 70 mm
- Contact Position Indication: ON / OFF / TRIP
- Overvoltage Category: IV
- Environmental Conditions: Damp Heat Cyclic acc. to IEC 60068-2-30 12+12 cycle Damp Heat Cyclic acc. to IEC 60068-2-30 55C @ 90-96% Damp Heat Cyclic acc. to IEC 60068-2-30 25C @ 90-100% Dry Heat Test B acc. to IEC 60068-2-2 16 hour @ 55 C Dry Heat Test B acc. to IEC 60068-2-2 2 hour @ 70 C
- Housing Material: Insulation group I, RAL 7035
- Electrical Endurance: 6000 cycle
- Mechanical Endurance: 4000 cycle
- Operational Voltage: Maximum 230/400 V AC Minimum 12 V AC
- Energy Limiting Class: 3
- EAN: 7612271213459
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362020
- Package Level 1 Width: 105 mm
- Package Level 1 Length: 60 mm
- Package Level 1 Height: 99 mm
- Package Level 1 Gross Weight: 0.51 kg
- Package Level 1 EAN: 7612271213459
- Package Level 1 Units: 1 piece
- Resistance to Shock acc. to IEC 60068-2-27: 5 g 30 ms
- Resistance to Vibrations acc. to IEC 60068-2-6: 2 - 13.2 Hz / 1mm<br/>13.2 - 100Hz / 0.7g<br/>with load 100% x Ie
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Rated Operational Voltage: 254/440 V
- Rated Short-Circuit Capacity (I<sub>cn</sub>): (230 / 400 V AC) 15 kA
- Rated Ultimate Short-Circuit Breaking Capacity (I<sub>cu</sub>): (240 / 415 V AC) 25 kA (254 / 440 V AC) 15 kA (125 V DC) 10 kA
- Rated Service Short-Circuit Breaking Capacity (I<sub>cs</sub>): (240 / 415 V AC) 18 kA (254 / 440 V AC) 10 kA (125 V DC) 10 kA
- Pollution Degree: 3
- Remarks: Connection from top and bottom<br/>Connecting with CU only<br/>IP40 in enclosure with cover<br/>Cage terminal with captive screw
- Recommended Screw Driver: Pozidriv 2
- Instructions and Manuals: 2CCC413016M0004
- Data Sheet, Technical Information: 2CCC413003C0203
- Declaration of Conformity - CE: 2CCC413016D060
- RoHS Information: 2CCC413008D0204
- ETIM 4: EC000042 - Miniature circuit breaker (MCB)
- ETIM 5: EC000042 - Miniature circuit breaker (MCB)
- ETIM 6: EC000042 - Miniature circuit breaker (MCB)
- Object Classification Code: F
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on S802C-D63 . Santa Clara Systems carries 36,836 items from ABB.
- Commercial And Industrial Applications. It Has Numerous Of Approvals
- Therefore It Can Be Used Worldwide. The Extensive Range Of Accessory Makes The Use Of S802c-D63 More Comfortable. Due To The Fast Arc Extinction Of S802c-D63 Your Application Will Be Secured.
- The S802c-D63 Is A 2-Pole High Performance Circuit Breaker With D-Dharacteristic
- With Cage Terminal And A Rated Current Of 63 A. It Is A Current Limiting Device With A Maximum Breaking Capacity Of 25ka At 240/415v. It Can Be Used For Voltages Up To 254/440v And In Dc As Well. It Has Two Different Tripping Mechanisms
- The Thermal Tripping Mechanism For Overload Protection And The Electromechanic Tripping Mechanism For Short Circuit Protection. The S802c-D63 Complies With Iec/en 60898-1 And Iec/en 60947-2 And Allows The Use For Residential
