Out of Stock

S802S-UCB10

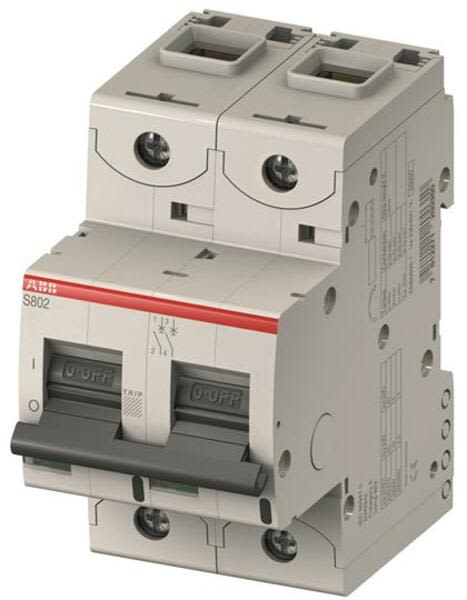

ABB - High Performance Circuit Breaker - S800S - Tripping characteristic B - Number of poles 2 - Rated operational current 10A

Current response time:

7 Minutes 7 Seconds

Description: High Performance Circuit Breaker - S800S - Tripping characteristic B - Number of poles 2 - Rated operational current 10A
Product ID: 2CCS862001R1105
Extended Product Type: 2CCS862001R1105
Product Net Weight: 0.49 kg
Product Net Width: 54 mm
Product Net Height: 95 mm
Product Net Depth: 82.5 mm
Ambient Air Temperature: Operation -25 ... +60 °C Storage -40 ... +70 °C
Standards: IEC/EN 60947-2
Number of Poles: 2
Rated Current (In): 10 A
Power Loss: 3 W
Tripping Characteristic: UC-B
Connecting Capacity: Flexible 1 ... 50 mm² Flexible Stranded 1 …70 mm²
Contact Position Indication: ON / OFF / TRIP
EAN: 7612271202965
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85362020
Package Level 1 Width: 105 mm

Package Level 1 Length: 60 mm
Package Level 1 Height: 99 mm
Package Level 1 Gross Weight: 0.51 kg
Package Level 1 EAN: 7612271202965
Package Level 2 Units: 1
Package Level 1 Units: 1 piece
RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
Rated Operational Voltage: 500 V DC
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (500 V DC) 50 kA
Rated Service Short-Circuit Breaking Capacity (Ics): (500 V DC) 50 kA
Instructions and Manuals: 2CCC413016M0002
Data Sheet, Technical Information: 2CCC413003C0203
Declaration of Conformity - CE: 2CCC413016D0601
RoHS Information: 2CCC413008D0201
ETIM 4: EC000042 - Miniature circuit breaker (MCB)
ETIM 5: EC000042 - Miniature circuit breaker (MCB)
ETIM 6: EC000042 - Miniature circuit breaker (MCB)
Object Classification Code: F

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on S802S-UCB10 . Santa Clara Systems carries 36,972 items from ABB.
