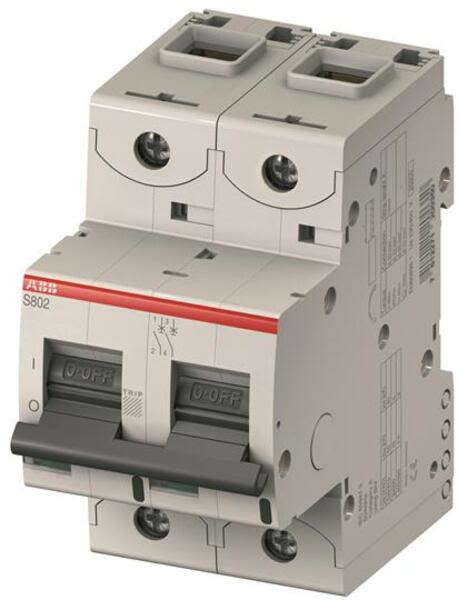

- Description: High Performance Circuit Breaker - S800U - Tripping characteristic Z - Number of poles 2 - Rated operational current 15A
- Product ID: 2CCS862017R0155
- Extended Product Type: 2CCS862017R0155
- Product Net Weight: 0.49 kg
- Product Net Width: 54 mm
- Product Net Height: 95 mm
- Product Net Depth: 82.5 mm
- Ambient Air Temperature: Operation -25 ... +60 °C Storage -40 ... +70 °C
- Standards: IEC/EN 60947-2 UL 489 CSA C22.2 No.5
- Number of Poles: 2
- Rated Current (I<sub>n</sub>): 15
- Power Loss: 2.7 W
- Tripping Characteristic: Z
- Connecting Capacity: Flexible 1 ... 50 mm² Flexible Stranded<br/>1 …70 mm²
- Contact Position Indication: ON / OFF / TRIP
- EAN: 7612271214531
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362020
- Package Level 1 Width: 105 mm
- Package Level 1 Length: 60 mm
- Package Level 1 Height: 99 mm
- Package Level 1 Gross Weight: 0.51 kg
- Package Level 1 EAN: 7612271214531
- Package Level 1 Units: 1 piece
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Rated Operational Voltage: 240 V
- Rated Ultimate Short-Circuit Breaking Capacity (I<sub>cu</sub>): (240 V AC) 50 kA
- Rated Service Short-Circuit Breaking Capacity (I<sub>cs</sub>): (240 V AC) 40 kA
- Instructions and Manuals: 2CCC413018M0402
- Data Sheet, Technical Information: 2CCC413003C0203
- Declaration of Conformity - CE: 2CCC413033D0601
- RoHS Information: 2CCC413008D0201
- ETIM 4: EC000042 - Miniature circuit breaker (MCB)
- ETIM 5: EC000042 - Miniature circuit breaker (MCB)
- ETIM 6: EC000042 - Miniature circuit breaker (MCB)
- Object Classification Code: F
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on S802U-Z15 . Santa Clara Systems carries 37,005 items from ABB.
- S802u-Z15 2 Pole Z Characteristic 15a 50ka 240/415vac High Performance Circuit Breaker Hpcb
