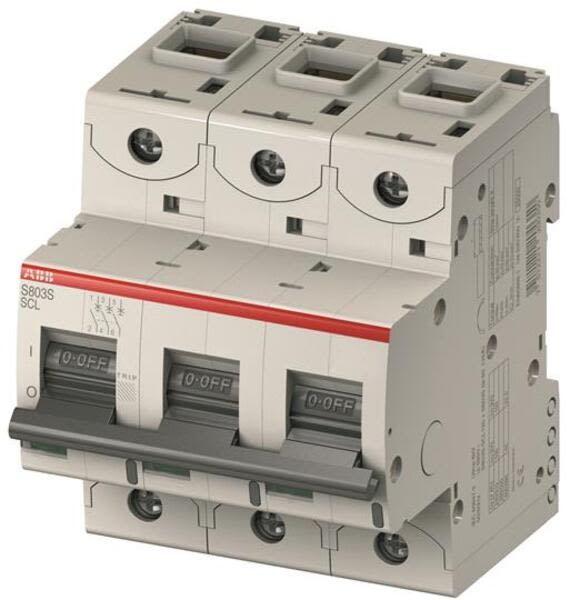

- Description: S803S-SCL32 Short-circuit current limiter
- Product ID: 2CCS800900R0291
- Extended Product Type: 2CCS800900R0291
- Product Net Weight: 0.74 kg
- Product Net Width: 81 mm
- Product Net Height: 95 mm
- Product Net Depth: 82.5 mm
- Product Main Type: Accessories for HPMCB S800
- Product Name: Accessories for High Performance Circuit Breakers HPCBs
- Degree of Protection: acc. to IEC 60529 IP20
- Ambient Air Temperature: Operation -25 ... +60 C Storage -40 ... +70 C
- Standards: IEC/EN 60947-2
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 8 kV
- Rated Insulation Voltage (U<sub>i</sub>): 690 V AC
- Number of Poles: 3
- Terminal Type: Screw Terminals
- Rated Frequency (f): 50 / 60 Hz
- Power Loss: at Rated Operating Conditions per Pole 3.2 W
- Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Tightening Torque: 3.5 N·m
- Mounting Position: Any
- Connecting Capacity: Flexible 1 ... 50 mm Flexible Stranded1 70 mm
- Housing Material: Insulation group I, RAL 7035
- EAN: 7612271208912
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362020
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 105 mm
- Package Level 1 Height: 99 mm
- Package Level 1 Length: 86 mm
- Package Level 1 Gross Weight: 0.77 kg
- Package Level 1 EAN: 7612271208912
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Rated Operational Current (I<sub>e</sub>): 32 A
- Rated Operational Voltage: 690 V AC
- Rated Service Short-Circuit Breaking Capacity (I<sub>cs</sub>): (240 / 415 V AC) 100 kA (254 / 440 V AC) 100 kA (289 / 500 V AC) 65 kA (400 / 690 V AC) 50 kA
- Rated Ultimate Short-Circuit Breaking Capacity (I<sub>cu</sub>): (240 / 415 V AC) 100 kA (254 / 440 V AC) 100 kA (289 / 500 V AC) 65 kA (400 / 690 V AC) 50 kA
- Recommended Screw Driver: Pozidriv 2
- Data Sheet, Technical Information: 2CCC413003C0203
- Declaration of Conformity - CE: 2CCC413013D0601
- RoHS Information: 2CCC413008D0204
- ETIM 4: EC000239 - Current limiter
- ETIM 5: EC000239 - Current limiter
- ETIM 6: EC000239 - Current limiter
- Object Classification Code: F
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on S803S-SCL32 . Santa Clara Systems carries 36,687 items from ABB.
- You Have To Switch The S803s-Scl32 At First To Off And Then To On Again.<Br/>only Approved Combinations Between S803s-Scl32 And S800 Or Manual Motor Starter Are Allowed To Be Used.
- The S803s-Scl32 Is A 3-Pole Short-Circuit Current Limiter For 32a With Cage Terminal. It Can Be Used Together With S800 High Performance Circuit Breaker Or Manual Motor Starter. In Combination It Ensures Reliable Switch-Off Of Short-Circuits Currents Up To 100ka At 440v Ac. For Applications At 690v Ac The Combination Of S803s-Scl And S800 Or Manual Motor Starter Ensures A Protection Up To 50ka. The S803s-Scl32 Has A Lever
- So In Case Of A Fault You Have To Reset It. It Means In Case Of Trip
