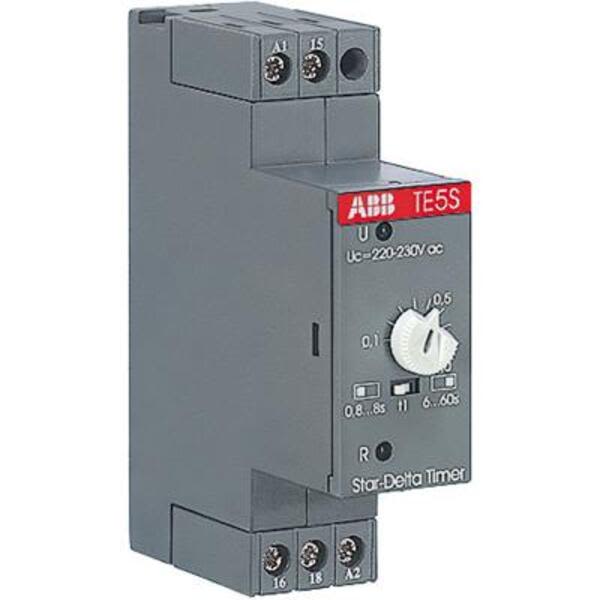

Description: Electronic Timer | TE5S-120
Product ID: 1SBN020010R1002
Extended Product Type: 1SBN020010R1002
Product Net Weight: 0.080 kg
Product Net Width: 23 mm
Product Net Height: 85 mm
Product Net Depth: 75 mm
Product Main Type: Accessories for Block Contactors
Product Name: Electronic Timer
Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Rated Insulation Voltage (Ui): acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 440 V
Terminal Type: Screw Terminals
Rated Frequency (f): Supply Circuit 50 Hz Supply Circuit 60 Hz
Suitable For: AX06 AX09 AX12 AX18 AX25 AX32 AX40 AX50 AX65 AX80 AX95 AX115 AX150 AX185 AX205
Number of Auxiliary Contacts NO: 1
Number of Auxiliary Contacts NC: 1
Mechanical Durability: 5 million
Rated Control Circuit Voltage (Uc): 110 … 120 V AC
Maximum Mechanical Switching Frequency: 720 cycles per hour
Connecting Capacity Auxiliary Circuit: Rigid Cable 1 ... 2.5 mm² Flexible with Cable End 0.75 ... 2.5 mm²
Number of Main Contacts NC: 0
Coil Consumption: Average Holding Value 50 Hz 3.5 V·A Average Holding Value 60 Hz 3.5 V·A
Rated Control Supply Voltage (Us): 110 … 120 V AC
EAN: 3471522121660
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85364900
Package Level 1 Units: 1 piece

Package Level 1 Width: 23 mm
Package Level 1 Height: 85 mm
Package Level 1 Gross Weight: 0.08 kg
Package Level 1 EAN: 3471522121660
Resistance to Shock acc. to IEC 60068-2-27: Half-sine Pulse for 11 ms, Shock Direction: A 20 m/s² Half-sine Pulse for 11 ms, Shock Direction: B 15 m/s² Half-sine Pulse for 11 ms, Shock Direction: C 20 m/s²
RoHS Status: No declaration needed
Connecting terminals (delivered in open position) Built-in auxiliary terminals: (+,-) pozidriv 1 screw
Connecting terminals (delivered in open position) Coils terminals: (+,-) pozidriv 1 screw
Conventional Free-air Thermal Current (Ith): acc. to IEC 60947-5-1, q = 40 °C 10.0 A
IIT Publishing Status: Level 0 - Information enabled
Mounted Auxiliary Contacts: 1 NO, 1 NC
Rated Frequency Limits: 48 … 63 Hz
Rated Operational Current AC-15 (Ie): (220 / 240 V) 4 A (24 / 127 V) 5 A (220 / 240 V) 4 A (24 / 127 V) 5 A (220 / 240 V) 4 A
Rated Operational Current DC-13 (Ie): (24 V) 4 A
Rated Operational Voltage: Main Circuit 240 V
Time Range: Direct 0.8...8 s or 6...60 s
cUL Certificate: UL_E191693
Data Sheet, Technical Information: 1SBC100122C0202_Ch04
Declaration of Conformity - CE: 1SBD250815U1000
RoHS Information: 1SBC101061D0201
UL Certificate: UL_E191693
E-nummer: 4033102
ETIM 4: EC002498 - Accessories for low-voltage switch technology
ETIM 5: EC002498 - Accessories for low-voltage switch technology
ETIM 6: EC002498 - Accessories for low-voltage switch technology
Object Classification Code: K
UNSPSC: 39121500
