VAS16EM-20M

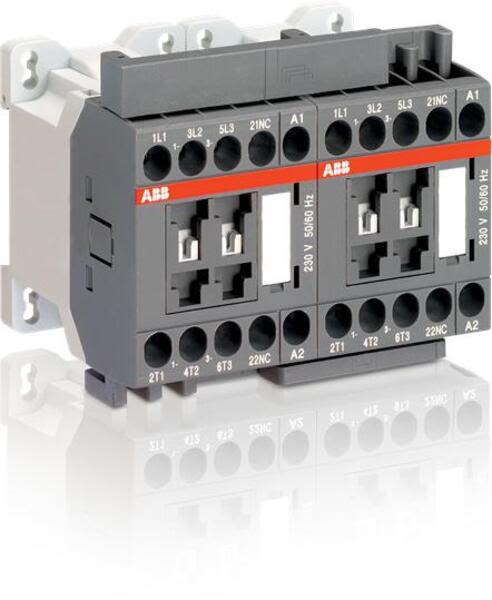

ABB - VAS16EM-20M Block Reversing Contactors

Current response time:

By 5AM PT on Monday

Emergency?

Description: VAS16EM-20M Block Reversing Contactors
Product ID: 1SBK123600M2000
Extended Product Type: 1SBK123600M2000
Product Net Weight: 0.480 kg
Product Net Width: 90 mm
Product Net Height: 78.5 mm
Product Net Depth: 72.5 mm
Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
Ambient Air Temperature: Close to Contactor for Storage -60 ... +80 °C Close to Contactor Fitted with Thermal O/L Relay -25 ... +60 °C Close to Contactor without Thermal O/L Relay -40 ... +70 °C
Standards: IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14
Rated Impulse Withstand Voltage (Uimp): 6 kV
Rated Insulation Voltage (Ui): acc. to UL/CSA 600 V acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V
Rated Frequency (f): Main Circuit 50 / 60 Hz
Power Loss: at Rated Operating Conditions AC-3 per Pole 0.5 W
Tightening Torque: Auxiliary Circuit 1 N·m Control Circuit 1 N·m Main Circuit 1 N·m
Number of Auxiliary Contacts NO: 0
Number of Auxiliary Contacts NC: 2
Connecting Capacity Main Circuit: Flexible with Insulated Ferrule 1x 0.75 ... 1.5 mm² Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² Rigid 1/2x 0.75 ... 4 mm²
GOST Certificate: GOST_POCCCNME77B07822.pdf
Maximum Operating Altitude Permissible: 3000 m
Rated Control Circuit Voltage (Uc): 50 Hz 24 V 60 Hz 24 V
Tightening Torque UL/CSA: Auxiliary Circuit 9 in·lb Control Circuit 9 in·lb Main Circuit 9 in·lb
Connecting Capacity Auxiliary Circuit: Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² Flexible with Insulated Ferrule 1x 0.75 ... 1.5 mm² Rigid 1/2x 0.75 ... 2.5 mm²
Wire Stripping Length: Auxiliary Circuit 9 mm Control Circuit 9 mm Main Circuit 9 mm
Number of Main Contacts NO: 3
Number of Main Contacts NC: 0
Connecting Capacity Control Circuit: Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² Flexible with Insulated Ferrule 1x 0.75 ... 1.5 mm² Rigid 1/2x 0.75 ... 2.5 mm²

Horsepower Rating UL/CSA: (120 V AC) Single Phase 3/4 Hp (240 V AC) Single Phase 2 Hp (200 ... 208 V AC) Three Phase 3 Hp (220 ... 240 V AC) Three Phase 5 Hp (440 ... 480 V AC) Three Phase 10 Hp (550 ... 600 V AC) Three Phase 10 Hp
EAN: 3471523089204
Minimum Order Quantity: 18 piece
Customs Tariff Number: 85369085
Package Level 1 Width: 293 mm
Package Level 1 Height: 250 mm
Package Level 1 Length: 167 mm
Package Level 1 Gross Weight: 8.64 kg
Package Level 1 EAN: 3471523089204
Package Level 3 Units: 432 piece
Product Packing Type: Box
Package Level 1 Units: 18 piece
Resistance to Shock acc. to IEC 60068-2-27: Closed, Shock Direction: B1 10 g Closed, Shock Direction: C1 20 g Closed, Shock Direction: C2 20 g Open, Shock Direction: B1 5 g Open, Shock Direction: C1 9 g Open, Shock Direction: C2 14 g Shock Direction: A 20 g Shock Direction: B2 15 g
Resistance to Vibrations acc. to IEC 60068-2-6: 5 ... 300 Hz 3 g Closed position / 2 g Open position
Rated Operational Current AC-3 (Ie): (220 / 230 / 240 V) 60 °C 15.7 A (380 / 400 V) 60 °C 15.5 A (415 V) 60 °C 15.5 A (440 V) 60 °C 13.6 A (500 V) 60 °C 12.5 A (690 V) 60 °C 9 A
Rated Operational Voltage: Auxiliary Circuit 690 V Main Circuit 690 V
Conventional Free-air Thermal Current (Ith): acc. to IEC 60947-4-1, Open Contactors q = 40 °C 25 A acc. to IEC 60947-5-1, q = 40 °C 10 A
Contactor Starter Type: Compact Reversing Contactor with Normal Interlock
Instructions and Manuals: 1SBC101025M9701
Data Sheet, Technical Information: 1SBC100173C0201
Declaration of Conformity - CE: 1SBD250015U1000
ETIM 4: EC002498 - Accessories for low-voltage switch technology
ETIM 5: EC002498 - Accessories for low-voltage switch technology
ETIM 6: EC002498 - Accessories for low-voltage switch technology
UNSPSC: 39120000
Object Classification Code: Q

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VAS16EM-20M . Santa Clara Systems carries 36,972 items from ABB.

Vas16 Reversing Contactors With Screw Terminals Include 2 As16 Contactors Fitted With 1 N.c. Auxiliary Contact

Vas16 Reversing Contactors With Screw Terminals Include 2 As16 Contactors Fitted With 1 N.c. Auxiliary Contact
1 Vm3 Mechanical Interlock And Ber16c-3 Reversing Connection Set Including Electrical Interlocking. Up To 2 Add-On Ca3 1-Pole Auxiliary Contact Blocks Can Be Mounted Per Contactor.
