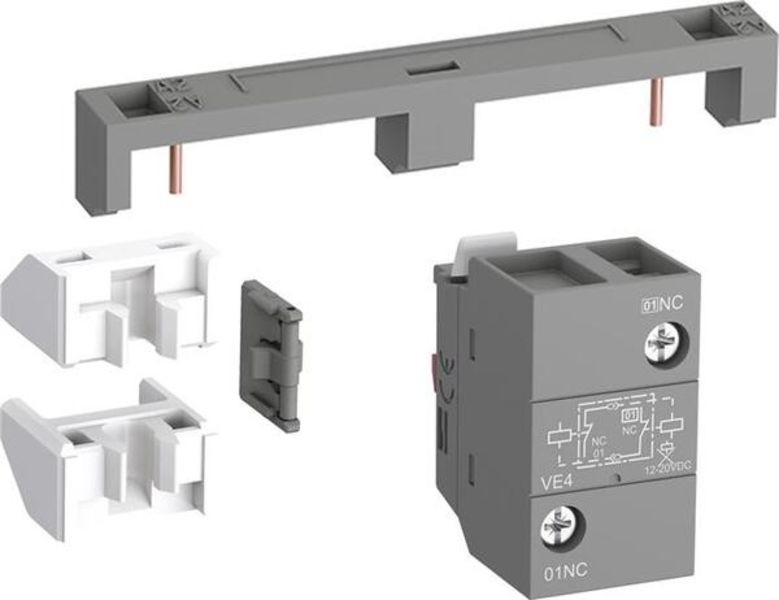

- Description: Mechanical and Electrical Interlock Unit | 1SBN030111R1000
- Product ID: 1SBN030111R1000
- Extended Product Type: 1SBN030111R1000
- Product Net Weight: 0.035 kg
- Product Main Type: Accessories for Block Contactors
- Product Name: Mechanical and Electrical Interlock Unit
- Rated Impulse Withstand Voltage (U<sub>imp</sub>): 6 kV
- Rated Insulation Voltage (U<sub>i</sub>): acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V
- Terminal Type: Screw Terminals
- Suitable For: AF09 AF12 AF16 AF26 AF30 AF38
- Tightening Torque: Auxiliary Circuit 1.2 N·m
- Number of Auxiliary Contacts NO: 1
- Number of Auxiliary Contacts NC: 1
- GOST Certificate: GOST_POCCFR.ME77.B07175.pdf
- Tightening Torque UL/CSA: Auxiliary Circuit 11 in·lb
- Maximum Mechanical Switching Frequency: 1800 cycles per hour
- Connecting Capacity Auxiliary Circuit: Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² Rigid 1/2x 1...2.5 mm²
- Wire Stripping Length: Auxiliary Circuit 10 mm
- EAN: 3471523130616
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 92 mm
- Package Level 1 Height: 46 mm
- Package Level 1 Length: 35 mm
- Package Level 1 Gross Weight: 0.035 kg
- Package Level 1 EAN: 3471523130616
- Package Level 2 Units: 132 piece
- Package Level 3 Units: 3168 piece
- Product Packing Type: Box
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2008 Q1
- Conventional Free-air Thermal Current (I<sub>th</sub>): acc. to IEC 60947-5-1, q = 40 °C 16 A
- IIT Publishing Status: Level 0 - Information enabled
- Maximum Electrical Switching Frequency: 1200 _B7HUR cycles per hour
- RoHS Date: 20090609
- CB Certificate: CB_SE_70922A2
- CCC Certificate: CCC_2013010304651497
- cUL Certificate: UL_20091124-E312527-6-1
- Data Sheet, Technical Information: 1SBC100173C0201
- Declaration of Conformity - CE: 1SBD250007U1000
- RINA Certificate: RINA_ELE084013XG
- RoHS Information: 1SBD251010E1000
- E-nummer: 3210004
- ETIM 4: EC002498 - Accessories for low-voltage switch technology
- ETIM 5: EC002498 - Accessories for low-voltage switch technology
- ETIM 6: EC002498 - Accessories for low-voltage switch technology
- UNSPSC: 39120000
